RIGOL Chapter 15 Remote Control
15-10 MSO4000/DS4000 User’s Guide
(b)
Note: If you want to remove the unwanted resource, click the resource name to
select it and click
.
If resources cannot be found automatically:
 Select the GPIB card address of the PC from the dropdown box of “GPIB0::”
and select the GPIB address set in the oscilloscope from the dropdown box
of “0::INSTR”.
 Click
to check whether the GPIB communication works
normally. If not, please follow the corresponding prompt messages to solve
the problem.

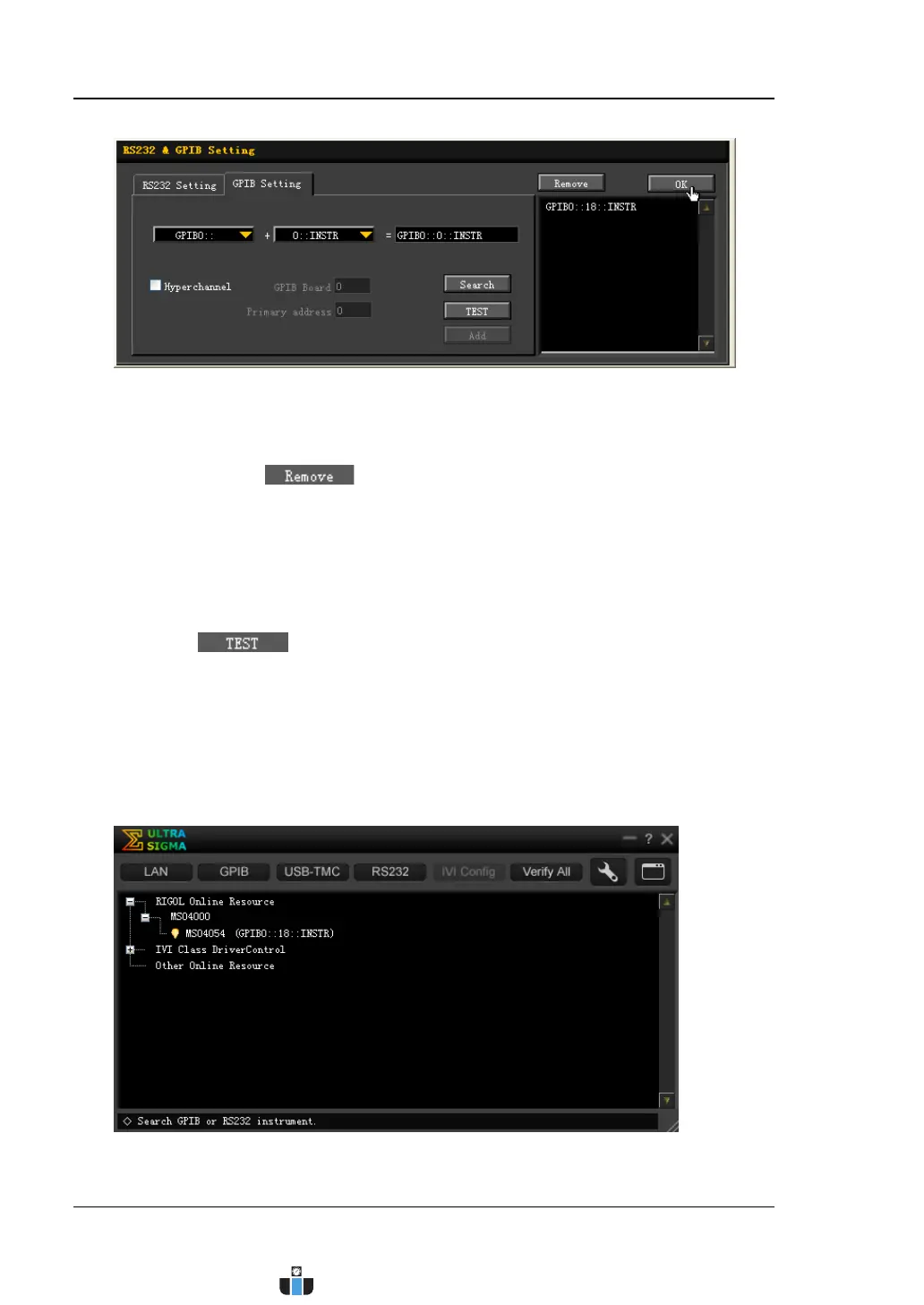

5. View device resource
The GPIB resources found will appear under the “RIGOL Online Resource”
directory, as shown in the figure below.
