Rion VA-12 User Manual

94

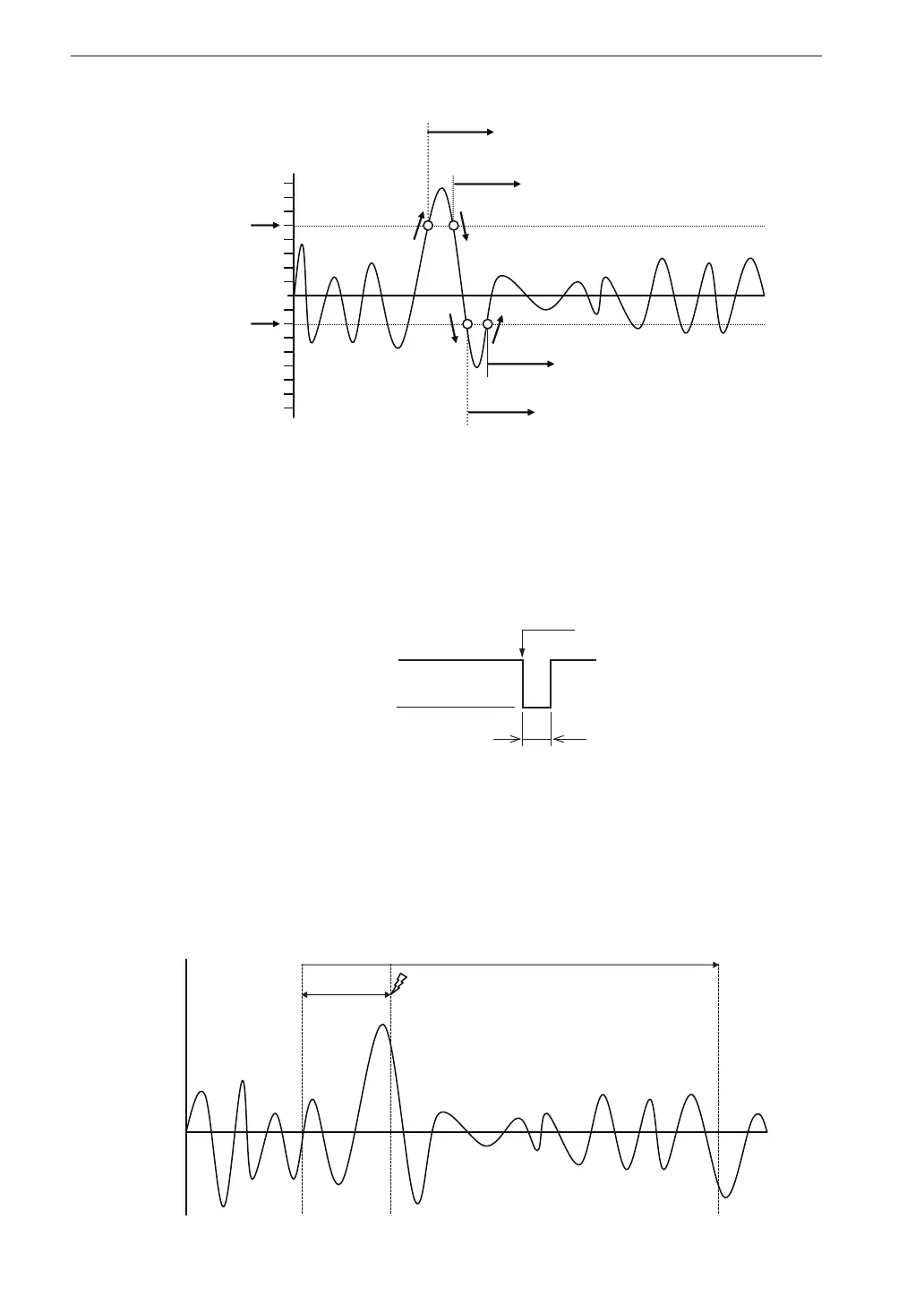

Trigger Functions
External trigger
Processing starts when an external signal is input.
When the falling edge of a TTL level signal (minimum pulse 10 µs) is
detected, or when the input is shorted, triggering occurs.
Pretrigger
When triggering occurs, processing starts and includes the data from a
point preceding the current point by 1/8 frame time.
+FS
- FS
Start (FS −2/8, Slope − setting)
Start (FS 5/8, Slope + setting)
Start (FS 5/8, Slope − setting)
Trigger
level
5/8
Trigger
level
−2/8
Start (FS −2/8, Slope + setting)
H
L
Pulse width 10 μs or more
Trigger
TTL level
Start
(Pretrigger) Trigger End
1/8 frame
time
