Measurement in Time Waveform Mode

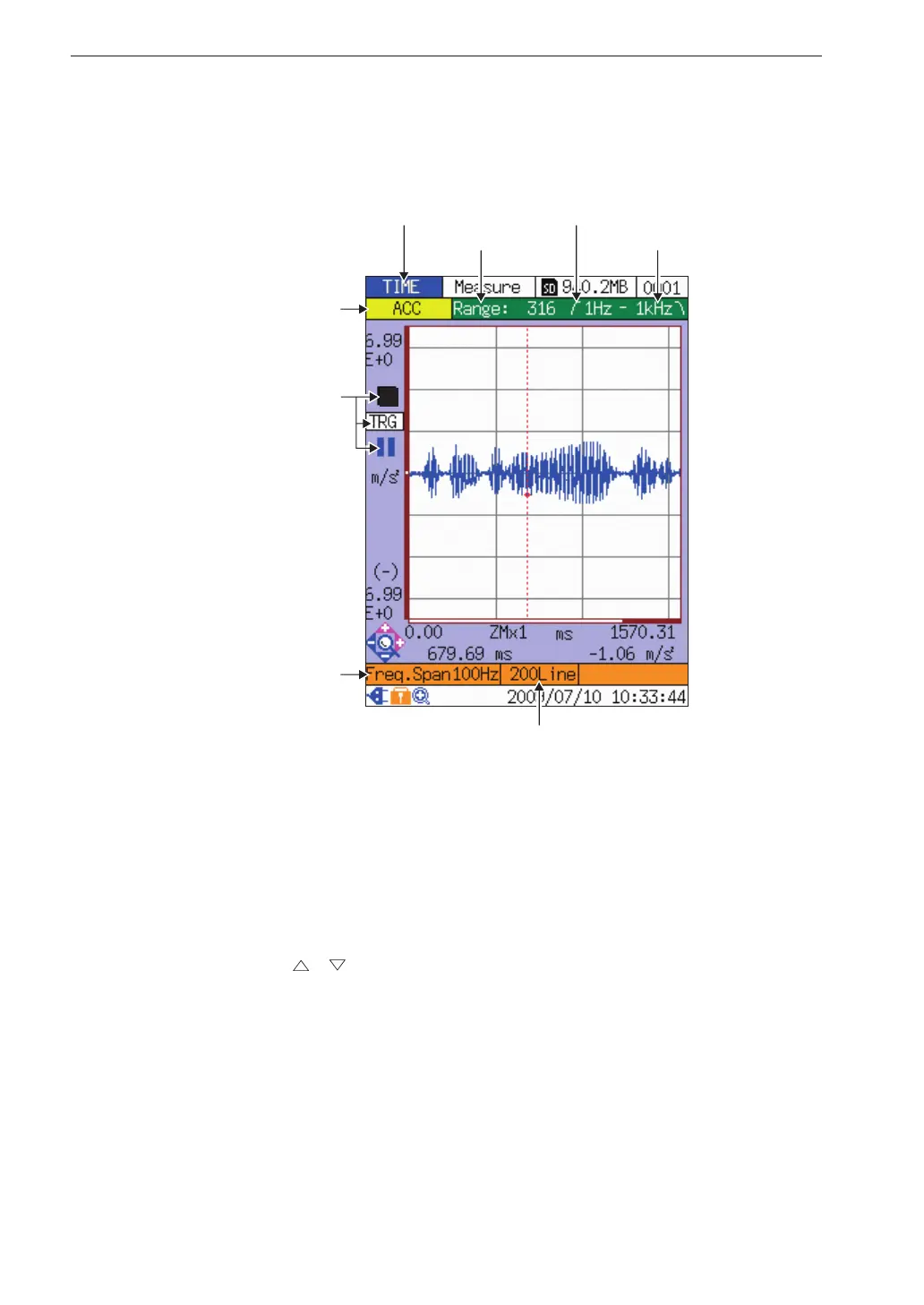

Reading the display
Measurement parameter items
Analysis function
Shows “TIME”. The function can be switched with the VM/TIME/FFT
key.
Input range
Shows the currently selected input range. The setting can be changed with
the RANGE / keys.
Available settings depend on the sensor sensitivity and the measurement
data type. For details, see the “Speci cations” section on page 153.
High-pass lter
The high-pass lter value set from the [Analog Input] menu screen is
shown here.
The following settings are available:
1 Hz, 3 Hz, 10 Hz, 1 kHz
Number of analysis lines
Analysis function
Input range
High-pass lter
Low-pass lter
Measurement
data type
Operation status
indicator
Frequency span
