Data File Structure
Data section (vibration meter data store  le)
In the case of a vibration meter data store  le, the data section has the fol-
lowing content.
Item
Header
string
Bytes Content Bytes
Block label (None)
- [Data] 6
Acceleration rms value
ACC
4
xxxx.y, zzzzzzz
•
xxxx.y is calculated value (Log)
Padded with spaces (“ ”) to
6 digits
•
zzzzzzz is calculated value (Linear)
Padded with spaces (“ ”) to
7 digits
15
Acceleration peak value PEAK 4 15
Acceleration peak crest
factor
C.F. 4 15
Velocity rms value
VEL
415
Displacement equivalent
p-p value
DISP 4 15

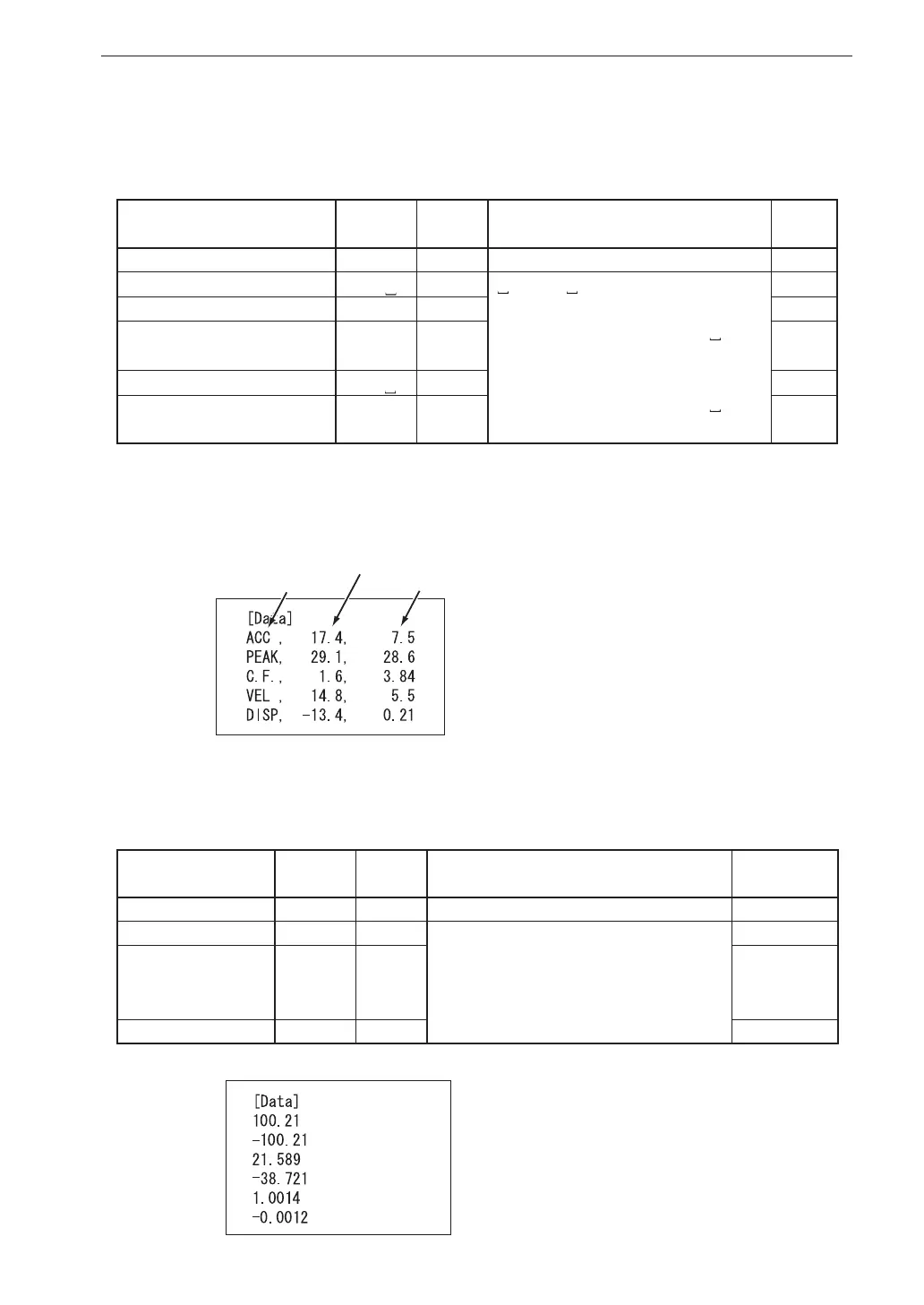

An example is shown below. From left, the values indicate measurement data
type, calculated value (Log), and calculated value (Linear).The units are the
same as those that were shown during measurement.
Measurement data type
Calculated value (Log)
Calculated value(Linear)
Data section (waveform data store  le)
In the case of a waveform data store  le, the entire waveform data for one
interval section are listed, using 1 line per data.
Item
Header
string
Bytes Content Bytes
Block label (None)
- [Data] 6
Waveform data (None)
- xxx.yyyy
• Maximum display is 5 digits
17 or more
:
:
:
:
:
:
:
:
:
:
:
:
Waveform data (None)
- 17 or more
An example is shown below.
