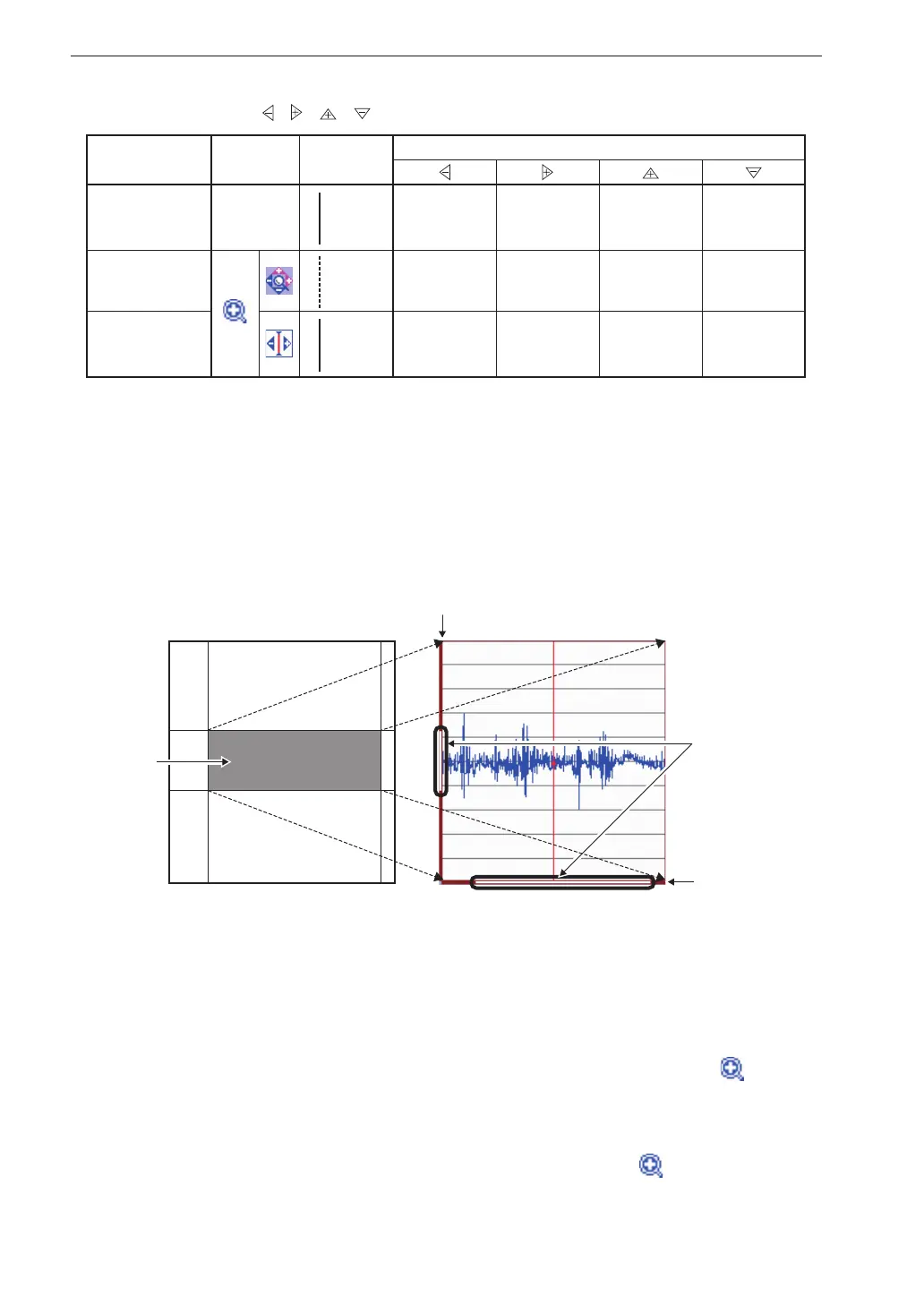

Measurement in Time Waveform Mode
Functions of / / / keys differ, according to display mode
Display mode Symbol Cursor
Key operation
Overall data
display
None
Solid
line
Move cursor
left *
Move cursor
right *
Increment
store
address (+)
Decrement
store
address (−)
Display scaling/
zoom
Broken
line
Shrink X
axis
Expand X
axis
Expand Y
axis
Shrink Y
axis
Display scaling/
move
Solid
line
Move cursor
left *
Move cursor
right *
Increment
store
address (+)
Decrement
store
address (−)
* When the cursor is near the display edge, the cursor does not move but the display
is scrolled. When the edge is reached, the cursor moves to the other edge. When
the X axis display range is not 100%, the screen also scrolls to the other edge.
Relation between overall data and display range
In display scaling mode, scroll bars are shown to indicate which section of
the overall data is currently shown on the display.
X axis zoom factor
The X axis display range when the unit is in overall data display mode, and
when the unit is in display scaling mode and the X axis zoom factor has been
set to 1 will be different.
• Overall data display mode (no magnifying glass symbol shown
on status bar)
Overall data (number of analysis lines × 2.56) are shown.
• Display scaling mode (magnifying glass symbol shown on status
bar), X axis zoom factor set to 1
Overall data are shown partially (depending on number of analysis lines).
Scroll bar
Overall data
Shows the ratio of
current display vs.
overall data
Display
range
Screen display
Scroll bar
