PACK 5040M/6050M
PACK 5040A/6050A
2- Packing in cardboard
box (LxWxH)
mm 2180x1360x1580 2480x1460x1580
3- Package in crate
(LxWxH)
mm 2200x1400x1600 2520x1500x1600
4.3. TRANSPORT AND
HANDLING
Transport, also according to the destination,
can be performed by different vehicles.

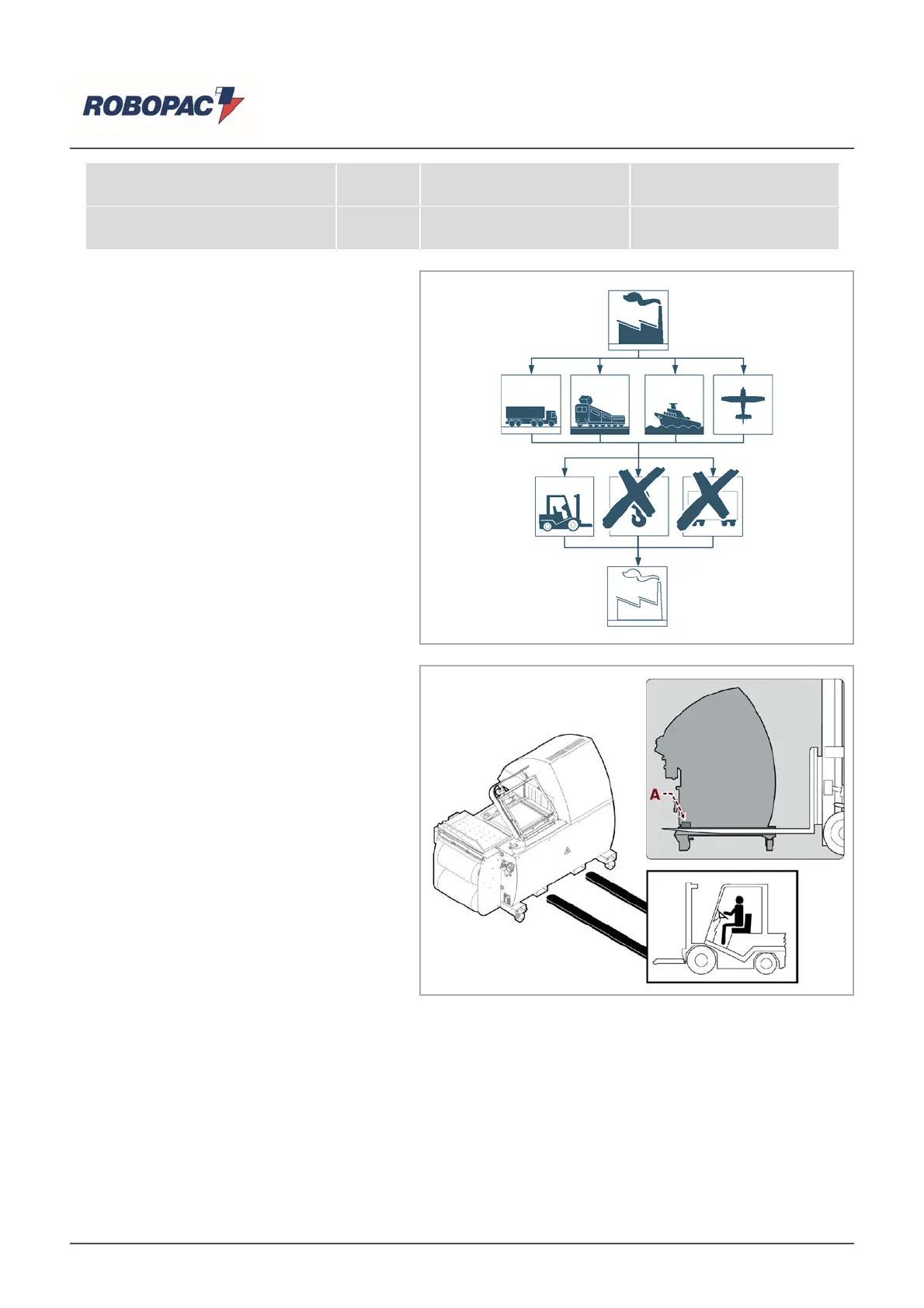

The diagram represents the most popular
solutions.
During transport, with the purpose to avoid
sudden movements, adequately anchor the
machinery to the means of transportation.
|
Important
For further transportation, recreate the initial
packaging conditions for transport and
handlin
g
.
4.4. HANDLING AND LIFTING
The machine can be moved with a forklift with
suitable load capacity by inserting the forks in
the points indicated directly on the machine.
i Caution - Warning
The handling of the machine with the use of the
fork device must be carried out ONLY with the
(A) shipping beam correctly installed.
The shipping beam is an integral part of the
forkin
g
s
y
stem.
4.5. MACHINE INSTALLATION
The installation must take place in an area that has the requisites as set out in paragraph "Characteristics of
the installation area”
If necessar
y
, determine the exact
p
osition b
y
tracin
g
the coordinates and correctl
y
p
osition.
4.5.1.UNPACK
1. Take off the cover.
2. Remove the fasteners from all com
p
onents (
p
lastic stri
p
or wooden doll
y
blocks).
3. Check to see that all the material is there, and that it is not dama
g
ed in an
y
wa
y
.
