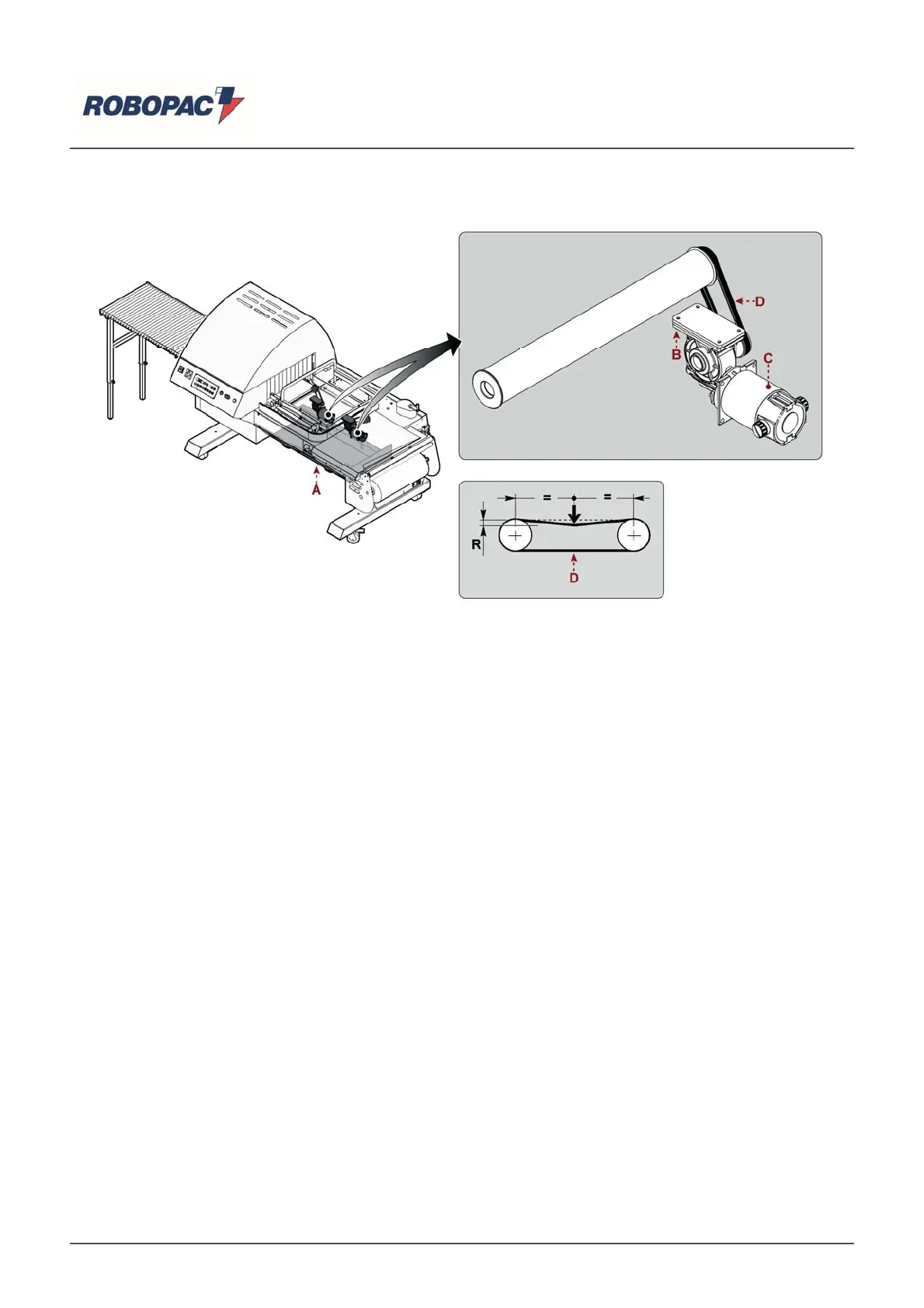

5.6. TRANSMISSION BELTS CHECK AND ADJUSTMENT
Proceed as indicated.
1. Remove the cover
g
uard (A).
2. Loosen the fastenin
g
screw
s
(B) of the
g
ear-box.
3. Move the (C)
g
ear motor to ad
j
ust the strain of th
e
(D) belt.
4.
T
i
g
hten the reducer fastenin
g
screw
s
(B) when finished.
|
Important
To check chain tension, use the method indicated in the illustration. The resulting shift (R) should be 5÷ 8
mm.
5. Re
p
eat the o
p
eration on the other transmission s
y
stem.
6. Refit
g
uard (A).
