Refer to the "Product
p
acka
g
in
g
sizes" chart to check if the
p
roduct is within the
p
ackable ran
g
e.
1. Insert the film s
p
ool on the reel roll and o
p
erate the knobs of th
e
(A) centrin
g
hubs to lock it.
2. Place the s
p
ool on the coil su
pp
orts.

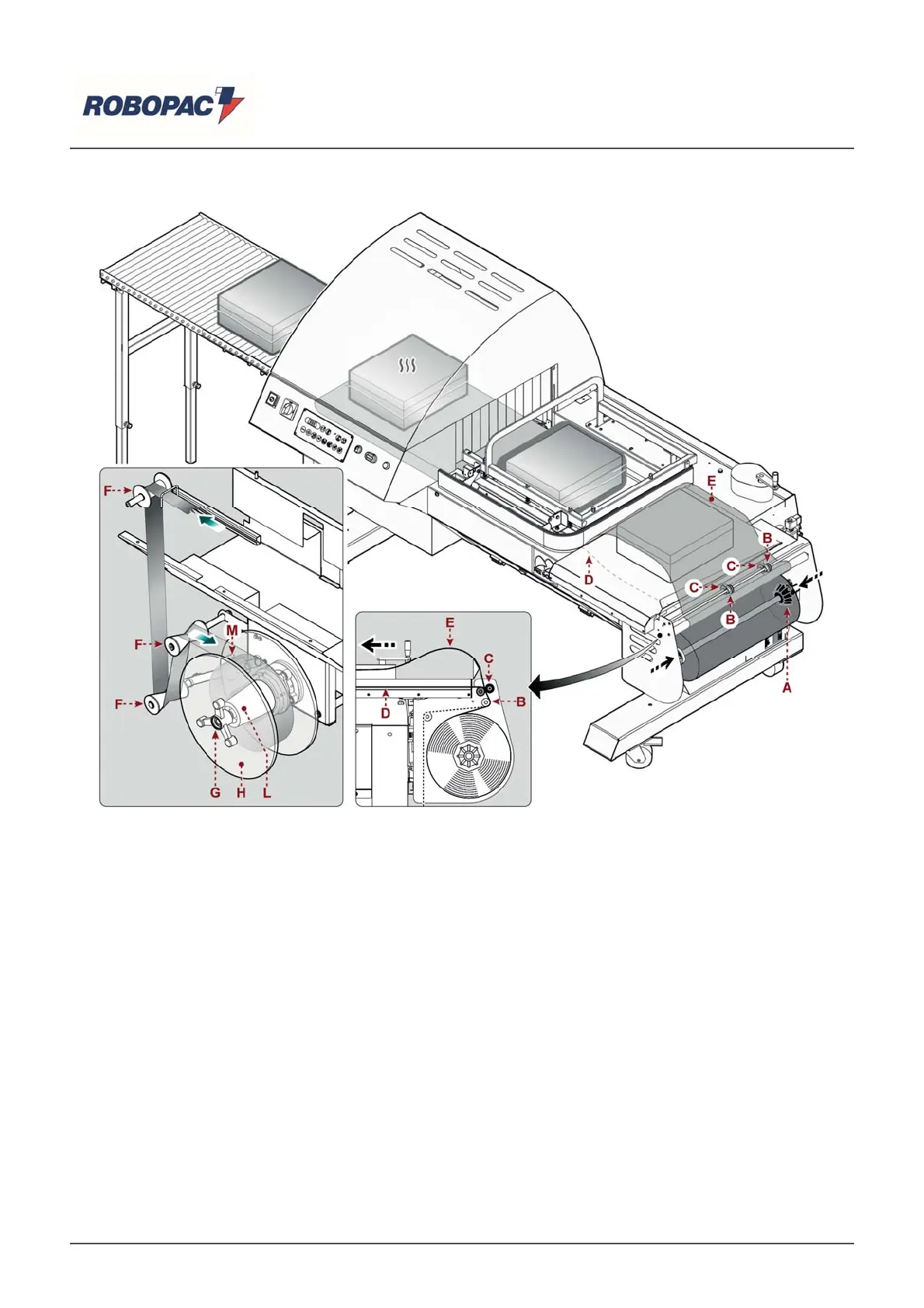

3. Unwind the coil as shown in the illustration.
Place the film throu
g
h th
e
(B) idler roller and the (C)
p
erforators.
4. Separate the two film coatings: place the lower flap (D) of the film into the slot under the surface and
the u
pp
er fla
p
(E) above the surface.
5. After the initial welding, insert the scrap formed into the appropriate compartment.
With scra
p
recover
y
p
ulle
y
(O
p
tional).
6.
T
ake the end
p
oints of the scra
p
and insert it into th
e
(F)
p
ulle
y
s.
7. Loosen the knob (G).
8. Insert the end of the scra
p
between th
e
(H) disk and the (L)
p
ulle
y
.
9.
T
i
g
hten th
e
(G) knob to lock the end
p
oints of the scra
p
.
10. Move the (M) counterwei
g
ht to chan
g
e the scra
p
wra
pp
in
g
tension.
