2F-85 & 2F-140 - Instruction Manual
3.4.4.Installing a Protector Kit on the Gripper Fingers
An optional protector kit (AGC-PRO-KIT-V4 / AGC-PRO-KIT-140) can be ordered to cover the fingers of the 2F-85/2F-140 and
therefore protect usersand assets against pinch points.
You can install them using eight (8)M3 screws.

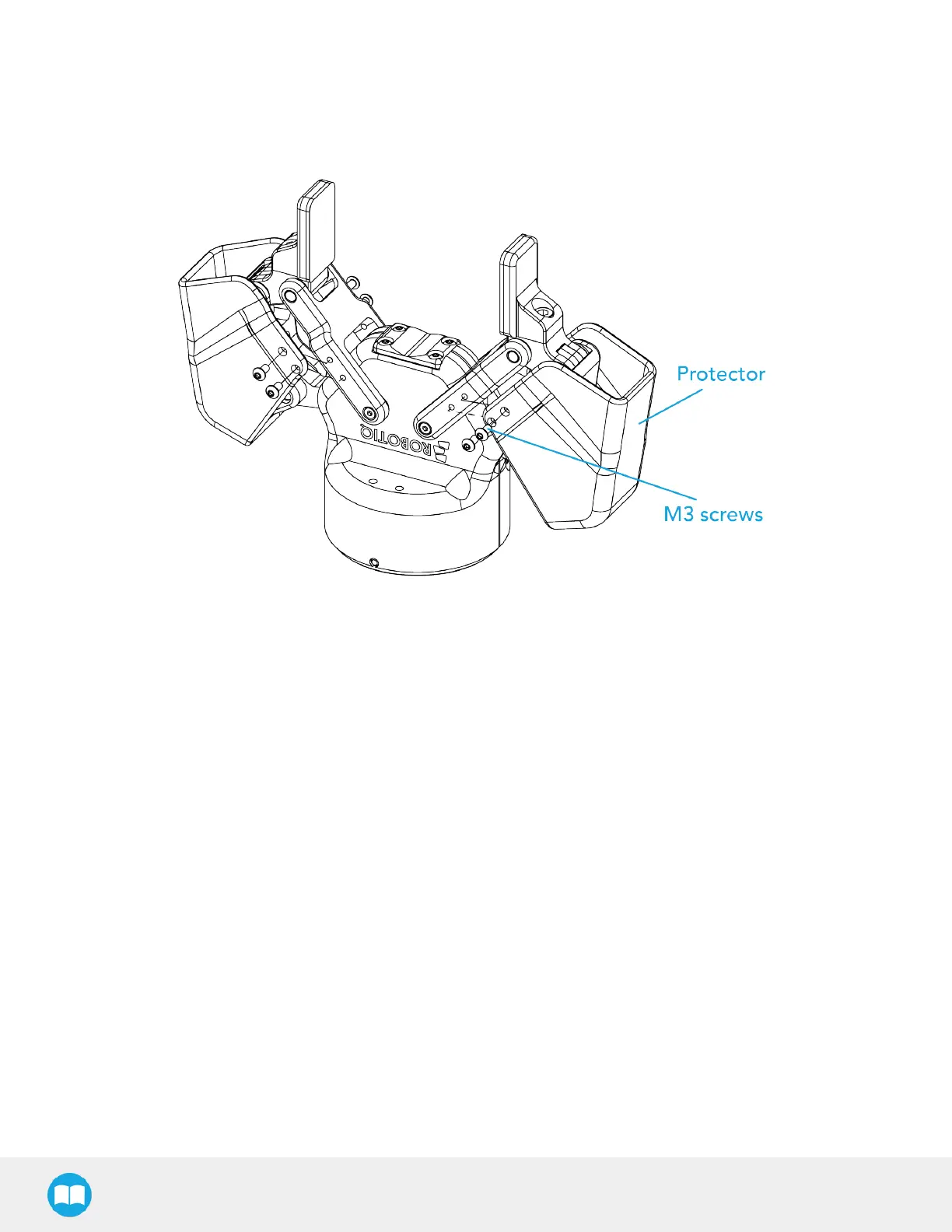

Fig. 3-9: Protector Kit Installation
30
