2F-85 & 2F-140 - Instruction Manual
3.4.3.Installing the fingertipson the Gripper
If you need to change the fingertips, follow the instructions below.
1. Align the fingertip dowel pinswith the finger dowel holes.
2. Apply low strength threadlocker on the provided screwsand secure the fingertips to the fingers.

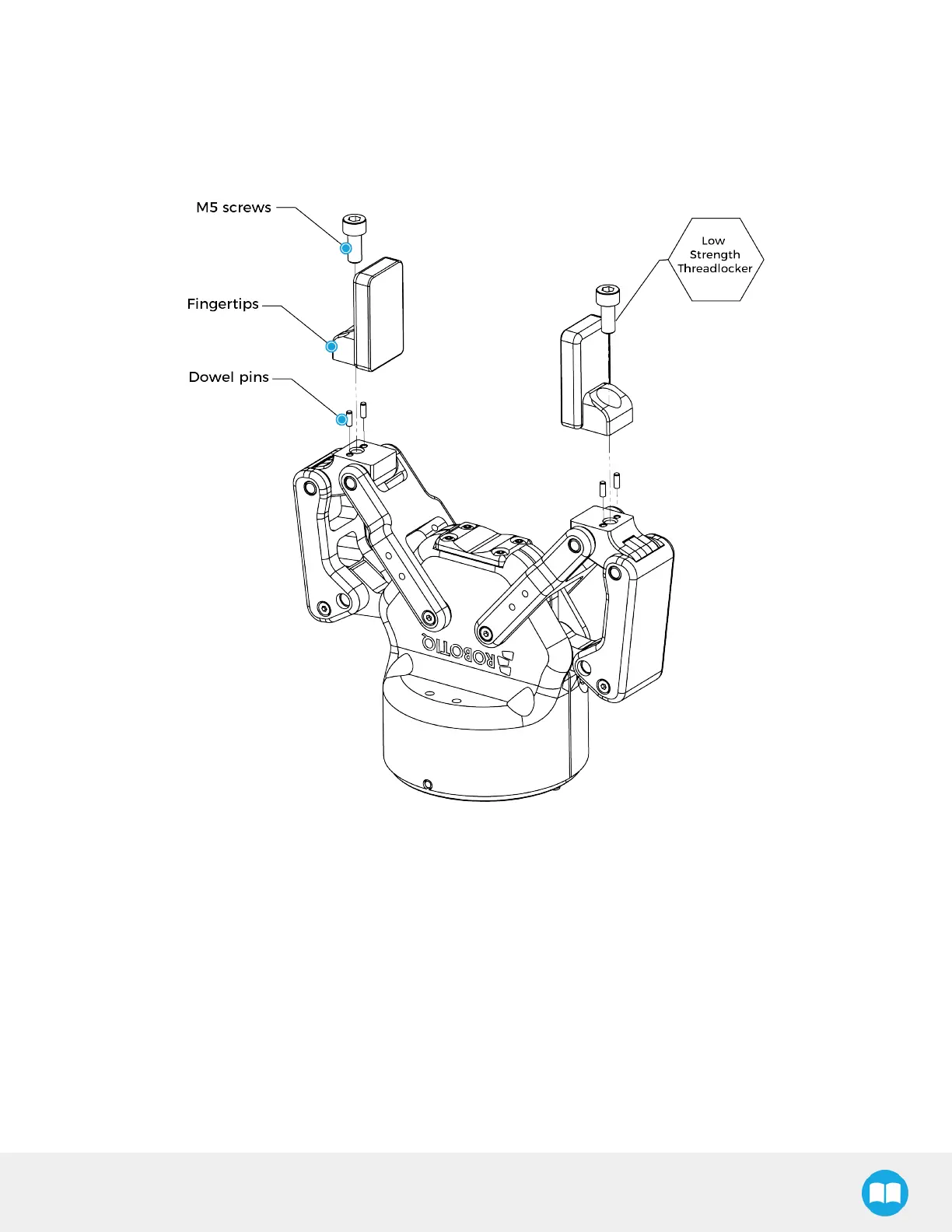

Fig. 3-8: Installing the Fingertips on the Gripper.
29
