Chapter 4 Configuration Examples
4.1 Interface
DB9 Female Connector
PIN
Debug
RS232
RS485 (2-wire)
Direction
1
Data+ (A)
-
2
RXD
R3000 Lite  Device
3
TXD
Device  R3000 Lite
4
DRXS
Device  R3000 Lite
5
GND
GND
-
6
Data- (B)
-
7
RTS
Device  R3000 Lite
8
CTS
R3000 Lite  Device
9
DTXD
R3000 Lite  Device

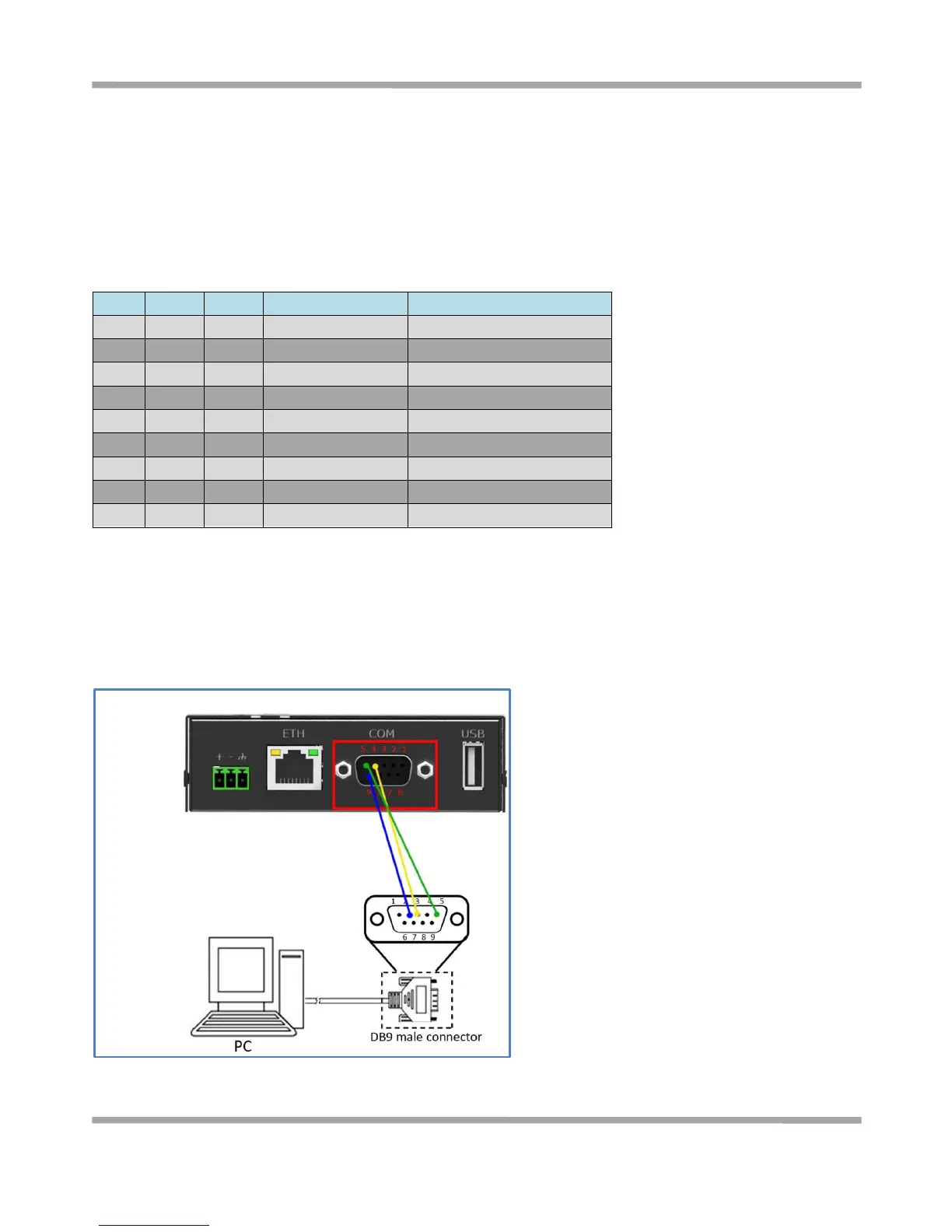

4.1.1 Console Port
User can use the console port to manage the router via CLI commands.
Please check section Introductions for CLI.
