Robustel GoRugged R3000 Lite User Manual

Robustel GoRugged R3000 Lite User Guide
RT_UG_R3000 Lite_v.1.4.1 15.11.2016 14 / 135
Confidential
 Management: Web, CLI, SNMP v1/v2/v3, SMS, RobustLink
 Serial port: TCP client/server, UDP, Modbus RTU/ASCII to Modbus TCP, Virtual COM (COM port redirector)
 RobustLink: Centralized M2M management platform
 RobustVPN: Cloud VPN Portal
Power Supply and Consumption
 Power supply interface: 3.5 mm terminal block
 Input voltage: 6 to 26 VDC
 Power consumption: Idle: 100 mA @ 12 V
Data link: 400 mA (peak) @ 12 V
Physical Characteristics
 Housing & Weight: Metal, 300 g
 Dimension (L x W x H): 105 mm x 98 mm x 29.5 mm
 Installation: 35 mm DIN rail or wall mounting or desktop
Regulatory and Type Approvals
 Approvals & Certificates: CE, R&TTE, RCM, RoHS, WEEE
 EMC:
EMI: EN 55022: 2006/A1: 2007 (CE&RE) Class B
EMS: IEC 61000-4-2 (ESD) Level 3, IEC 61000-4-3 (RS) Level 4
IEC 61000-4-4 (EFT) Level 3, IEC 61000-4-5 (Surge) Level 3
IEC 61000-4-6 (CS) Level 3, IEC 61000-4-8 (M/S) Level 4

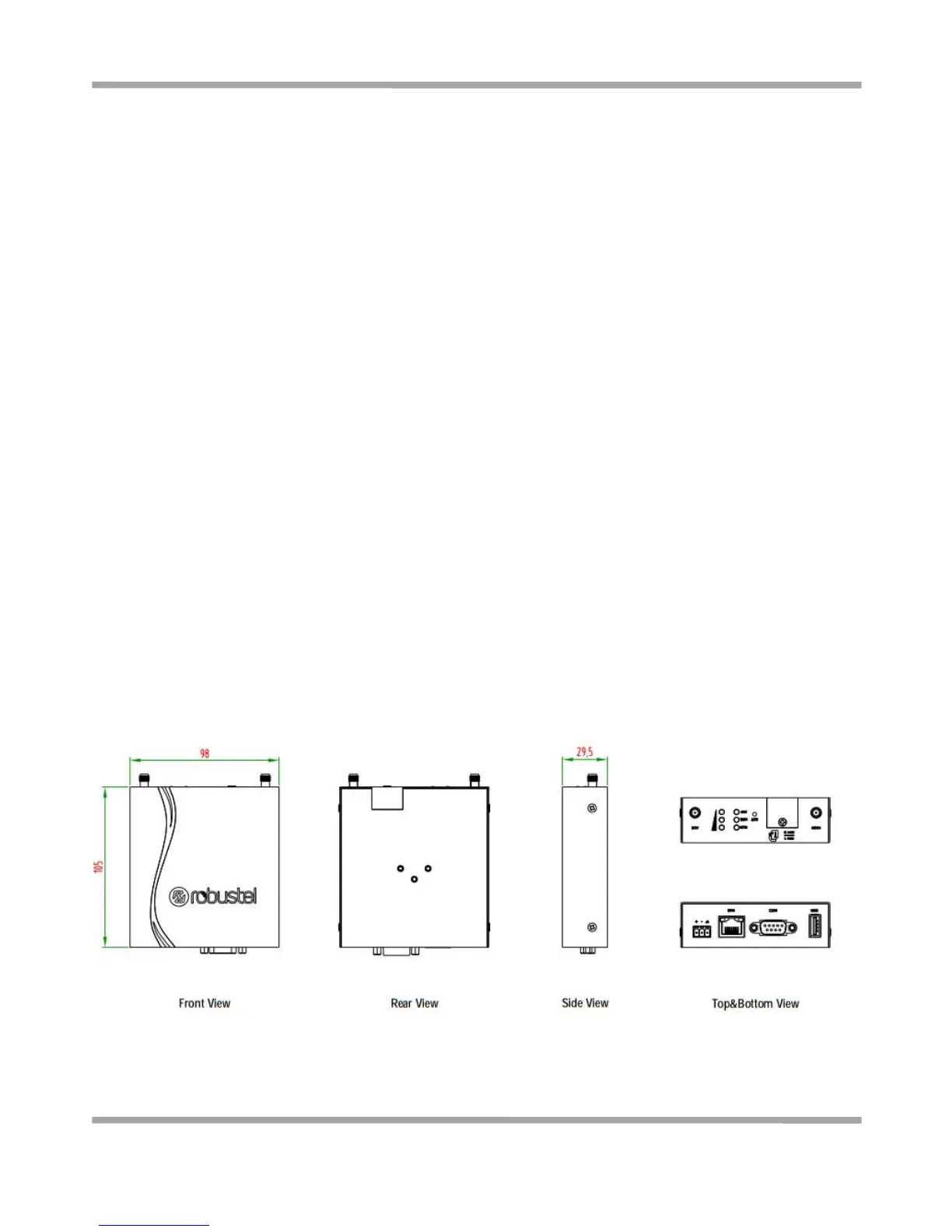

1.4 Dimensions

Robustel GoRugged R3000 Lite Specifications

General

Model	GoRugged R3000 Lite
Category	Network Router
Cellular Network	4G LTE
Ethernet Ports	2 x 10/100 Mbps
Ingress Protection	IP30
Antenna Connectors	SMA
VPN Support	IPsec, OpenVPN, GRE
Power Supply	9 ~ 36 VDC
