2.6 Mount the Router
R3000 Lite router supports for horizontal surface placement, DIN rail mounting and wall mounting.

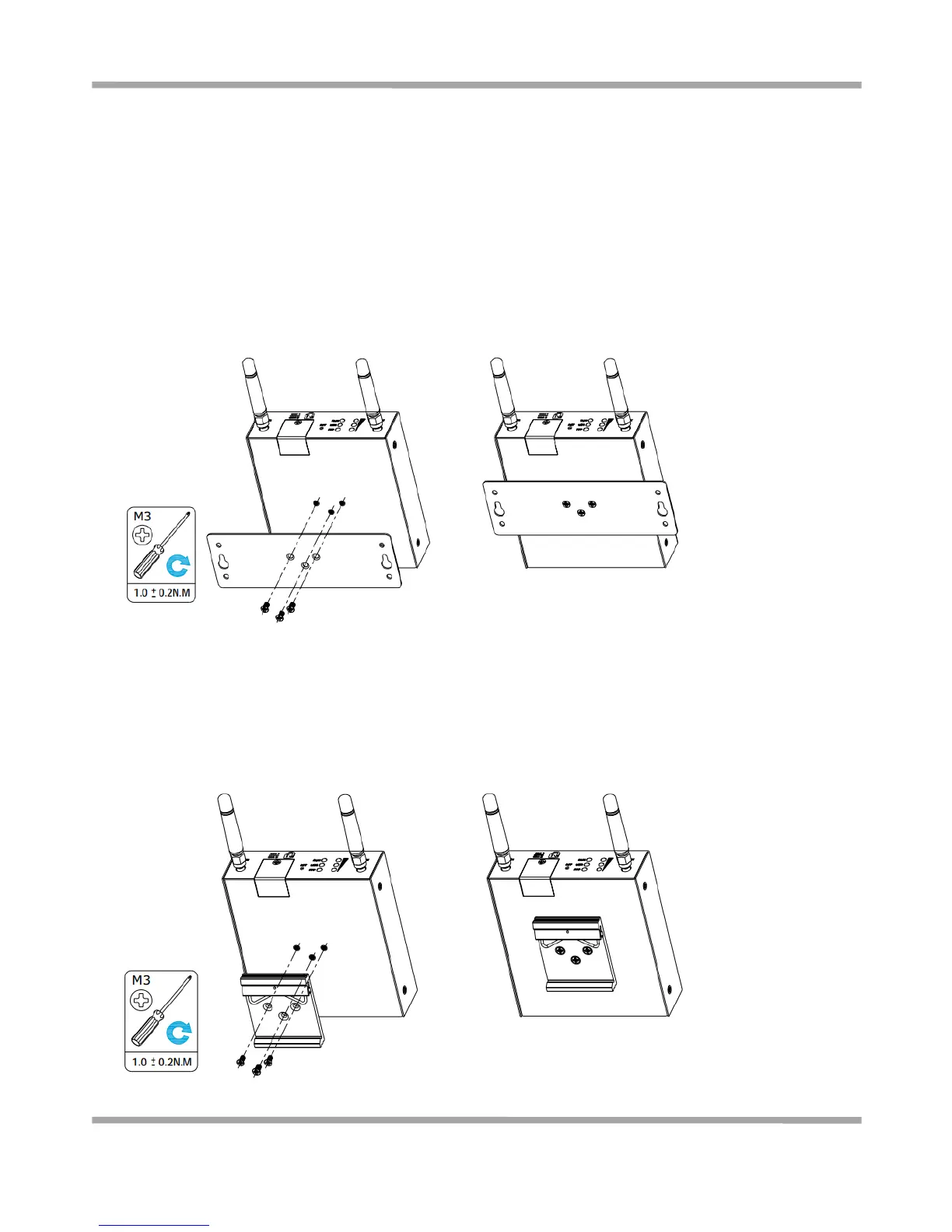

Two ways for mounting the router
1. Wall mounting
Use 3 pcs of M3*4 countersunk Phillips screws to fix the router on the wall mounting kit, and then use 2 pcs of
M3 drywall screws to mount the router associated with the wall mounting kit on the wall.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
2. DIN rail mounting
Use 3 pcs of M3*4 countersunk phillips screws to fix the router on the DIN rail, and then hang the DIN rail on the
bracket. It is necessary to choose the standard bracket.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
