188 Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022
Chapter 6

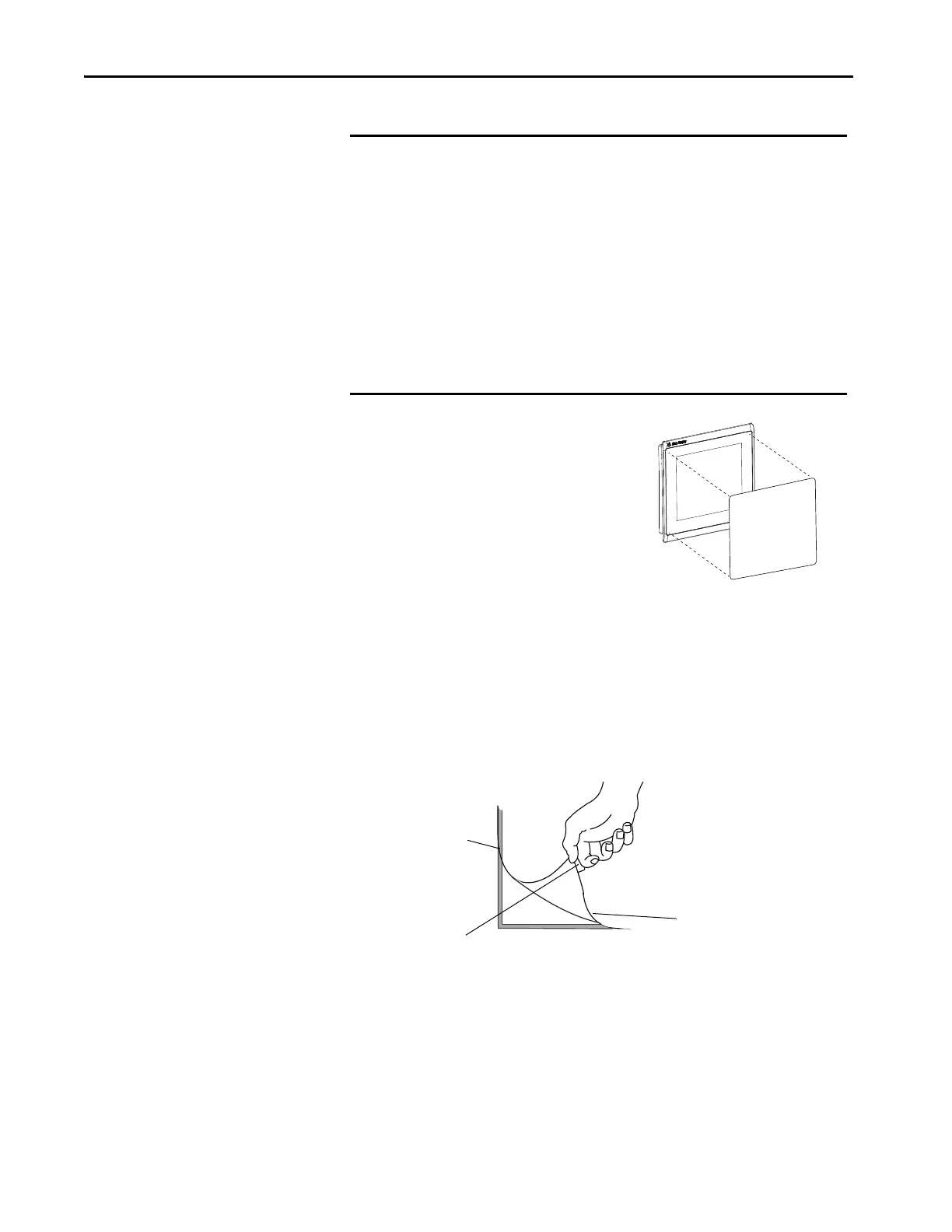

The protective overlay covers the entire
surface of the terminal bezel inside the
aluminum perimeter. The overlay has a
protective liner that is removed by pulling
back on a tab. Do not remove the liner until
you are ready to install the overlay.
Before installing the overlay, use a lint-free
cloth and a mild glass cleaner or denatured
cleaning ethanol (95%) to clean the touch
screen surface, and keys, if present. Remove all fingerprints, grease, or dust.
Marks that are not removed are trapped underneath the overlay. Grease also
affects the adhesion of the overlay.
To apply the protective overlay, follow these steps.
1. Pull the tab from one of the short sides and partially peel the liner away
from the adhesive layer.
IMPORTANT Follow these guidelines when installing the overlay:
• Make sure that your hands are clean and dry.
• Handle the overlay by its edges to prevent fingerprints or lint. If you do
get marks or lint on the overlay, remove them before proceeding.
• Do not touch the adhesive ring.
• Do not use Isopropyl Alcohol, chemicals that contain silicone, or soap to
clean the surface of the terminal. Doing so may cause the overlay to
not adhere properly to the terminal surface.
• Denatured cleaning ethanol (95%) or a mild glass cleaner is
recommended to clean the terminal surface before applying the
protective overlay.
Tab
Adhesive Ring
Protective liner
(covers adhesive)
To Next Page
