42 Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022
Chapter 2
Protect the terminal from water and dust by mounting it in a proper enclosure
following the instructions in the PanelView Plus 7 Performance Terminals
Product Information, publication 2
711P-PC007. The terminals meet specified
NEMA, UL Type, and IEC ratings only when properly mounted in a panel or
enclosure with the equivalent rating. Other sections of this publication may
contain additional information regarding specific enclosure type ratings that
are required to comply with certain product safety certifications.

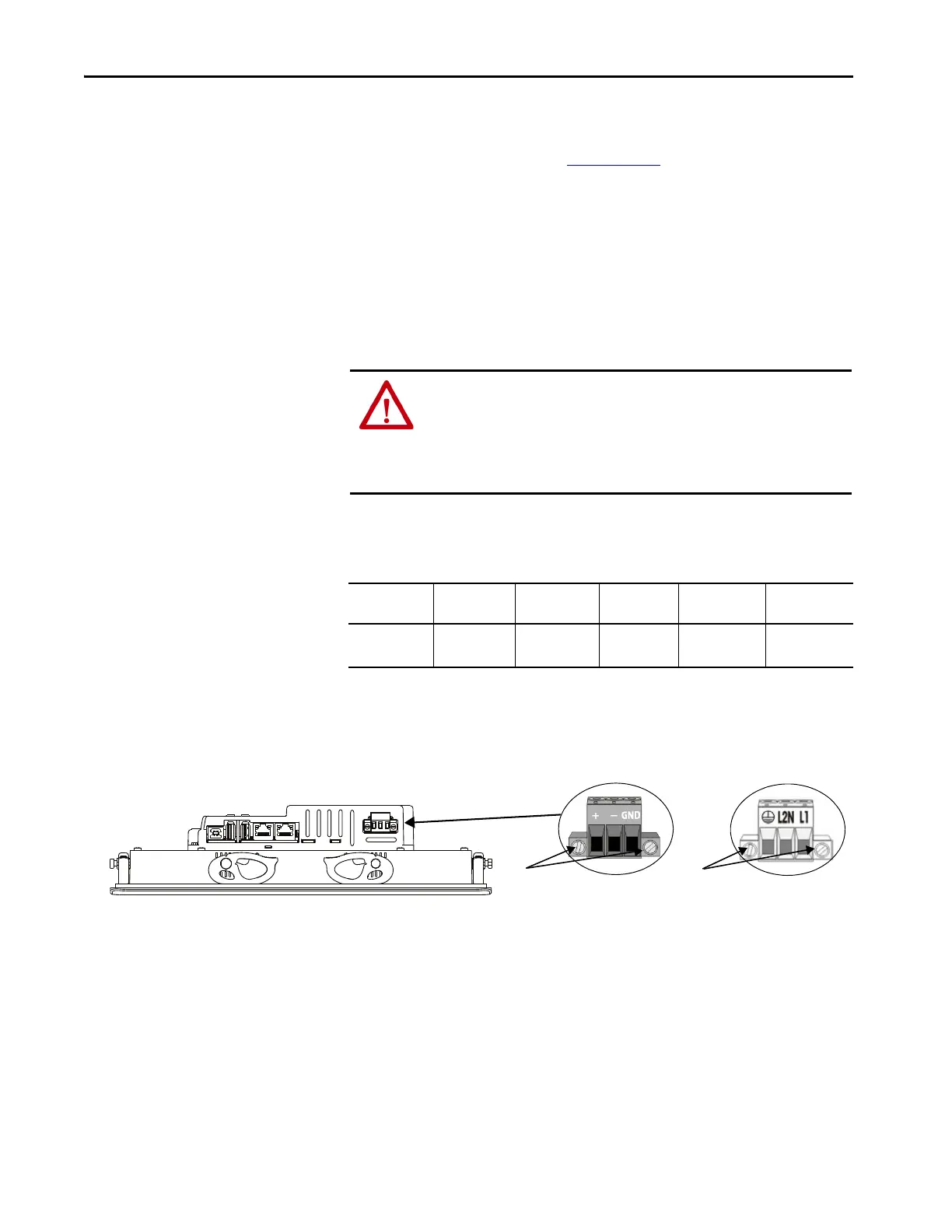

Remove and Replace Power
Terminal Block
The product has a three-pin terminal block for power connections. You can
remove the terminal block for ease of installation, wiring, and maintenance.
The terminal block has different markings for AC and DC power connections.
Use a 0.6 x 3.5 mm screwdriver for terminal block wiring.
To remove the terminal block, follow these steps.
1. Loosen the two screws that secure the terminal block.
2. Gently pull the terminal block away from the connector.
WARNING: Explosion Hazard
If you connect or disconnect wiring while the power is on, an electric arc can
occur. An electric arc can cause an explosion in hazardous location installations.
Verify that the power is off and the area is nonhazardous before proceeding.
Failure to turn power off can result in electric shock or damage to the terminal.
Table 16 - Wire Specifications for Power Input Terminal Block
Wire Type
Dual-wire
Size
(1)
(1) Two-wire maximum per terminal.
Single-wire
Size
Strip Length Wire Torque Mounting
Torque
Stranded or solid
Cu 90 °C (194 °F)
0.3…1.3 mm
2
22…16 AWG
0.3…2.1 mm
2
(22…14 AWG)
7 mm (0.28 in.)
0.4…0.5 N•m
(3.5…4.4 lb•in)
0.15…0.2 N•m
(1.3…1.8 lb•in)
AC Terminal Block
(Series A only)
(1)
DC Terminal Block
(1)
Series C for PanelView Plus 7 Performance Stainless Steel terminals.
