Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022 39
Chapter 2

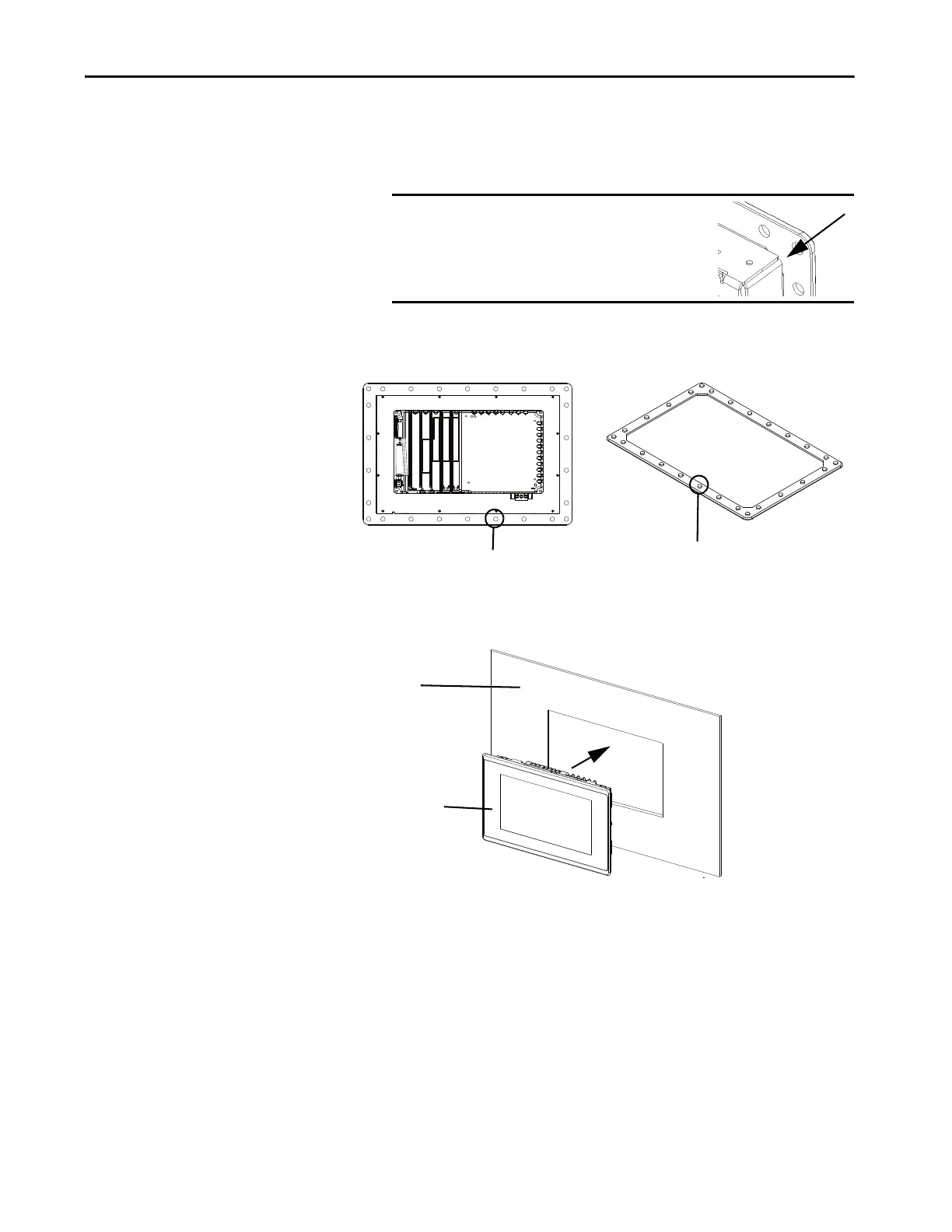

3. Position the gasket on the bezel, with the gasket alignment plugs facing
the bezel alignment features.
This gasket forms a compression seal. Do not use sealing compounds.
4. Press each gasket alignment plug into the bezel alignment feature.
The alignment plugs hold the gasket to the bezel.
5. Place the terminal in the panel cutout.
Hold the terminal so it does not fall out of the panel.
IMPORTANT Slip the inside corners of the gasket
under the corners of the bezel
shroud.
Gasket with Alignment Plugs
Back of Bezel with Alignment Features
To Next Page
