46 Rockwell Automation Publication 2080-QS004C-EN-E - October 2023
Chapter 9 How to Add a Plug-in Module

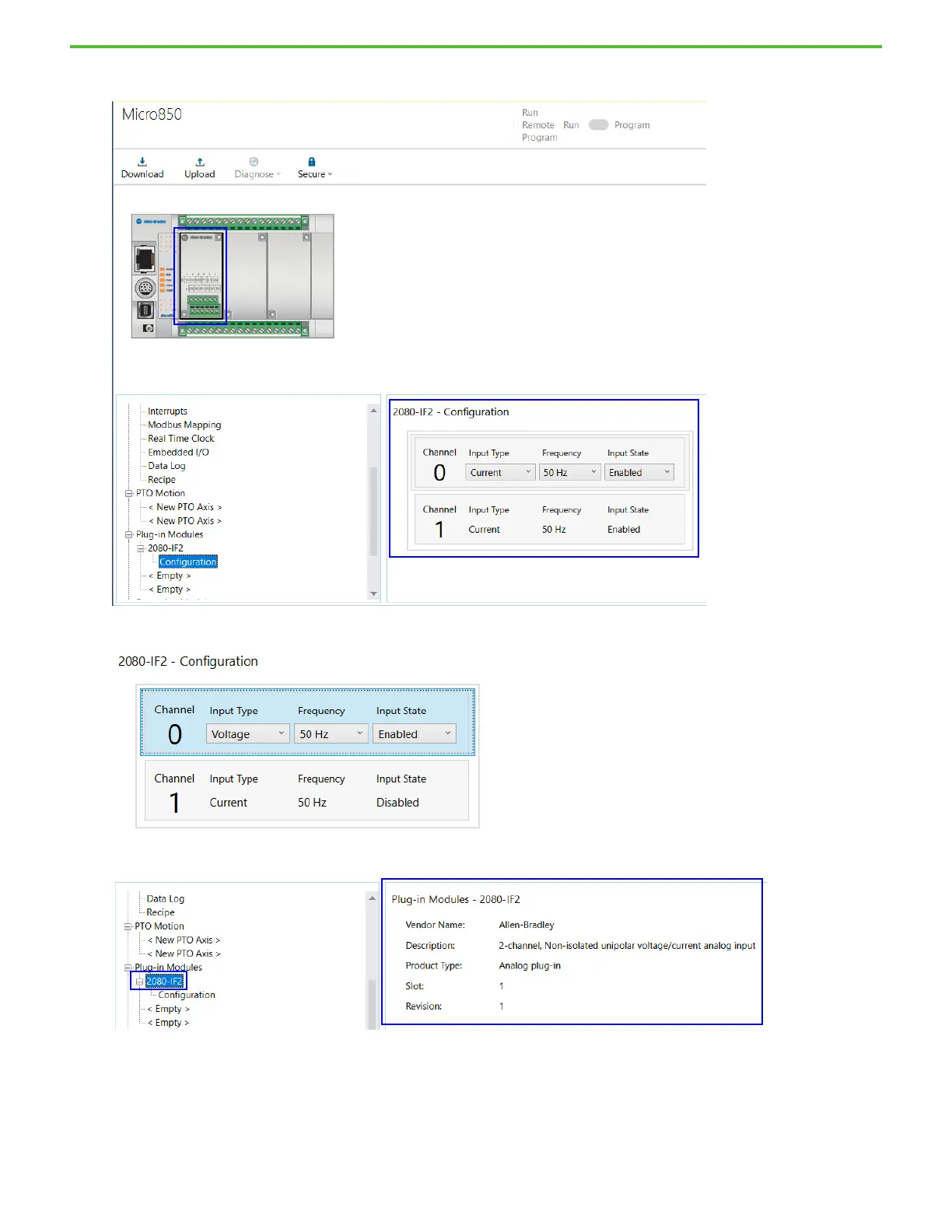

6. The 2080-IF2 module is added to the chassis. The configuration properties should also show up in the window below it.
7. Configure the Input Type for Channel 0 to “Voltage” and Input State to “Enabled”. Configure the Input State for Channel 1 to “Disabled”.
8. Click 2080-IF2 to show the plug-in module properties.
