Chapter 17 HMI Screen

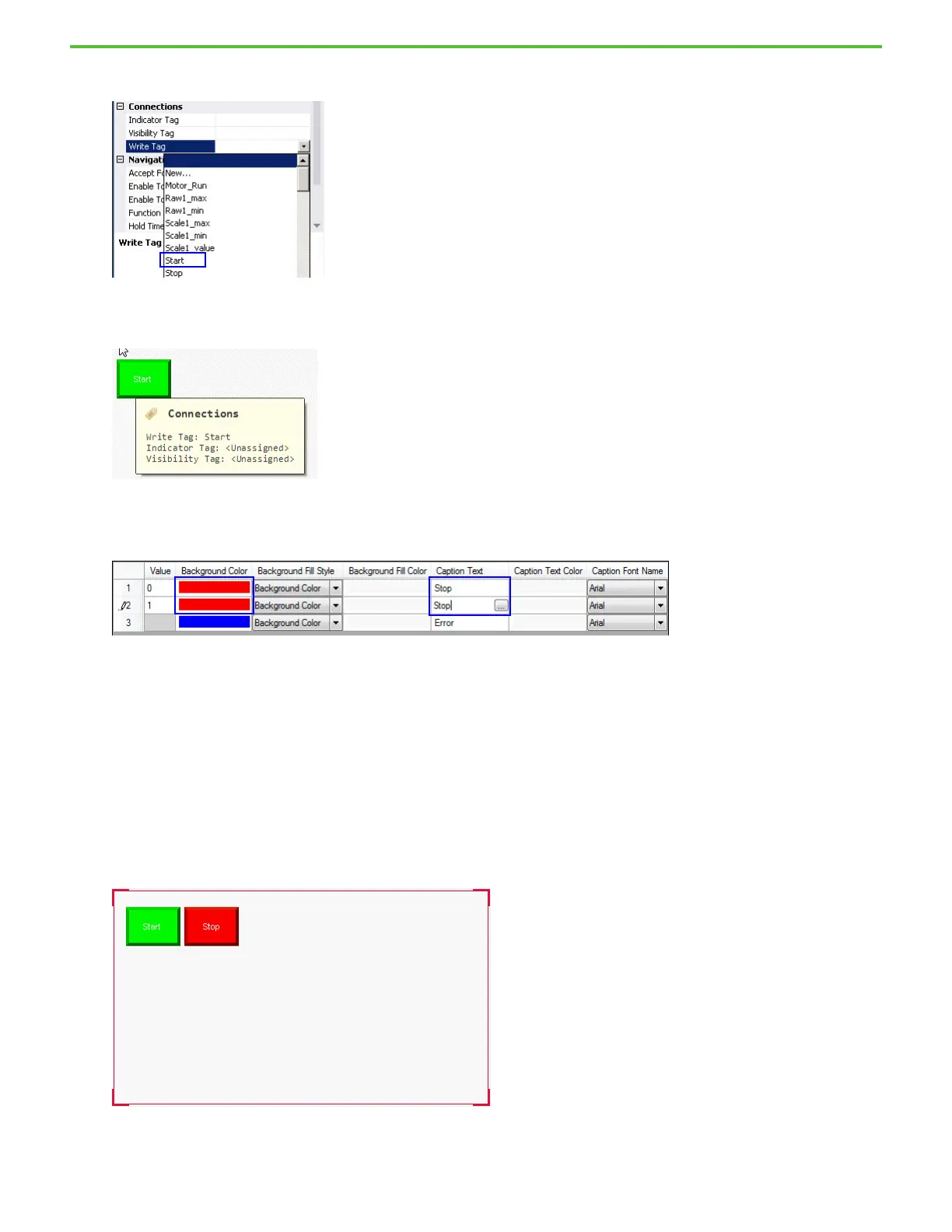

10. Click the Write Tag dropdown arrow in the Properties window, and select Start from the list of tags.
You have completed creating your first push button. If you hover your mouse over the Momentary push button, you can see its tag
connections.
Create Maintained Push Button Object
1. Add a Maintained push button next to the Start push button and configure the States of this object as shown.
2. Open the Properties window for the object and set the following properties.
- Height: 50
- Left: 90
-Top: 20
-Width: 70
3. Set the following tag connections for the object.
- Indicator Tag: None
- Visibility Tag: None
- Write Tag: Stop
Your screen should look as follows.
Next, we add an image to represent the motor operation.
