82 Rockwell Automation Publication 2080-QS004C-EN-E - October 2023
Chapter 17 HMI Screen

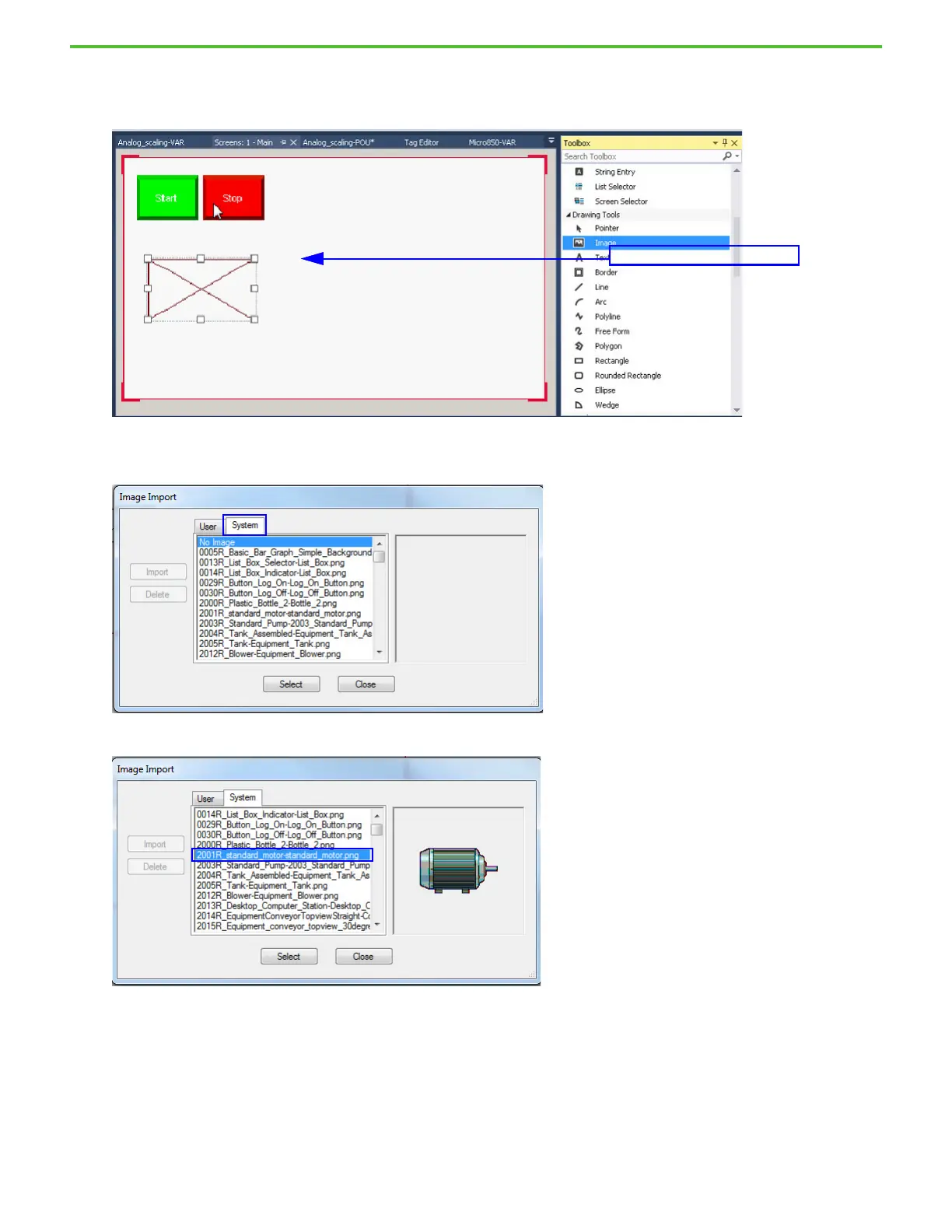

Add an Image to Your Screen
1. Locate the Image tool in the Toolbox and drag-and-drop it onto the screen in the lower left corner.
2. Double-click the Image object that you added. This launches the Image Import dialog box.
3. Select the System tab.
4. Select the image “2001R_standard_motor_standard_motor.png” and click Select.
