Chapter 17 HMI Screen

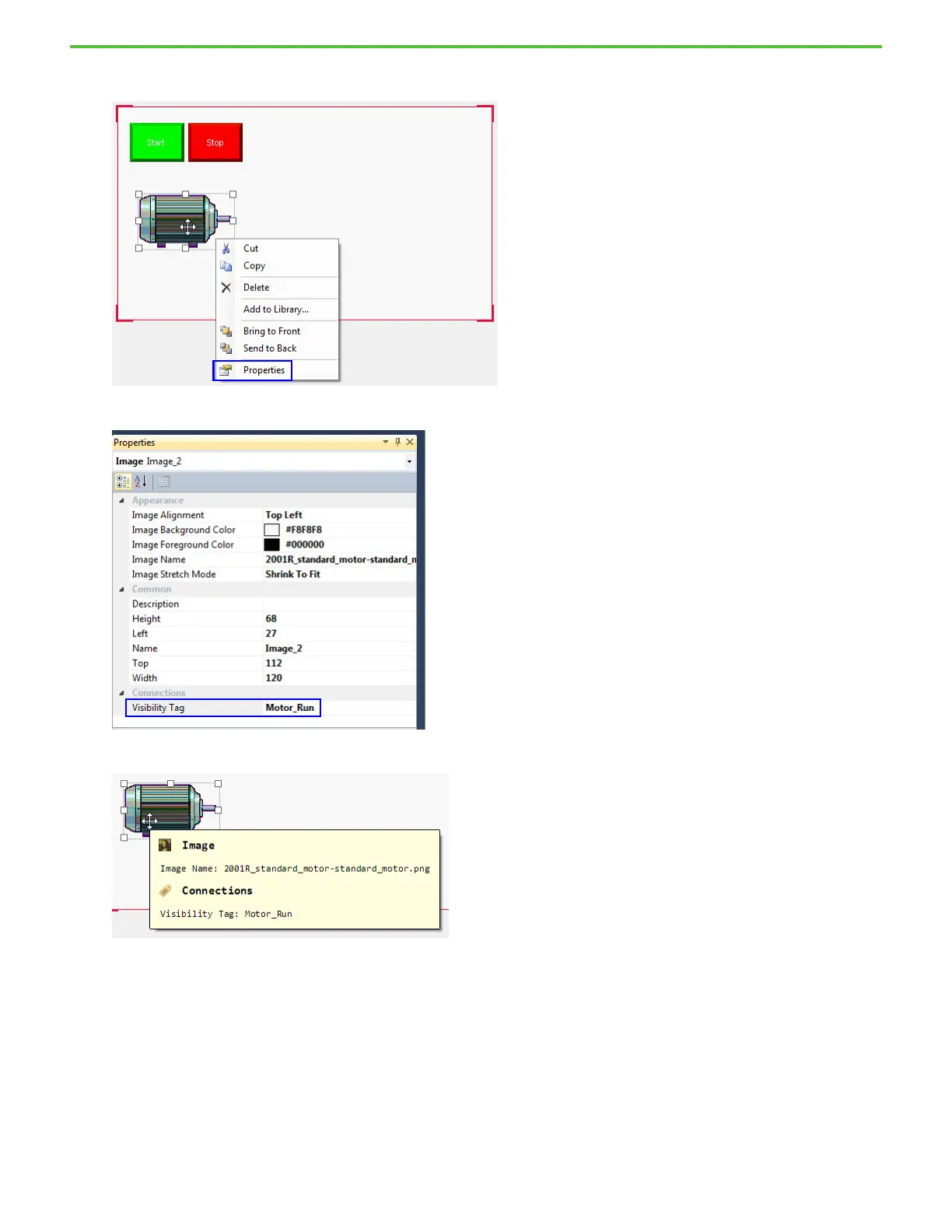

5. Right-click the image and select Properties to display its Properties window.
6. Complete the tag information for the image object that is shown as follows.
7. If you hover your mouse over the image, you can see its tag connections.
