Chapter 17 HMI Screen

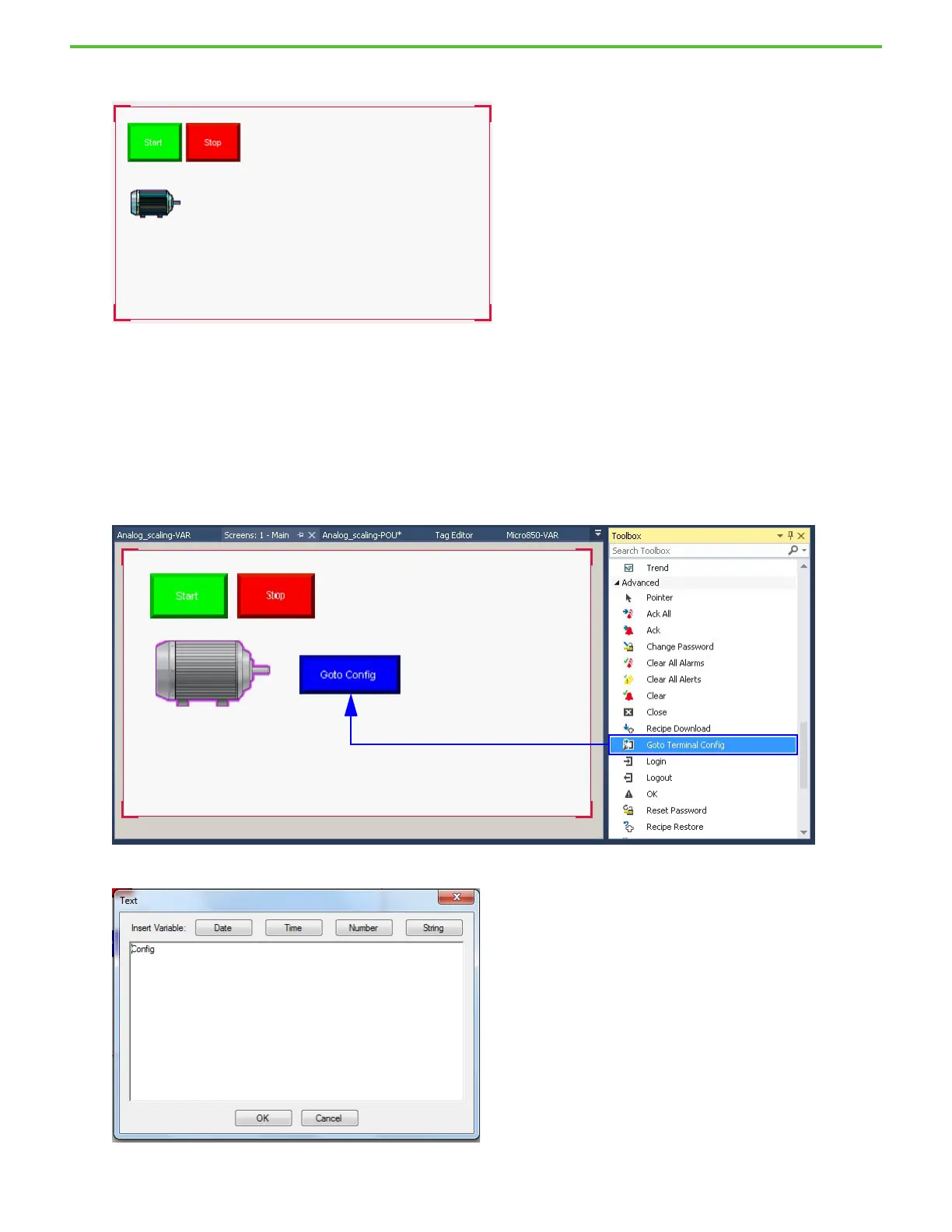

Your screen should look as follows.
Next, we create a Goto Config push button.
Create Goto Config Button Object
Returning to the configuration screen of the PanelView 800 terminal is important for all applications. The configuration screen allows you to
change terminal settings and observe its communication, setup, and memory usage.
To create a Goto Config push button, do the following:
1. Locate the Goto Config push button in your Toolbox. Drag-and-drop it onto your screen, just below your Stop push button.
2. Double-click the Goto Config push button and change the Text to “Config”, then select OK.
