Chapter 17 HMI Screen
3. Change the button Width to “70” and Height to “50”.

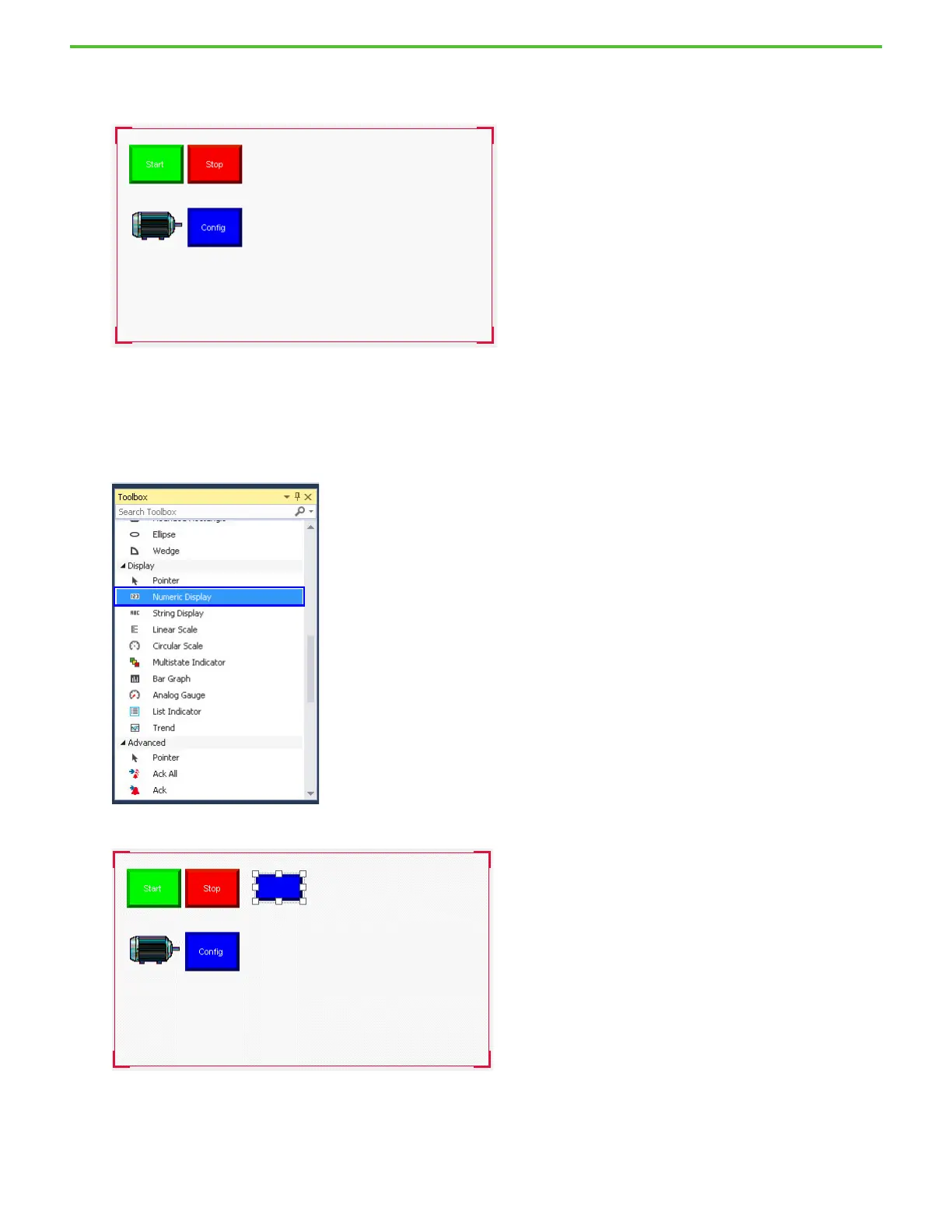

Your screen should look as follows.
Create a Numeric Display Object
A Numeric Display shows the value of the tag that it is connected to. For this application, we display the 2080-IF2 analog module channel 0
scaled value.
1. Locate the Numeric Display object in your Toolbox.
2. Drag-and-drop the Numeric Display object onto your screen, next to the Stop push button.
