86 Rockwell Automation Publication 2080-QS004C-EN-E - October 2023
Chapter 17 HMI Screen

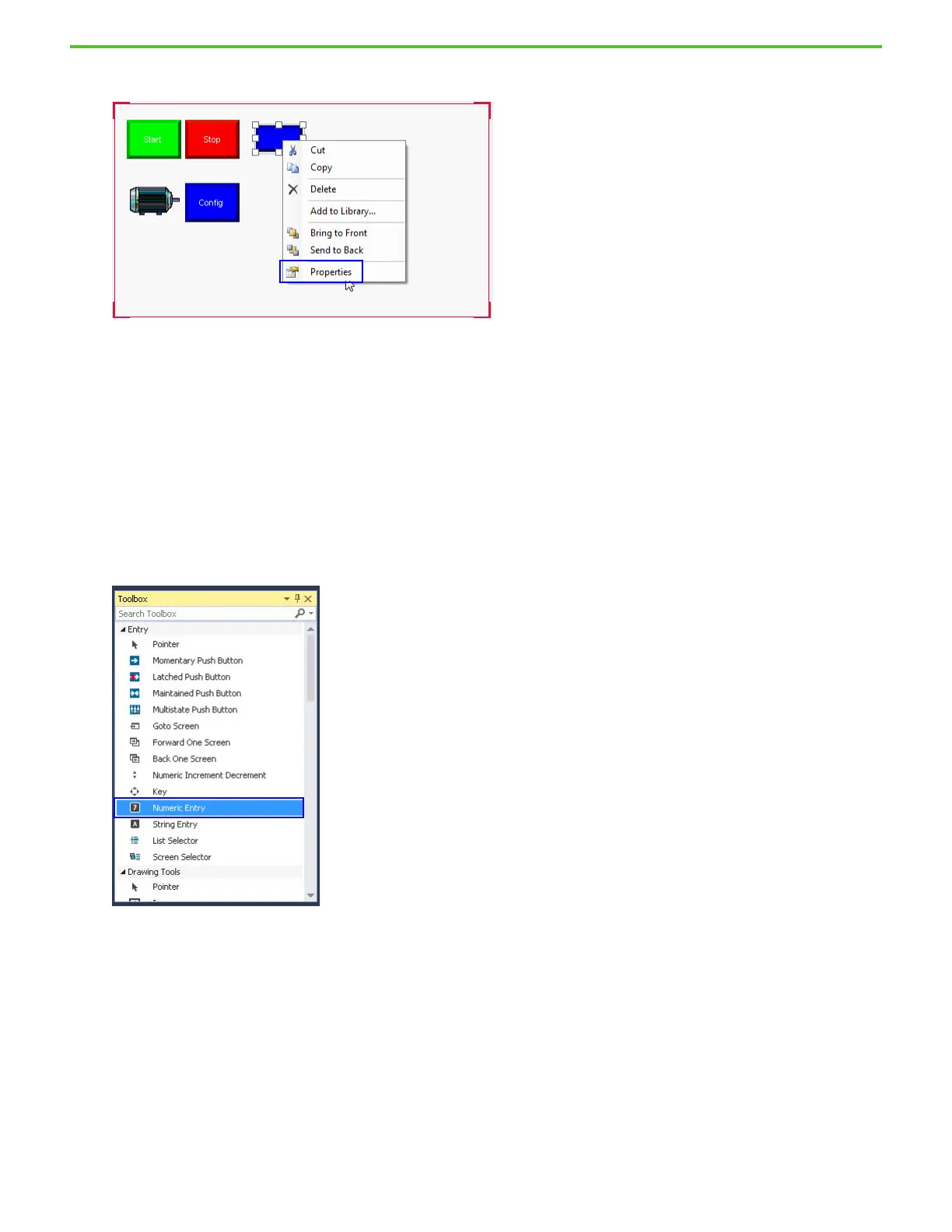

3. Right-click the object and select Properties to display its Properties window.
4. Set the following property values.
-Width: 81
-Height: 33
5. Set the Read Tag to Scale1_value.
6. Set the Number of Decimal places to “0” and Number of Digits to “6”.
Next, we create a Numeric Entry object.
Create a Numeric Entry Object
You are to set the minimum and maximum range for the Raw and Scaling value for the analog input scaling.
1. Locate the Numeric Entry object in your Toolbox.
