Rockwell Automation Allen-Bradley Ultra3000 Migration Guide

44 Rockwell Automation Publication 2198-RM003B-EN-P - November 2020
Chapter 3 Connectors and Indicators

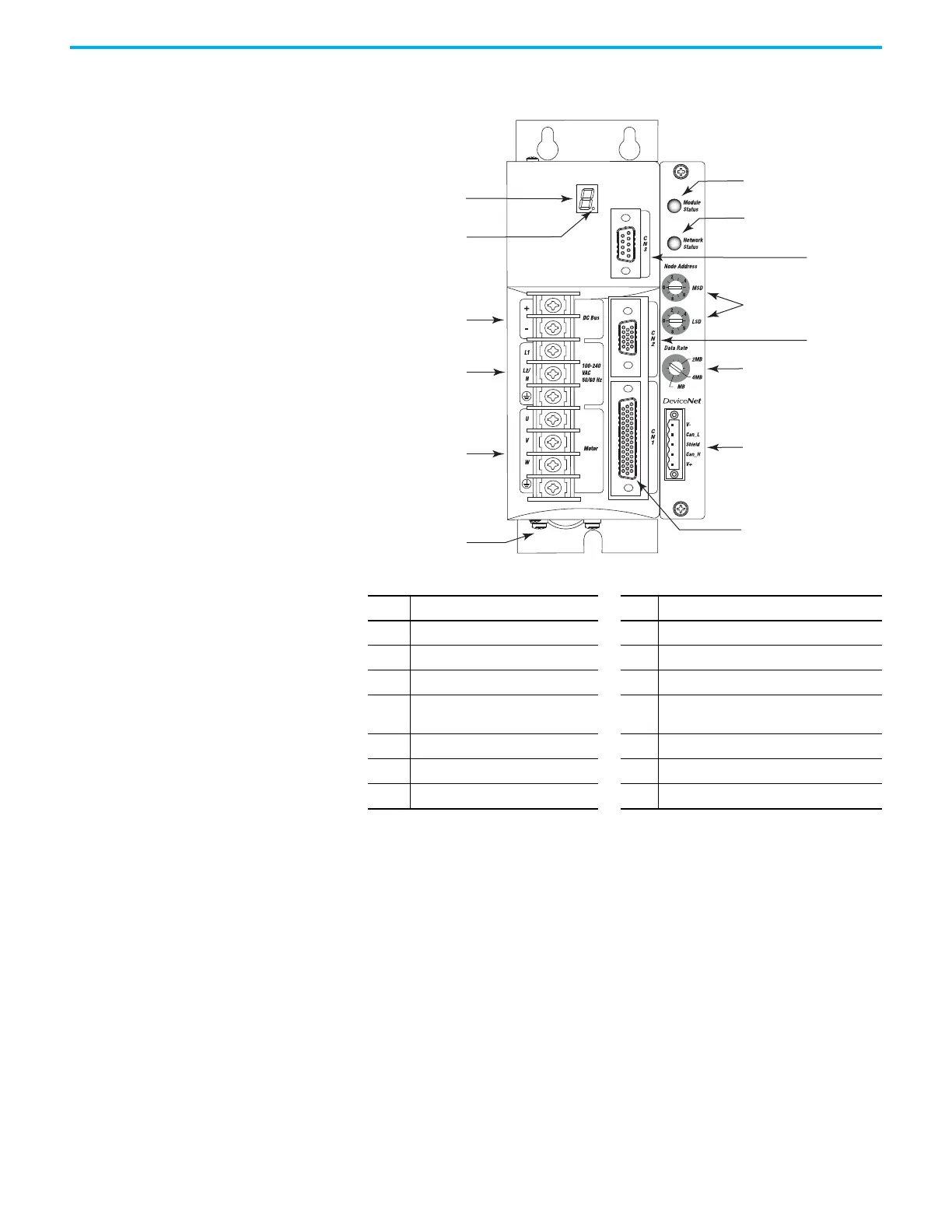

Figure 13 - Ultra3000 Servo Drive Front Panel Connections (Catalog Numbers 2098-DSD-005-DN,
-005X-DN, -010-DN, -010X-DN, -020-DN, and -020X-DN)
Item Description Item Description
1 Motor Power Cable Shield Clamp 8 Network Status Indicator
2 Motor Power Connections 9 CN3 9-pin Serial Port Connector
3 AC Input Power Connections 10 Node Address Switches
4
DC Bus Connections for Active Shunt
Resistor Kit
11 CN2 15-pin Motor Feedback Connector
5 Logic Power Status Indicator 12 Data Rate Switch
6 Seven Segment Status LED 13 DeviceNet interface connector
7 Module Status Indicator 14 CN1 44-pin User I/O Connector
8
5
6
4
3
2
7
1
8
9
10
11
12
13
14
