Chapter 4 Dimensions, Cables, and Wiring

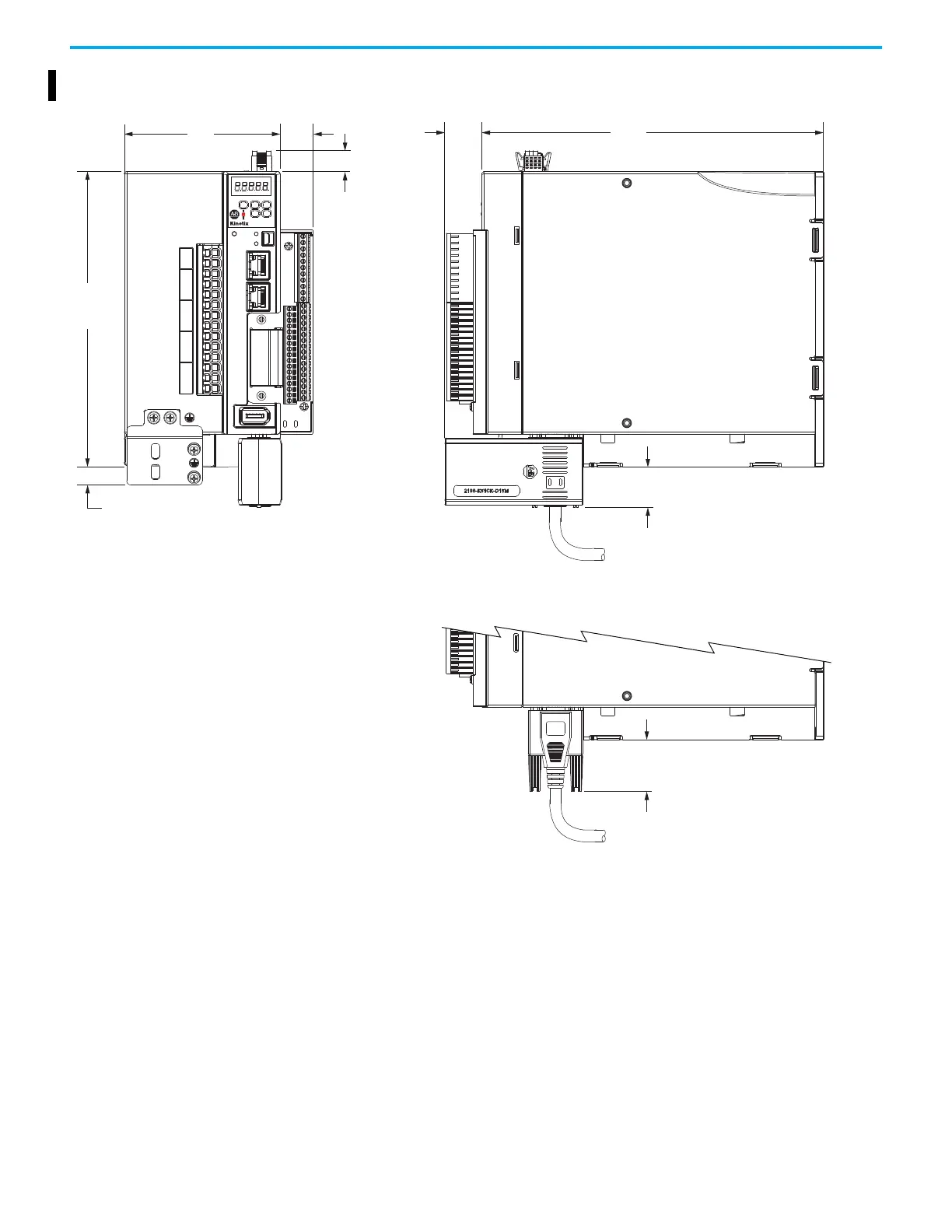

Figure 28 - Catalog Numbers 2198-E1020-ERS, 2198-E2030-ERS, 2198-E4004-ERS, 2198-E4007-ERS,
and 2198-E4015-ERS
37.0
(1.50)
13.0
(0.50)
95.0
(3.74)
20.0
(0.79)
208
(8.20)
178
(7.08)
11.0
(0.43)
5100
2
1
NET
MOD
CHARGE
I/0
AUX
23.0
(0.89)
25.0
(0.97)
U
V
W
DC+
ISH
ESH
P1
P2
DC–
L1
L2
L3
L1C
L2C
2090-K51CK-D15M
Feedback Connector Kit
I/O Terminal
Expansion Block
Additional clearance below the cable connector/connector kit is
necessary to provide the recommended cable bend radius.
Flying-lead
Feedback Cable
2090-CTFB-MxDD
Feedback Cable
Dimensions are in mm (in.).
