Rockwell Automation Publication 750-TG100B-EN-P - June 2019 169

Control Bay and Control Pod Components Chapter 7

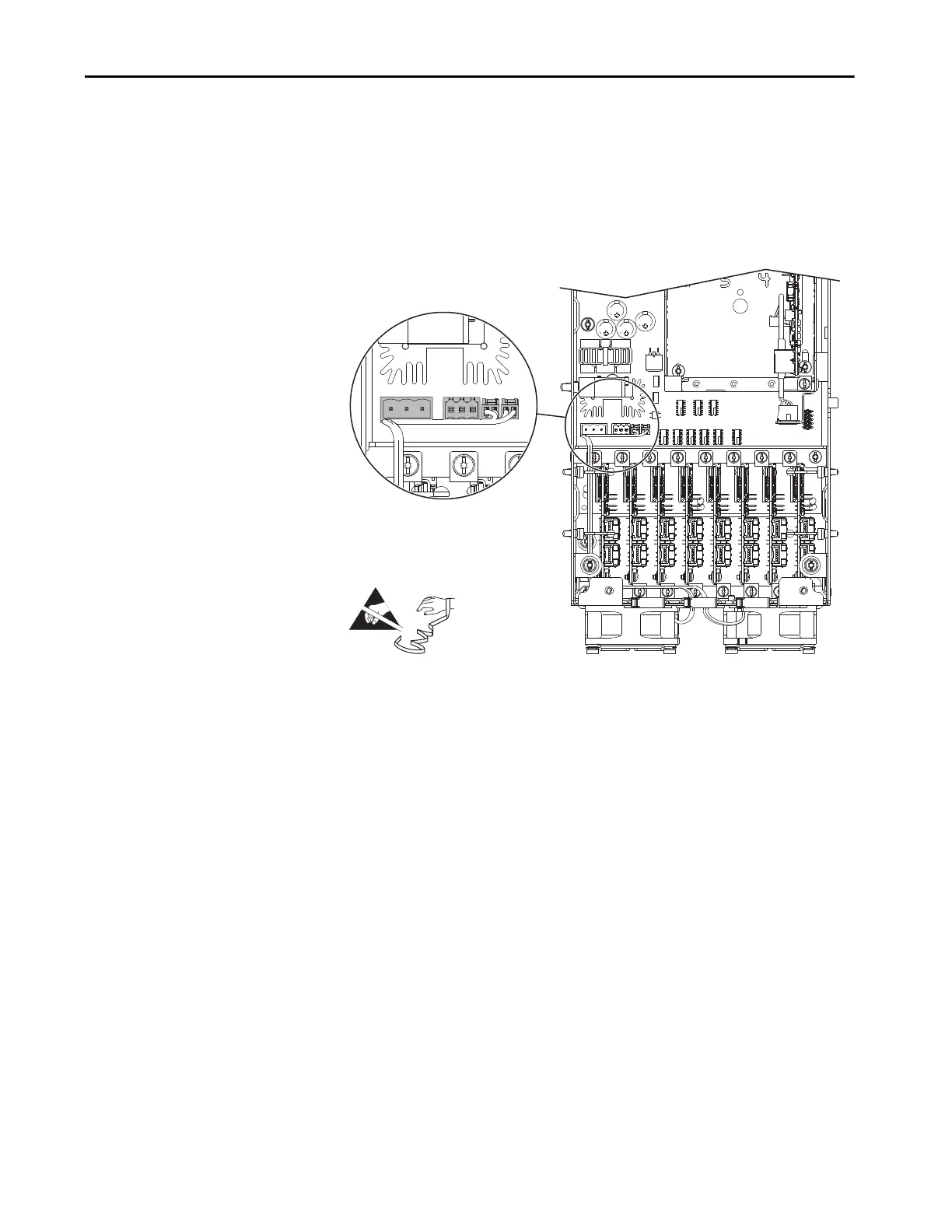

13. Disconnect connector P14 from connector J14 on the fiber-optic interface

board.

14. Disconnect the two fan power supply connectors from connectors J18 and

J25 on the fiber-optic interface board.

15. If installed, disconnect the customer supplied 24V supply power wire

connector P13 from connector J13 on the fiber-optic interface board.

J13J14 J25

J18
