216 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 9 Power Bay Components

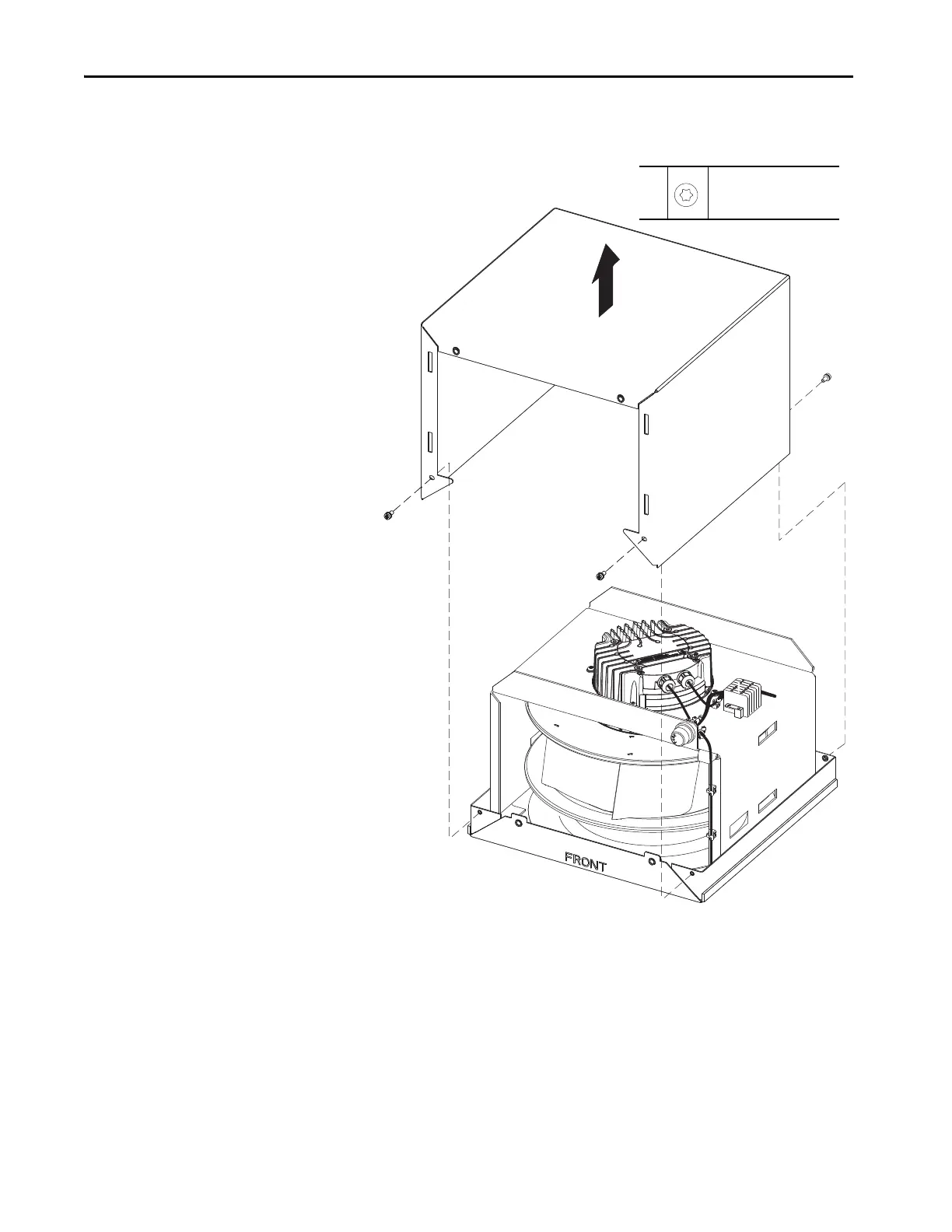

8. Remove the four M5 x 12 mm torx screws that secure the vent assembly

cover to the fan assembly and remove the cover.

M5 x 12 mm

T25

6 N

•m (53 lb•in)
