Rockwell Automation Publication 750-TG100B-EN-P - June 2019 237

Power Bay Components Chapter 9

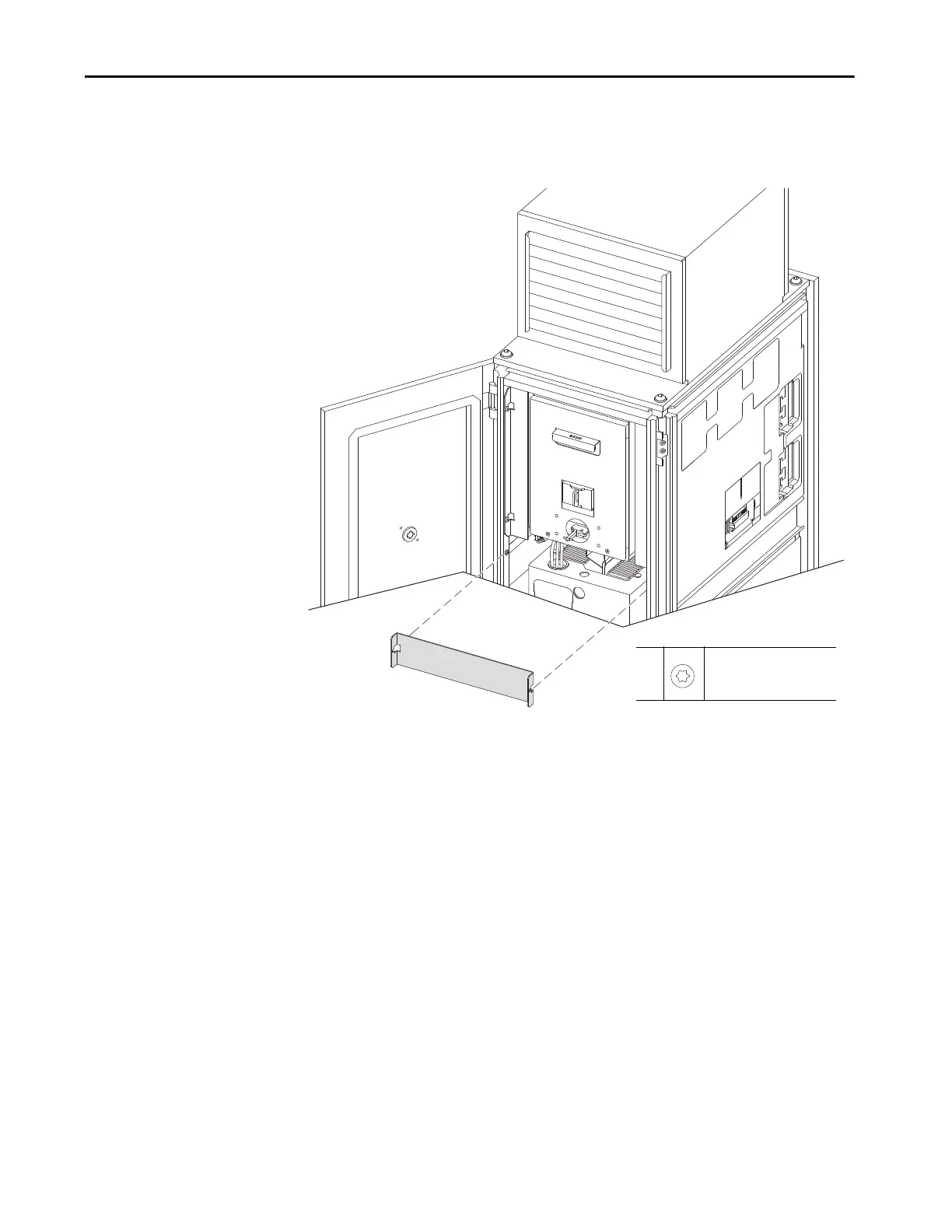

5. If a DC precharge module is installed, loosen the two M6 x 16 mm torx

screws that secure the bottom guard to the enclosure, and remove the

bottom guard.

M6 x 16 mm

T30

4.8 N•m (42 lb•in)
