238 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 9 Power Bay Components

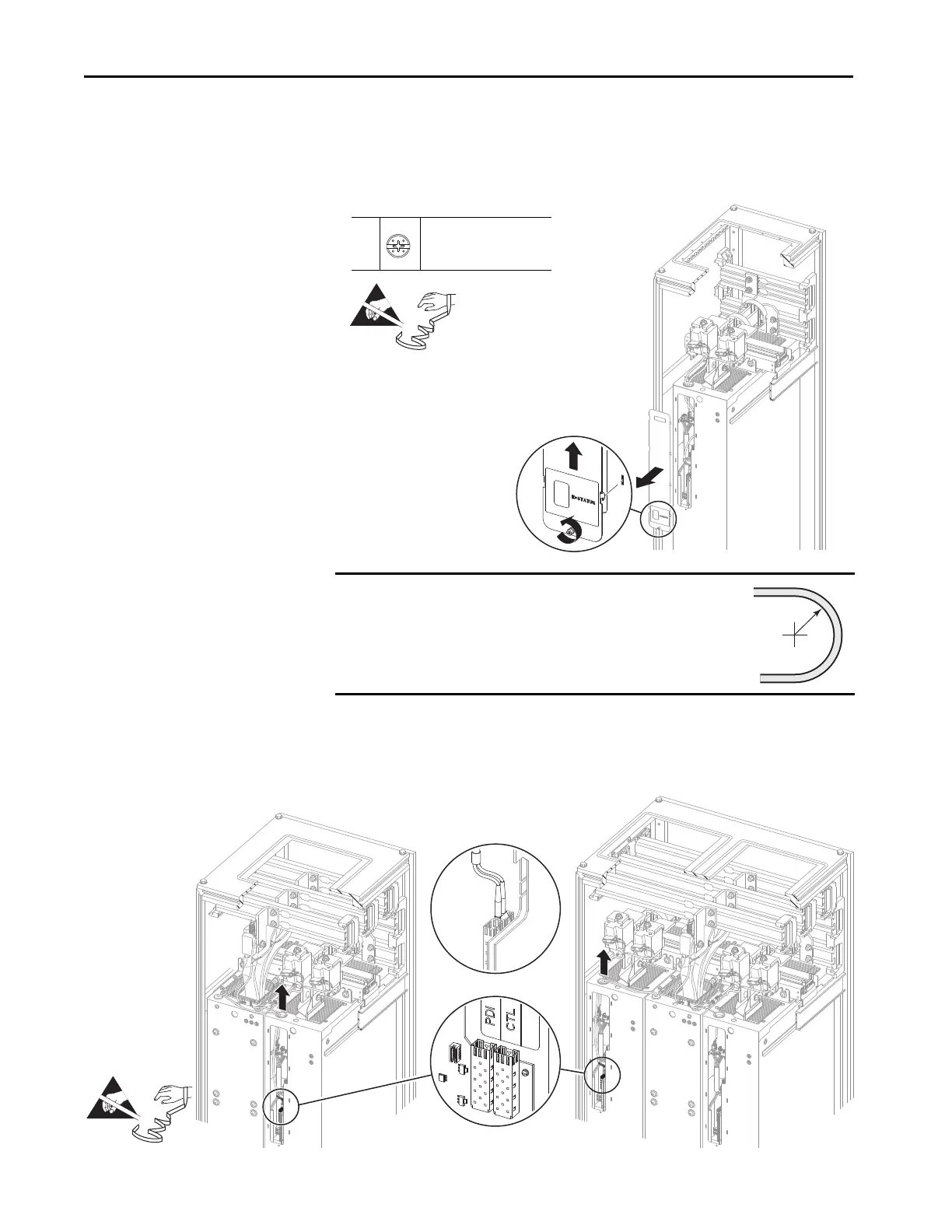

6. Loosen the thumb screw that secures the connections cover to the front of
the power module.
7. Use the screw to lift the connections cover up and off the power module
chassis.
8. Without bending the cable to a radius less than 50 mm (2 in.), remove the
fiber-optic cables from the transceiver in the CTL and PDI (if present)
ports on the power layer interface circuit board and remove the fiber-optic
cable from the power module chassis.
IMPORTANT
Minimum inside bend radius for fiber-optic cable is 50 mm
(2 in.). Any bends with a shorter inside radius can
permanently damage the fiber-optic cable. Signal
attenuation increases as inside bend radius is decreased.
6
–
P2 or F - 6.4 mm (0.25 in.)
1.8 N•m (16 lb•in)
=
50 mm
(2 in.)
LCL filter with one line
side converter.
LCL filter with two line
side converters
=
