258 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 9 Power Bay Components

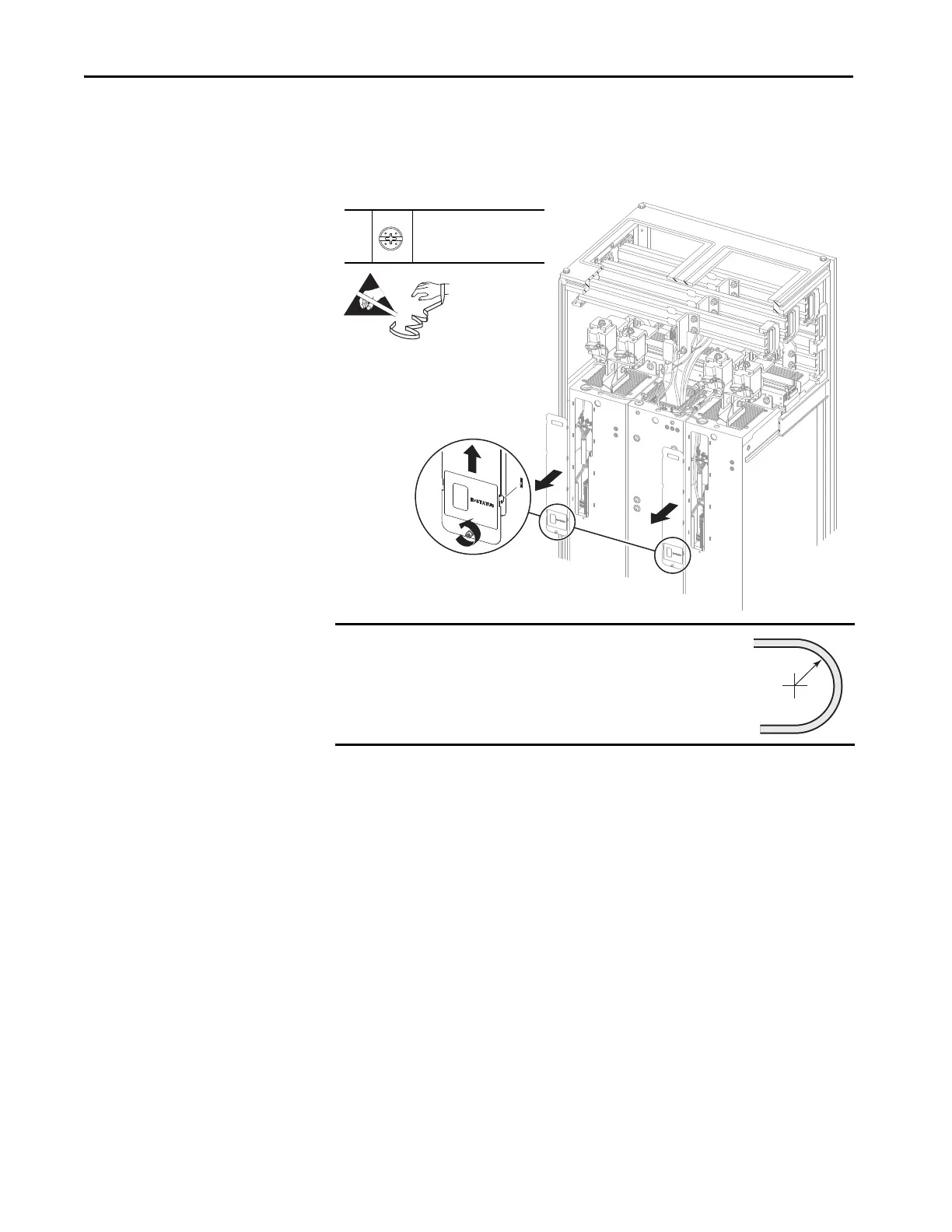

5. Loosen the screw that secures the connections cover to the front of the
adjoining power modules.
6. Use the screw to lift the connections cover up and off the power module
chassis.
IMPORTANT
Minimum inside bend radius for fiber-optic cable is 50 mm
(2 in.). Any bends with a shorter inside radius can
permanently damage the fiber-optic cable. Signal
attenuation increases as inside bend radius is decreased.
5
–
P2 or F - 6.4 mm (0.25 in.)
1.8 N
•m (16 lb•in)
