Rockwell Automation Publication 750-TG100B-EN-P - June 2019 259
Power Bay Components Chapter 9

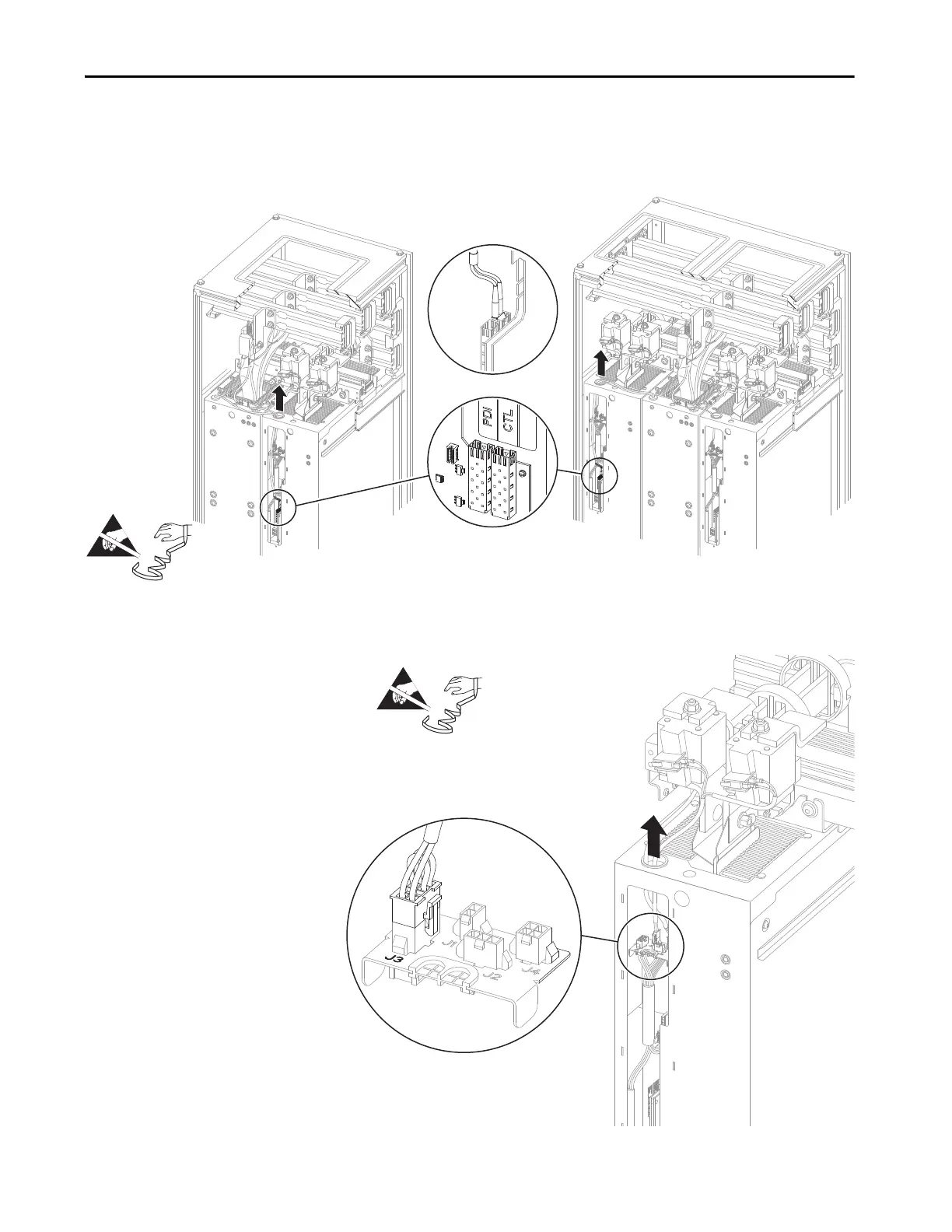

7. Without bending the cable to a radius less than 50 mm (2 in.), disconnect
the fiber-optic cable from the transceiver in the PDI and CTL port on the
power layer interface circuit board and carefully remove one or more cables
from the power module chassis.
8. Disconnect the 24V cable connector P3 from connector J3 on the I/O
panel in one or more power modules and remove the cable from the
chassis.
LCL filter with one line side converter. LCL filter with two line side converters.
