68 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 4 Frame 5 Components

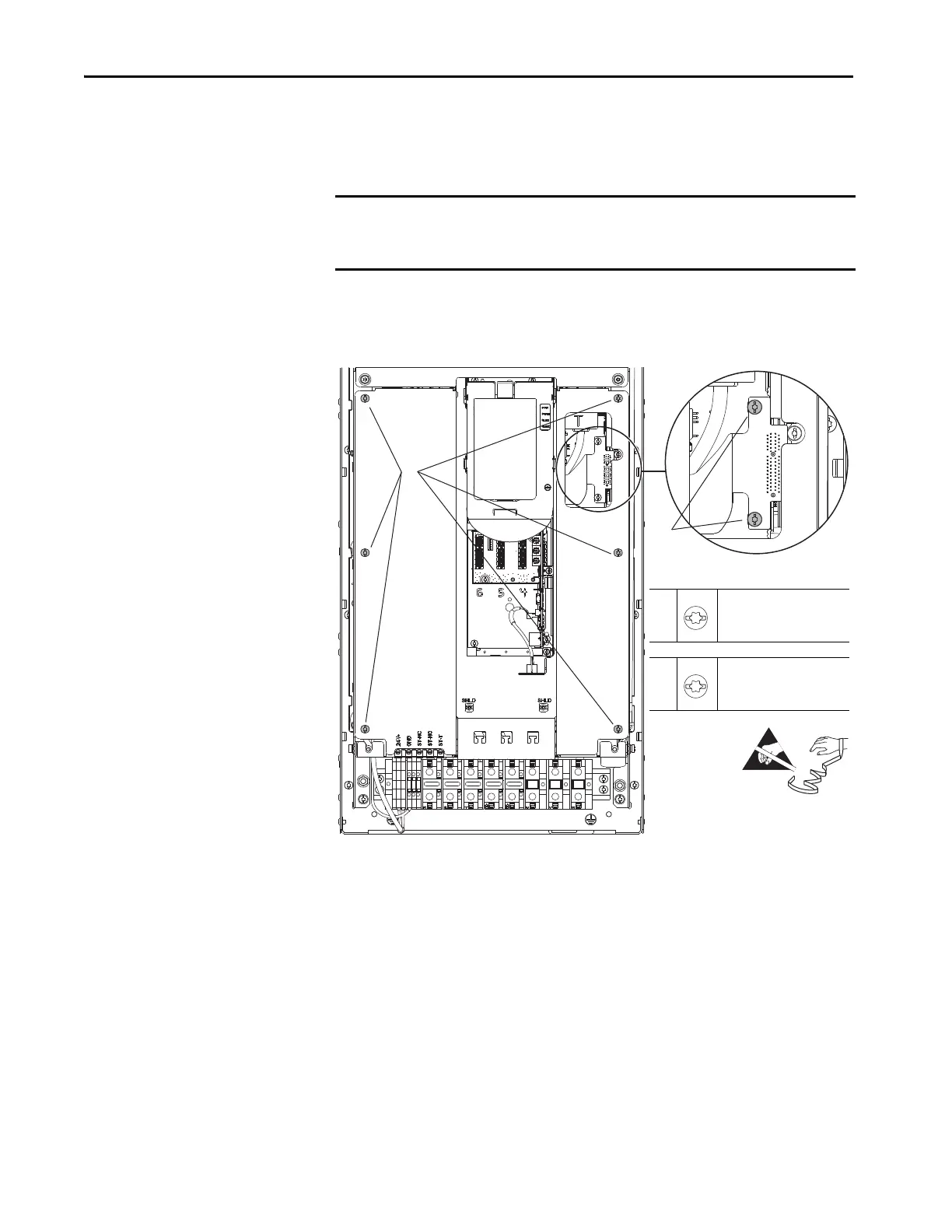

6. Remove the two M4 x 10 mm slotted torx screws that secure the human
machine interface (HMI) flex circuit connector to the power interface
circuit board.
7. Remove the six M5 x 10 mm torx screws that secure the control pod
support bracket and control pod to the chassis and carefully lift and
remove the control pod and bracket from the chassis.
IMPORTANT The control pod contains a connector that connects to an edge connector on the
power feedback circuit board beneath it. Take care when lifting the control pod
off the chassis so circuit board damage does not occur.
6
M4 x 10 mm
T20 or F - 6.4 mm (0.25 in.)
2.3 N•m (20 lb•in)
6
7
7
M5 x 10 mm
T25 or F - 6.4 mm (0.25 in.)
3.6 N•m (32 lb•in)
To Next Page
