Rockwell Automation Publication 750-TG100B-EN-P - June 2019 69

Frame 5 Components Chapter 4

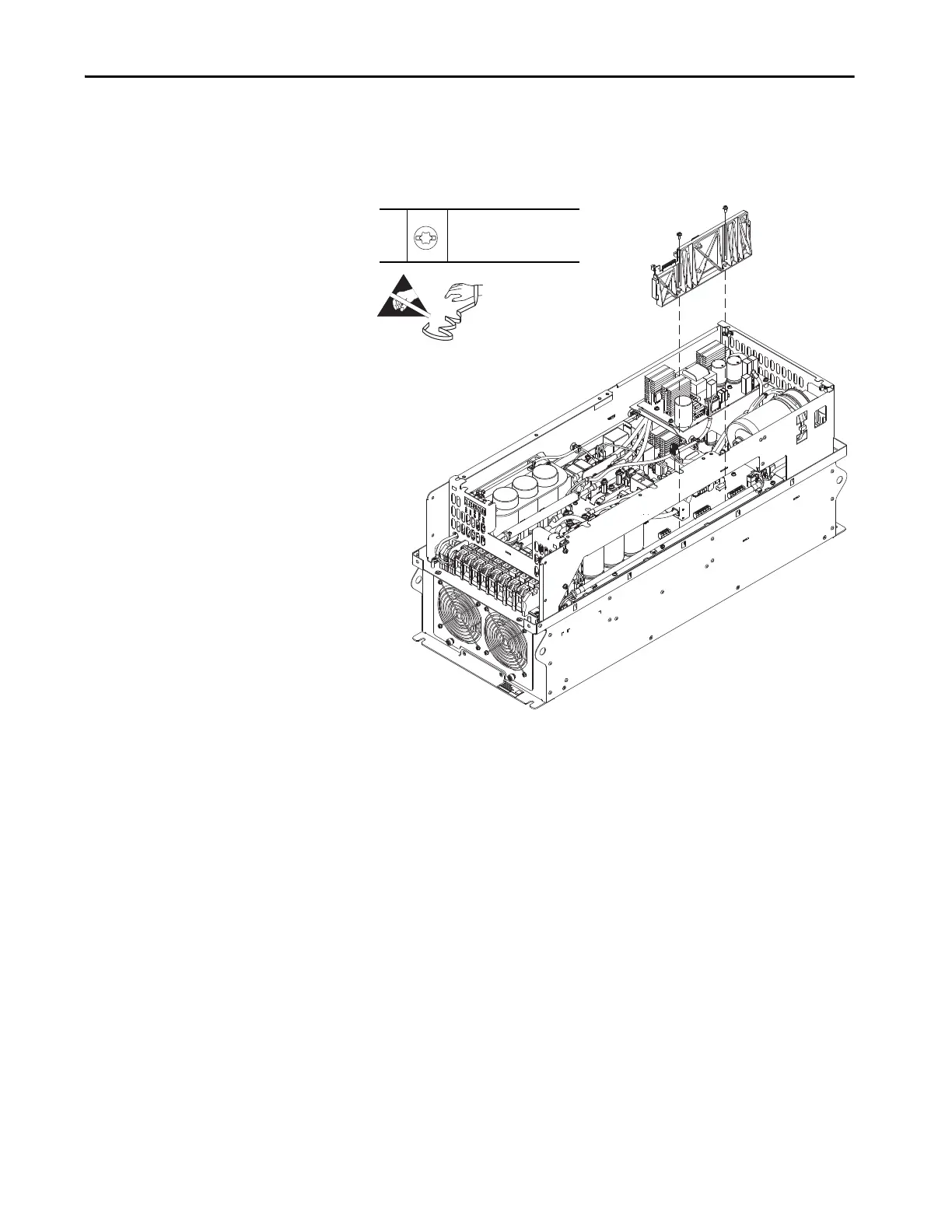

8. Remove the two M4 x 10 mm torx screws that secure the power feedback

circuit board and support bracket to the chassis and carefully lift the

bracket and board edge connectors off the connectors on the power circuit

board.

9. Dispose of the circuit board and bracket.

M4 x 10 mm

T20 or F - 6.4 mm (0.25 in.)

2.3 N

•m (20 lb•in)
