Panel descriptions (on BRIDGE CAST X)
13
The dedicated driver must be installed when you use the “PC” setting.
âInstalling the BRIDGE CAST app and driver(P.16)
CONSOLE/MOBILE: when connecting to a video game console, iPad or iPhone
This lets you transmit and receive the following audio signals.
You can also connect a computer with the “CONSOLE/MOBILE” setting.
Audio input (source)
Audio output
CONSOLE/MOBILE
MIC (mic audio: not routed through a bus) or STREAM (STREAM MIX bus audio)
Set the audio to output via the USB port from “OUTPUT” Ó “USB OUT MODE (MOBILE/CONSOLE)” in
the menu screen of the
BRIDGE CAST
app.
6. HDMI THRU connector
Connect this to an external display or similar device. The video signal that’s input from the HDMI IN 1 and 2 connectors is
output as-is from this connector.
7. HDMI IN 1, 2 connectors
Connect devices here such as a video camera (SLR camera), a video game console, a mobile device (such as a smartphone) or
a computer.
Use an HDMI adapter cable to connect your mobile device.
8. Phantom power switch
Selects whether phantom power is supplied from this unit. Set this to “48 V” if you connect a condenser mic that requires a
phantom power supply to the MIC connector.
When connecting a dynamic mic or a condenser mic that operates on battery power, make sure to set the phantom power
switch to “OFF”. These types of mics may malfunction when supplied with phantom power.
9. LINE OUT jack (stereo mini type)
Connect this jack to your monitor speakers or other audio equipment. This jack is compatible with 3.5 mm stereo mini plugs.
Set the audio to output from “OUTPUT” Ó “LINE OUT MODE(P.70)” in the menu screen of the BRIDGE CAST app.
10. AUX jack (four-conductor stereo mini phone type)
Connect this to your tablet, smartphone or similar device. This jack is compatible with four-conductor (TRRS) 3.5 mm mini
plugs.
When you use a four-conductor mini plug cable, you can input the audio from your smartphone and output the mic audio
(mono mix) to your smartphone.
With a three-conductor mini plug, only audio input is available.

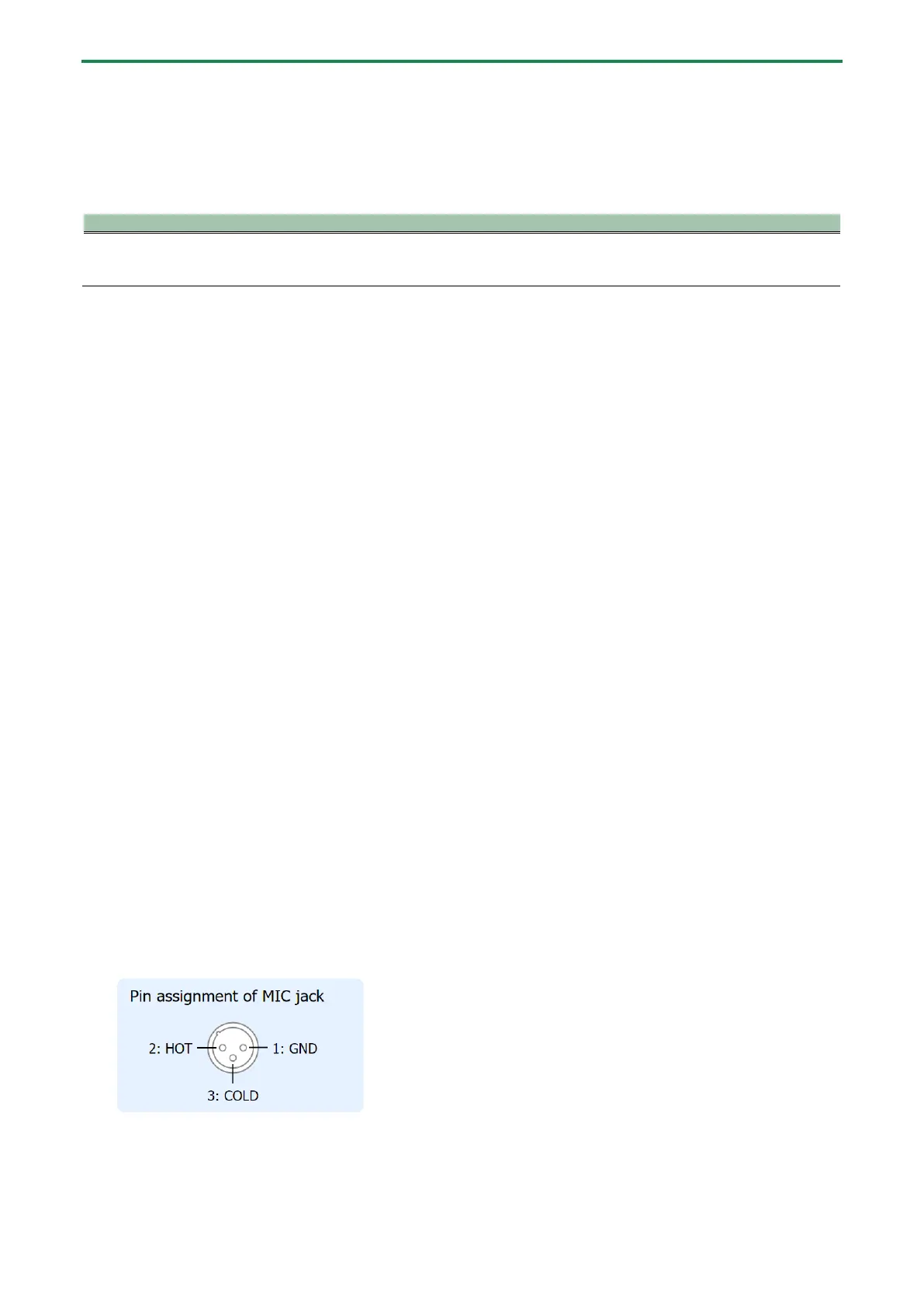

11. MIC connector (XLR)
Connect your microphone here. When a condenser mic that requires phantom power is connected, the MIC connector can
supply phantom power (+48 V).
Phantom power on this unit: DC 48 V, 6 mA max.
You must set the type of mic to be used and the input gain (sensitivity) in order to input audio from the mic.
âBRIDGE CAST app: Getting ready to use a mic(P.34)
âOperations on this unit: Selecting the type of mic to use(P.6), Adjusting the input gain (sensitivity) for the mic(P.7)
