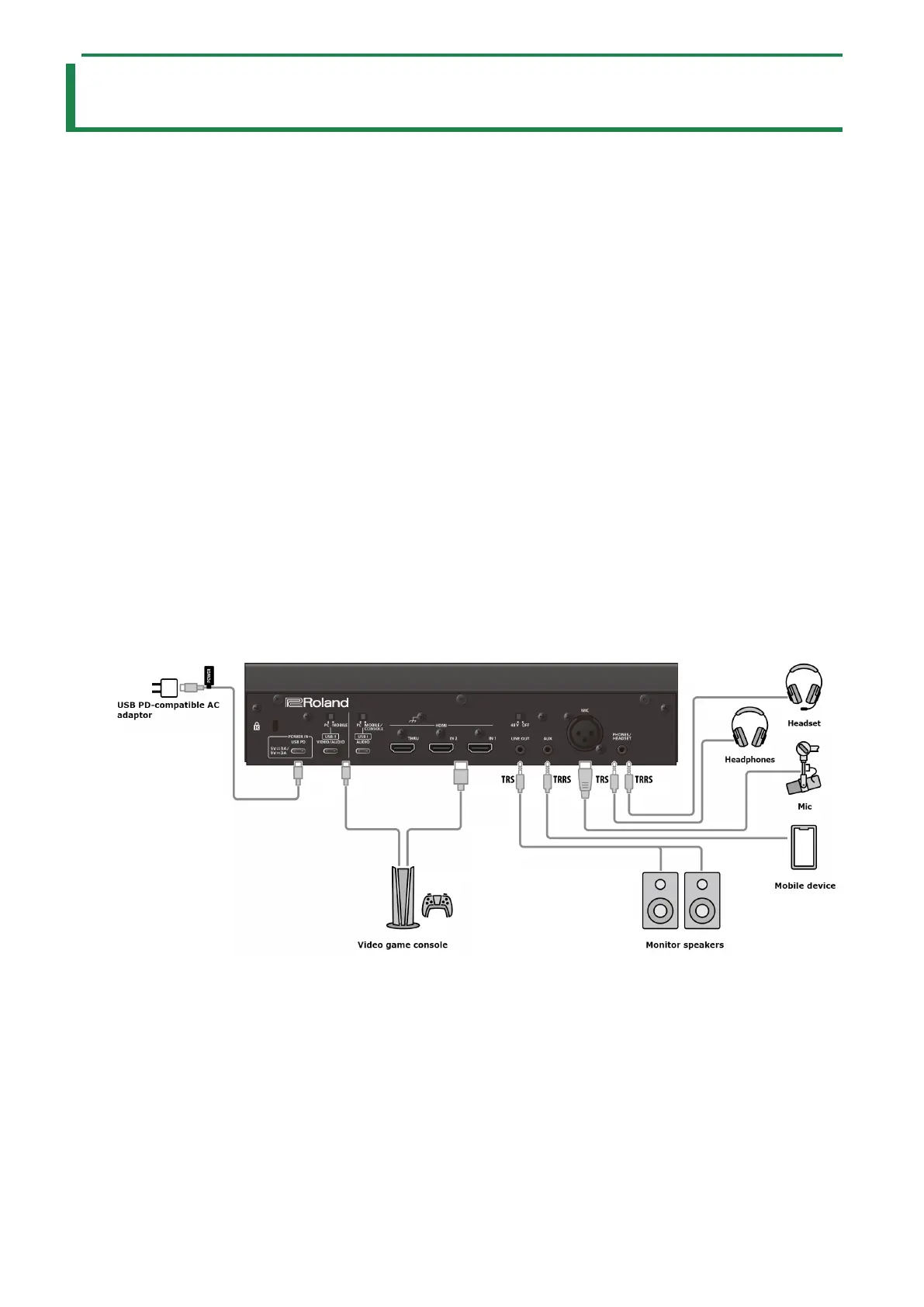

Connecting to a video game console
This is an example of how to connect the devices when you want to use your tablet or smartphone to have a voice chat while
listening to the sound of the game.
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any
connections.
* Before turning the unit on/off, always be sure to turn the volume down. Even with the volume turned down, you might hear
some sound when switching the unit on/off. However, this is normal and does not indicate a malfunction.
1.
Connect your mic, headphones or other external equipment to this unit.
2.
Connect your video game console to the USB I or USB II port.
When you want to import video along with audio, connect to the HDMI IN 1 or HDMI IN 2 connector with an HDMI adapter
cable (commercially available).
If you can configure the game audio and the voice chat audio on the video game console to be output separately (as with
the Sony PlayStation), set the game audio to be output to HDMI and the chat audio to be output to USB and then use the
respective separate cables to connect. This lets you adjust the volumes separately on this unit.
3.
Set the USB I or USB II connection settings switches to “MOBILE” or to “CONSOLE/MOBILE”, according to
the USB port you’re using.
4.
Turn on your external equipment.
5.
Adjust the volume on this unit to ensure a listenable volume balance while testing the sound from the
video game console, voice chat and
mic.
Mic audio input
You must set the type of mic to be used and the input gain (sensitivity) in order to input audio from the mic.
â Selecting the type of mic to use(P.34)
â Adjusting the input gain (sensitivity) for the mic(P.35)
