5. Perform the correction for misalignment in bidirectional printing.

Press to select [SET].
Press
to conrm your entry.
The test pattern of bidirectional correction is output.

When the screen shown on the left is displayed, press
.

Use and to set the correction value.
Press
to conrm your entry.

To conrm again/adjust again
Press
to select [YES].
Press
to conrm your entry.
The test pattern of bidirectional correction is output again. Go back
to step

and perform the setting again.
To go to the next step after correction is completed
Press
to select [DONE].
Press
to conrm your entry.
For the individual setting method and the description of this setting item, refer to the following section.

P. 91, "Correcting for Misalignment in Bidirectional Printing"
This machine prints by the bidirectional mode (in which the print heads perform printing during
both their outbound pass and return pass). This printing method is called "Bidirectional Printing." This
method oers the advantage of being able to shorten output times, but subtle misalignment occurs
during the outbound and return passes. The procedure to correct this and eliminate misalignment
is "Bidirectional Correction."

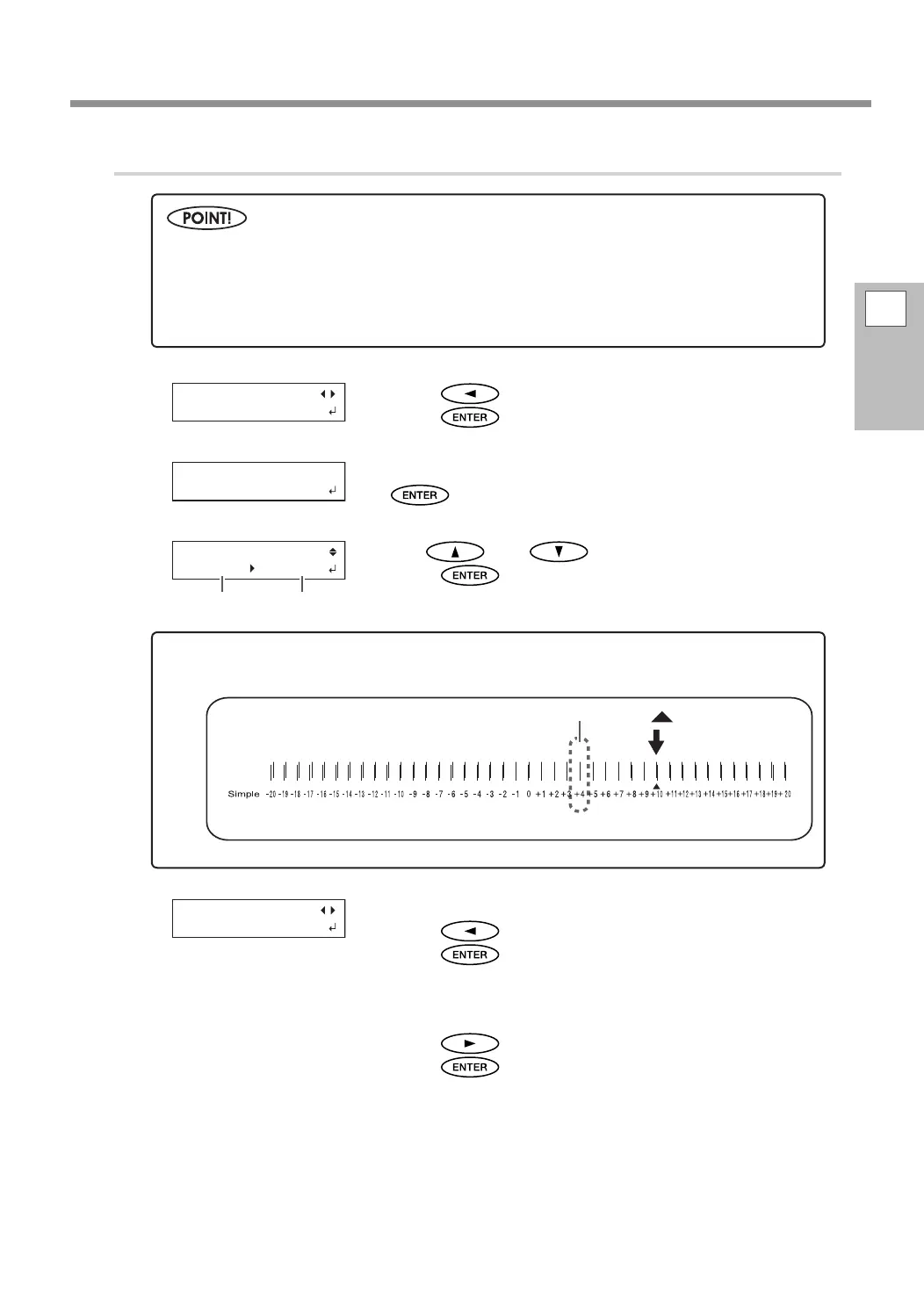

ADJUST BI-DIR.
[SET] NEXT
INPUT
ADJ. VALUES
ADJUST BI-DIR.
0 6
To decide a correction value
Choose the value that produces the least misalignment of the 2 lines.
REDO ADJ.?
[YES] DONE
Current cor-
rection value
Value to
be set
Correction-value
scale
The least misalignment
= Current
correction value
