Rosemount 2130

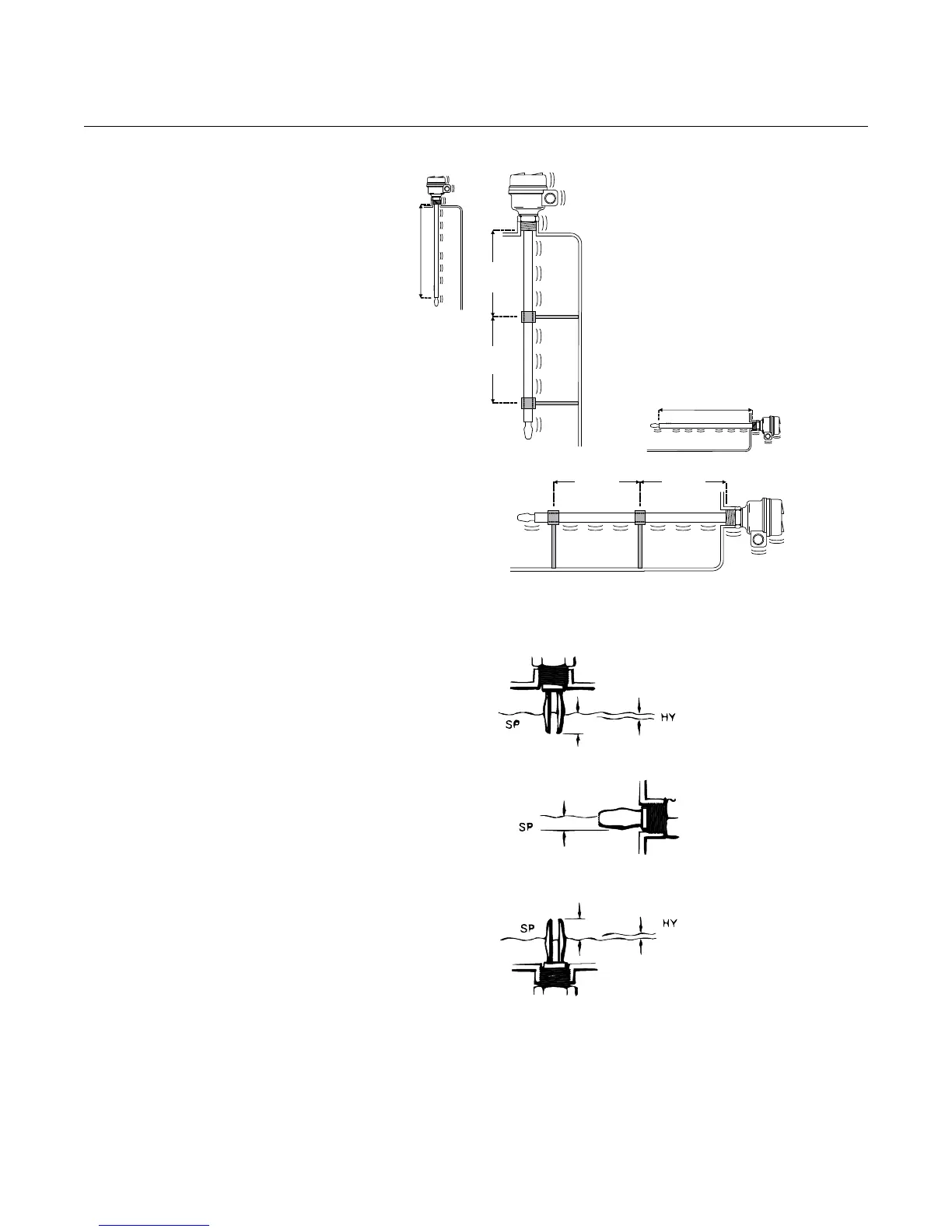

Figure 1-7. Support the Fork for
High Dynamic Loads.
Switchpoint
OK
OK
2130/2130_29BA.EPS
3.28 ft
(1.0 m)
3.28 ft
(1.0 m)
Max.
3.28 ft
(1.0 m)
3.28 ft
(1.0 m)
3.28 ft
(1.0 m)
Max.
3.28 ft
(1.0 m)
2130/FIG12.EPS
Switchpoint (H
2
0) (SP)
Switching hysteresis (HY)
±0.039-in. (±1 mm)
±0.039-in. (±1 mm)
0.5-in. (13 mm)
0.5-in. (13 mm)
0.5-in. (13 mm)
Note: a lower density
media will give a
switchpoint closer to the
connection.
A higher density media
will give a switchpoint
closer to fork tip.
