Rosemount 2130 - Spare Parts and Accessories

Reference Manual
00809-0100-4130, Rev AA
May 2009
Rosemount 2130
A-14
Spare Parts and Accessories
NOTE:
I.S. cassettes can only be replaced with I.S. cassettes. Non-I.S. cassette types can be interchanged with other non-I.S.
cassettes, but the new label must be fitted and the original part number transferred to the new label.

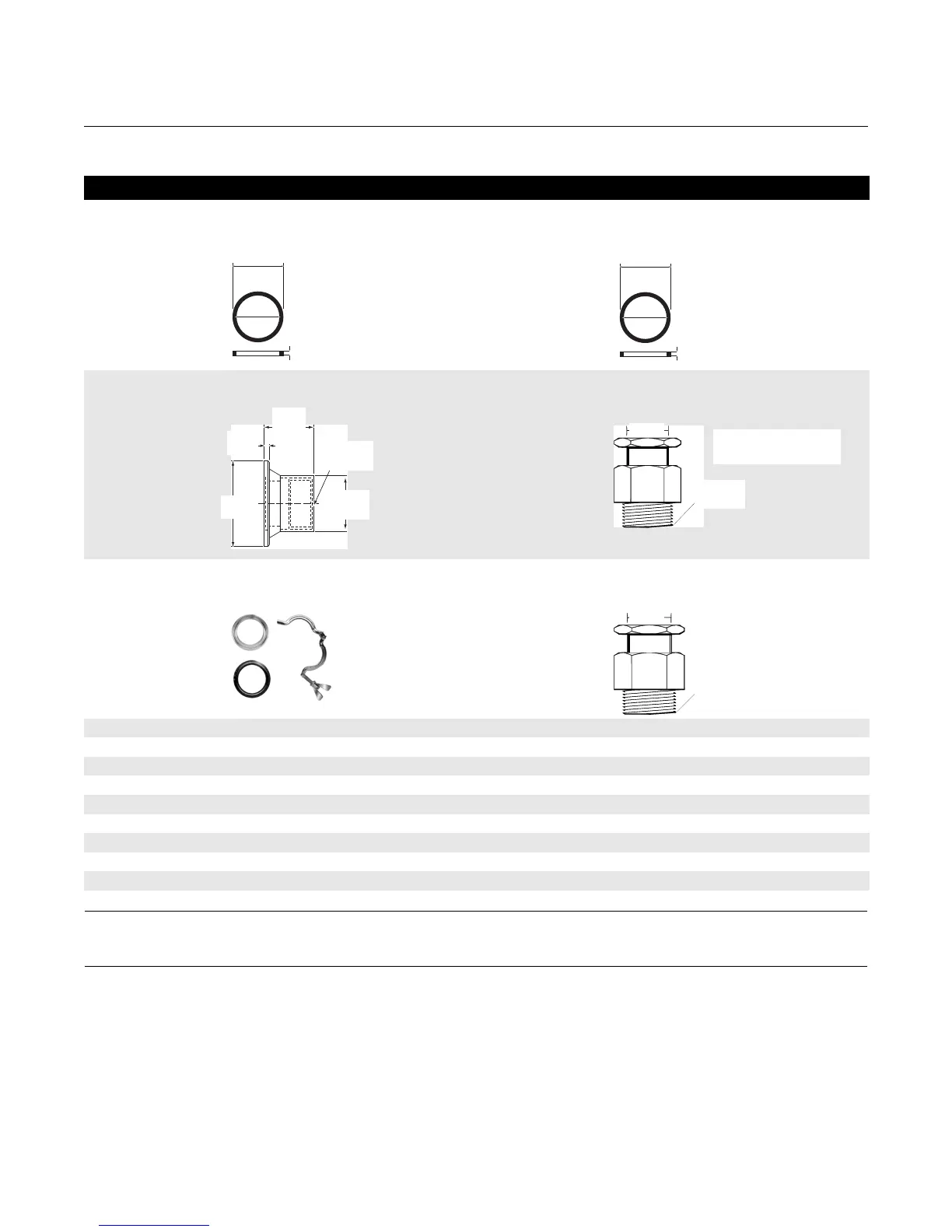

Part Number Spares and Accessories
02100-1000-0001 Seal for 1-in. BSPP (G1A).
Material: Non-asbestos BS7531 grade X
carbon fiber with rubber binder
02100-1040-0001
Seal for
3
/4-in. BSPP (G3/4A)
Material: Non-asbestos BS7531 grade X carbon
fiber with rubber binder.
02100-1010-0001 Hygienic adaptor boss 1-in. BSPP.
Material: 316 SS fitting. FPM/FKM ‘O’ ring
02120-2000-0001
Adjustable clamp gland for 1-in. extended
lengths. Note: It is not explosion-proof.
Material: 316 St. steel, (Si) Silicone rubber seal
02100-1020-0001 2-in. (51-mm) Tri-clamp kit including vessel
fitting, clamp ring, seal.
Material: 316 St. steel, NBR Nitrile
02120-2000-0002
Adjustable clamp gland for 1-in. extended
lengths. Note: It is not explosion-proof.
Material: 316 St. steel, (Si) Silicone rubber seal
02100-1030-0001 Telescopic test magnet
Replacement Cassettes Replacement Cassette for Electronic Type
02120-3100-0001 Direct load switching (Red) Code L
02120-3110-0001 PNP/PLC low voltage (Yellow) Code P
02120-3120-0001 NAMUR current switching (Blue) Code N
02120-3130-0001 Relay (DPCO) (Green) Code D
02120-3160-0001 Direct load switching, low density range selection (Red) Code L (for units with option LD)
02120-3170-0001 PNP/PLC low voltage, low density range selection (Yellow) Code P (for units with option LD)
02120-3180-0001 NAMUR current switching, low density range selection (Blue) Code N (for units with option LD)
1.54
(39)
1.30
(34)
0.12 (3)
1.26
(32)
1.04
(26.5)
0.08 (2)
1.20
(30.5)
1-in.
BSPP
2.36
(60)
0.18
(4.5)
1.54
(39)
1-in.
1
1
/2-in.
BSPP
P
max
= 1.3 barg
T
max
= 257°F (125°C)
1-in.
1
1
/2-in.
NPT
P
max
= 1.3 barg
T
max
= 257°F (125°C)
