Rosemount 2130 - 2130 Flange Mounting (Standard Length; 2130 Flange Mounting (Standard Length)

Reference Manual
00809-0100-4130, Rev AA
May 2009
A-7
Rosemount 2130

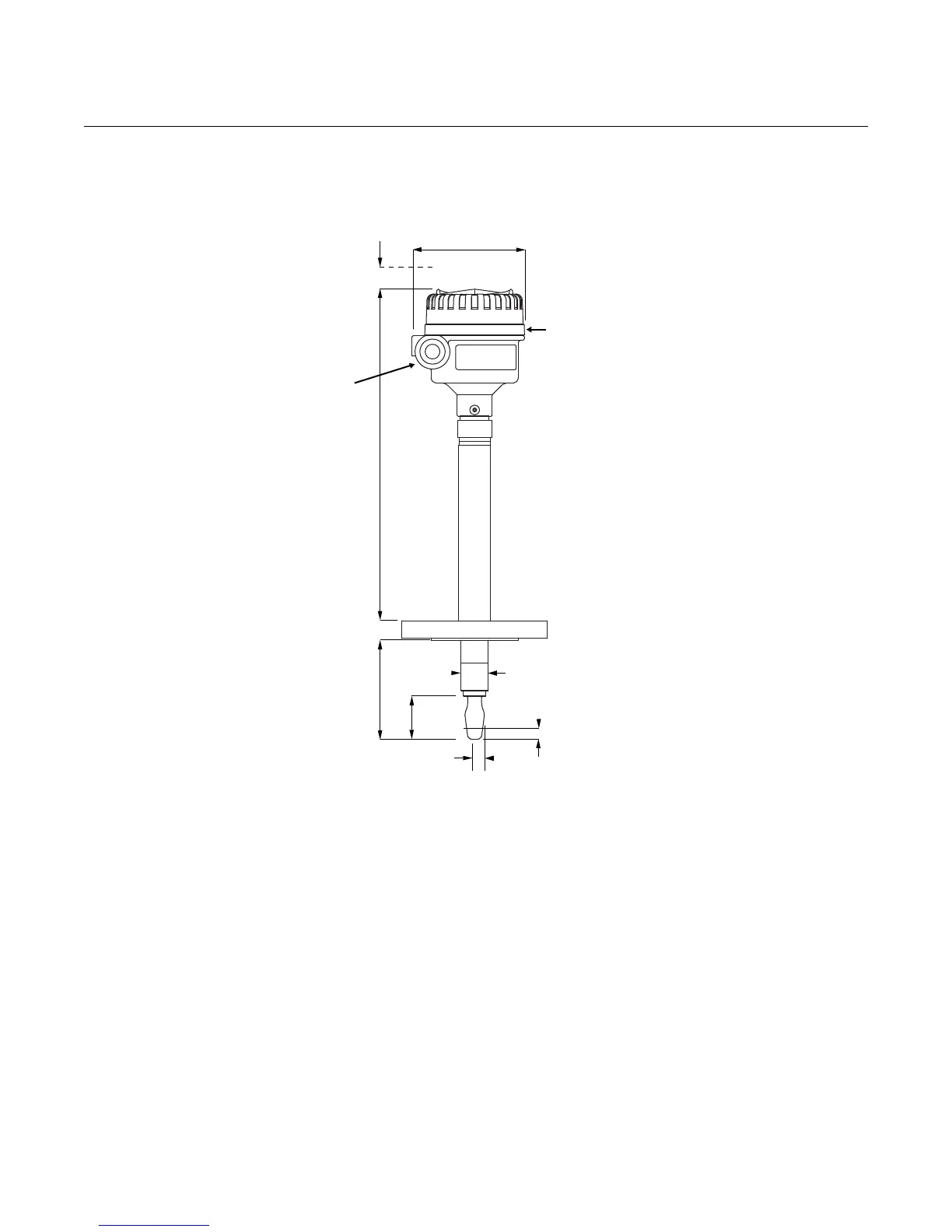

2130 Flange Mounting (Standard Length)
Note: Dimensions are in inches (millimeters)
Aluminum
or SST
Housing
13.2
(335)
Cable Entry
M20x1.5 or
3
/4-in. NPT
1.73
(44)
4
(102)
2130_METAL_HOUSING_STD_FLANGE.EPS
0.51 (13)
Switchpoint (When
Mounted Horizontally)
1.14 (29) for 1-in. Thread
0.9 (23) for
3
/4-in. Thread
0.51 (13)
Switchpoint (When
Mounted Vertically)
4.7 (120)
Allow 1.2 (30)
To Remove Lid
