Rosemount 2130 - 2130 Hygienic Fitting (Extended Length; 2130 Hygienic Fitting (Extended Length)

Reference Manual
00809-0100-4130, Rev AA
May 2009
Rosemount 2130
A-10

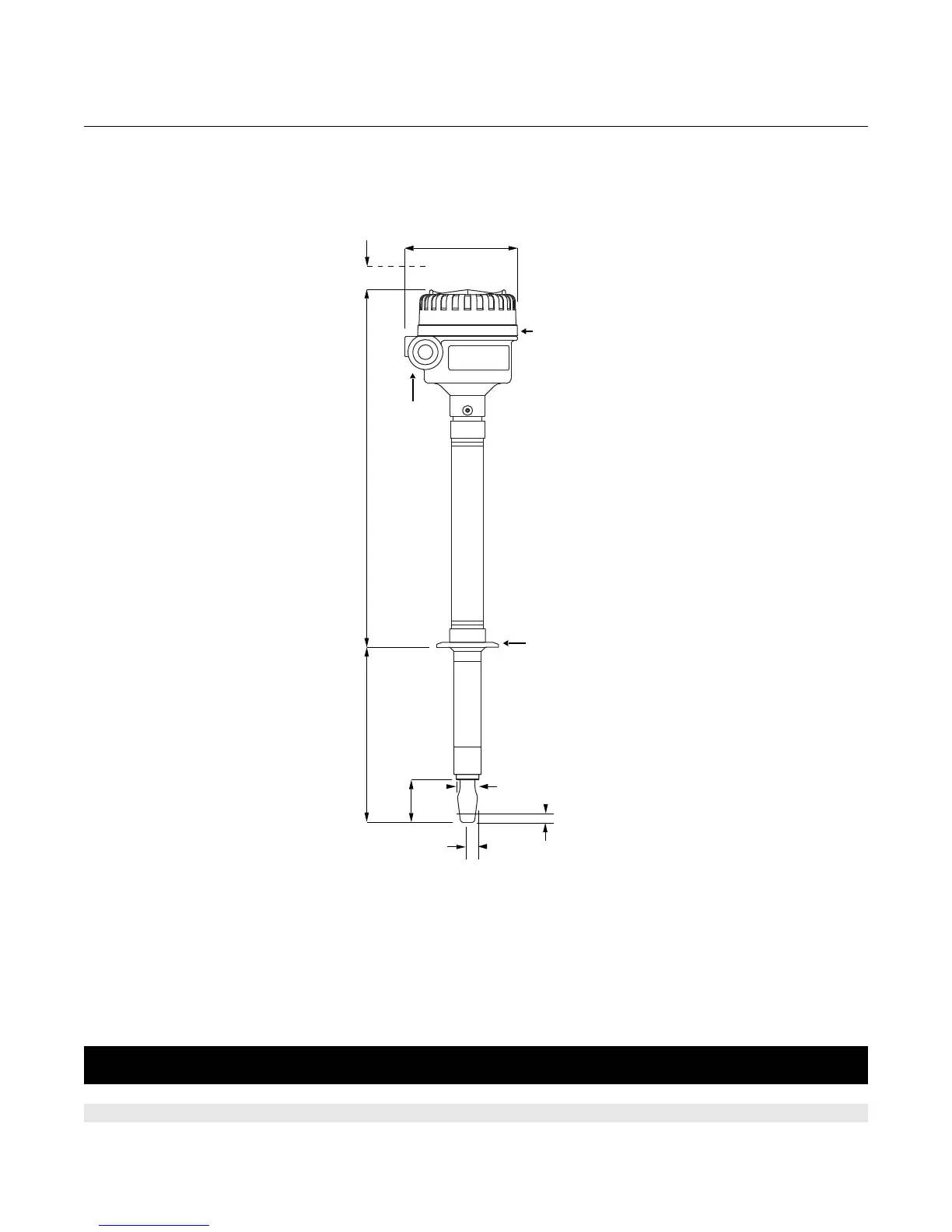

2130 Hygienic Fitting (Extended Length)
TABLE 3. Hygienic Fitting Fork Length
Process
Connection
Standard Length
Fork Length Code H
Minimum Length
Fork Length Code E(M)
Maximum Length
Fork Length Code E(M)
(1)
(1) Maximum extended length of fork with hand-polished option is 39.4 in. (1000 mm).
Tri-Clamp
4.0-in. (102 mm) 4.1 in. (105 mm) 118.1 in. (3000 mm)
1-in. Threaded 4.0-in. (102 mm) 3.7 in. (94 mm) 118.1 in. (3000 mm)
Note: Dimensions are in inches (millimeters)
1.14
(29)
1.73
(44)
1
/2-in. (38)
2-in. (51)
Tri-Clamp
Cable Entry
M20x1.5 or
3
/4-in. NPT
Aluminum
or SST
Housing
E(M)
2130_METAL_HOUSING_EXTENDED_HYGIENE.EPS
0.51 (13)
Switchpoint
(When Mounted
Vertically)
0.51 (13)
Switchpoint (When
Mounted Horizontally)
4.7 (120)
Allow
1.2 (30)
For Lid
14.2
(360)
