Reference Manual
00809-0100-4130, Rev AA
May 2009
Rosemount 2130
3-2

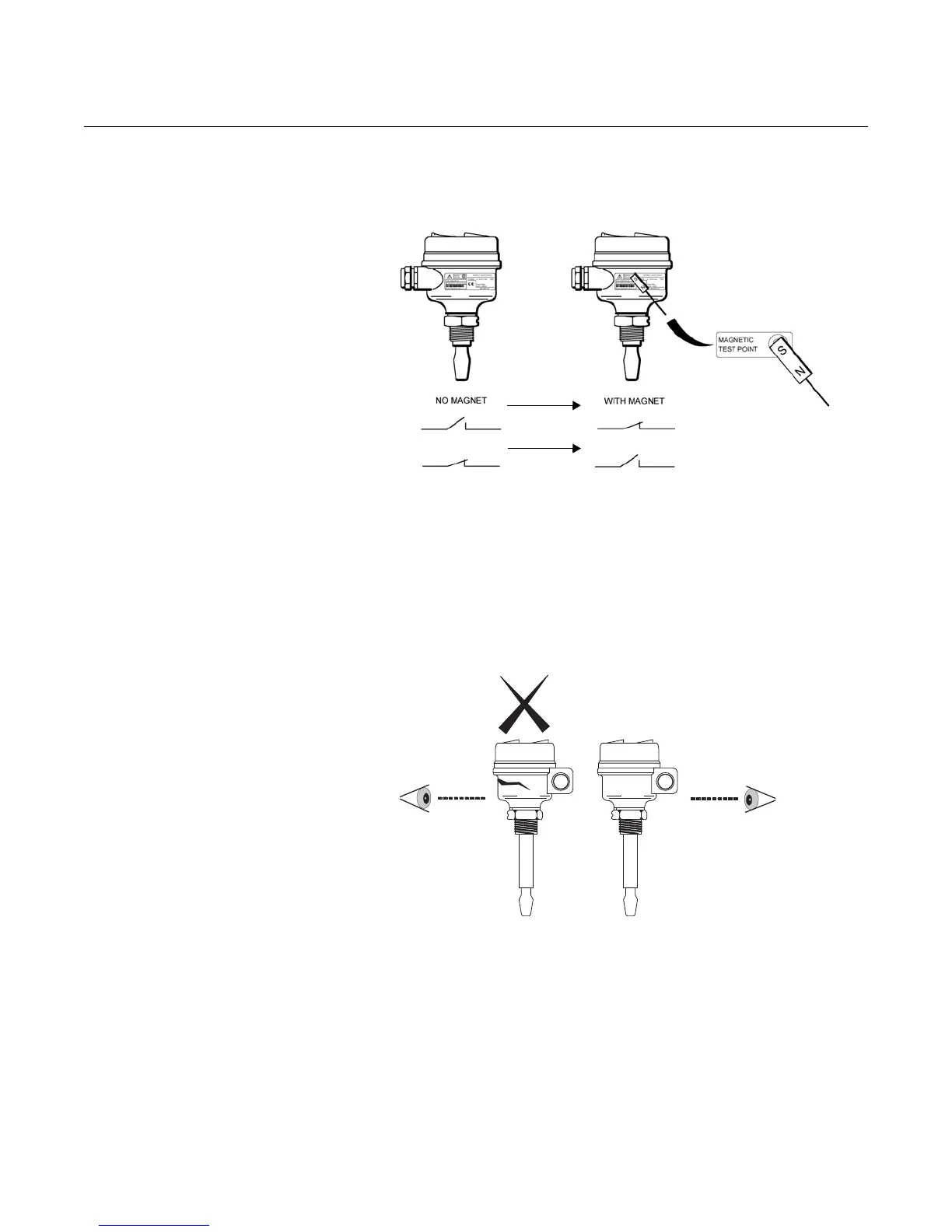

MAGNETIC TEST POINT A magnetic test-point is on the side of the housing, allowing a functional test
of the 2130. By touching a magnet on the target, the output will change state
for as long as the magnet is present.
INSPECTION • Visually examine the 2130 for damage.
If it is damaged, do not use
• Ensure the lid and cable glands are fitted securely
• Fit a suitably rated blanking plug where required
• Ensure the LED flash rate is 1 Hz or continually on. If anything else is
demonstrated see “LED Indication” on page 2-5
