Rosemount 2130 - 2130 Flange Mounting (Extended Length; 2130 Flange Mounting (Extended Length)

Reference Manual
00809-0100-4130, Rev AA
May 2009
Rosemount 2130
A-8

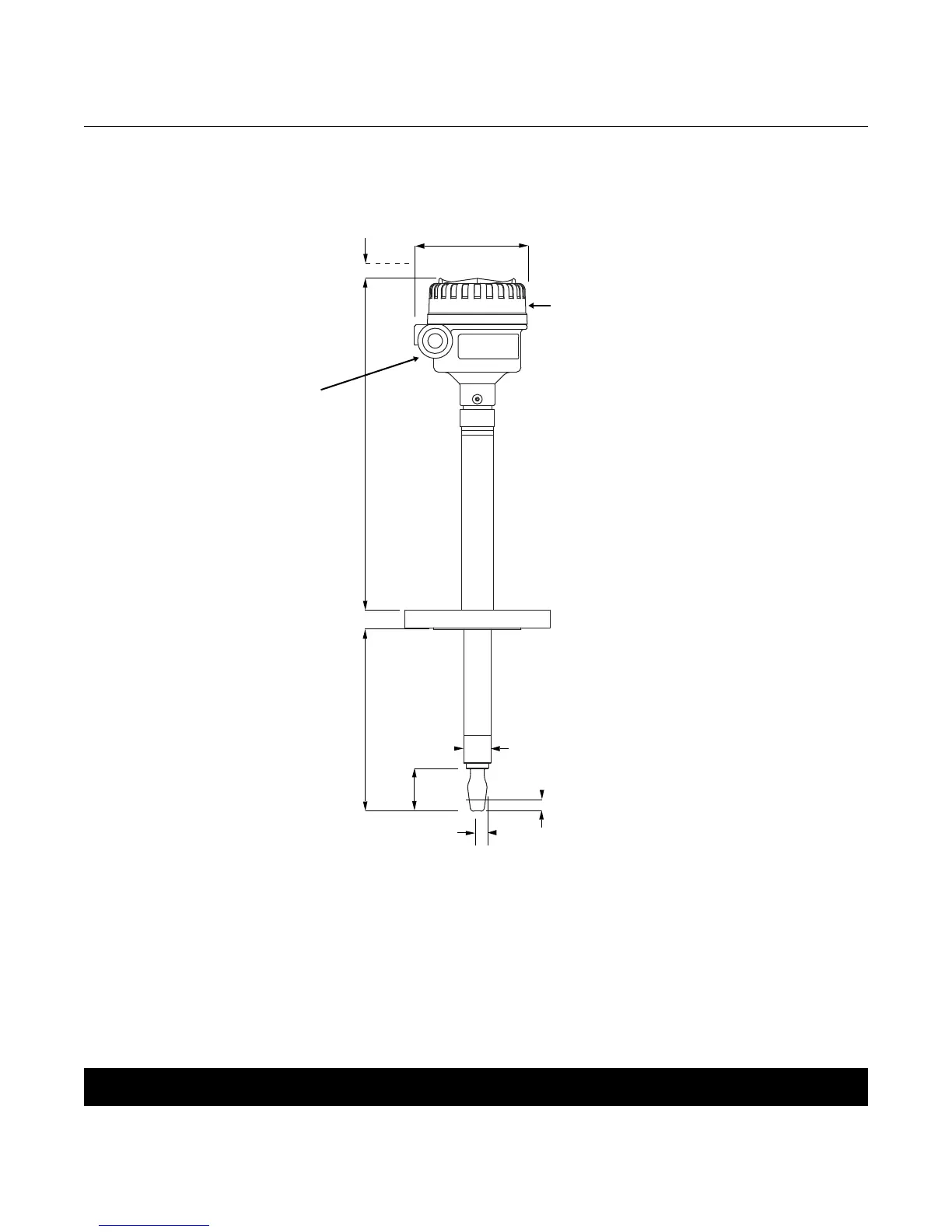

2130 Flange Mounting (Extended Length)
TABLE 2. Flange Mounting Fork Length
Process
Connection
Standard Length
Fork Length Code H
Minimum Length
Fork Length Code E(M)
Maximum Length
Fork Length Code E(M)
(1)
(1) Maximum extended length of fork with hand-polished option is 39.4 in. (1000 mm).
3
/4 in, 1 in. or larger flange
4.0-in. (102 mm) 3.7 in. (94 mm) 118.1 in. (3000 mm)
Note: Dimensions are in inches (millimeters)
Aluminum
or SST
Housing
Cable Entry
M20x1.5 or
3
/4-in. NPT
1.73
(44)
13.2
(335)
E(M)
2130_METAL_HOUSING_EXTENDED_FLANGE.EPS
0.51 (13)
Switchpoint (When
Mounted Horizontally)
1.14 (29) for
1-in. or Larger Flange
0.9 (23) for
3
/4-in. Flange
0.51 (13)
Switchpoint (When
Mounted Vertically)
4.7 (120)
Allow 1.2 (30)
To Remove Lid
