Rosemount 2130 - 2130 Thread Mounting (Extended Length; 2130 Thread Mounting (Extended Length)

Reference Manual
00809-0100-4130, Rev AA
May 2009
Rosemount 2130
A-6

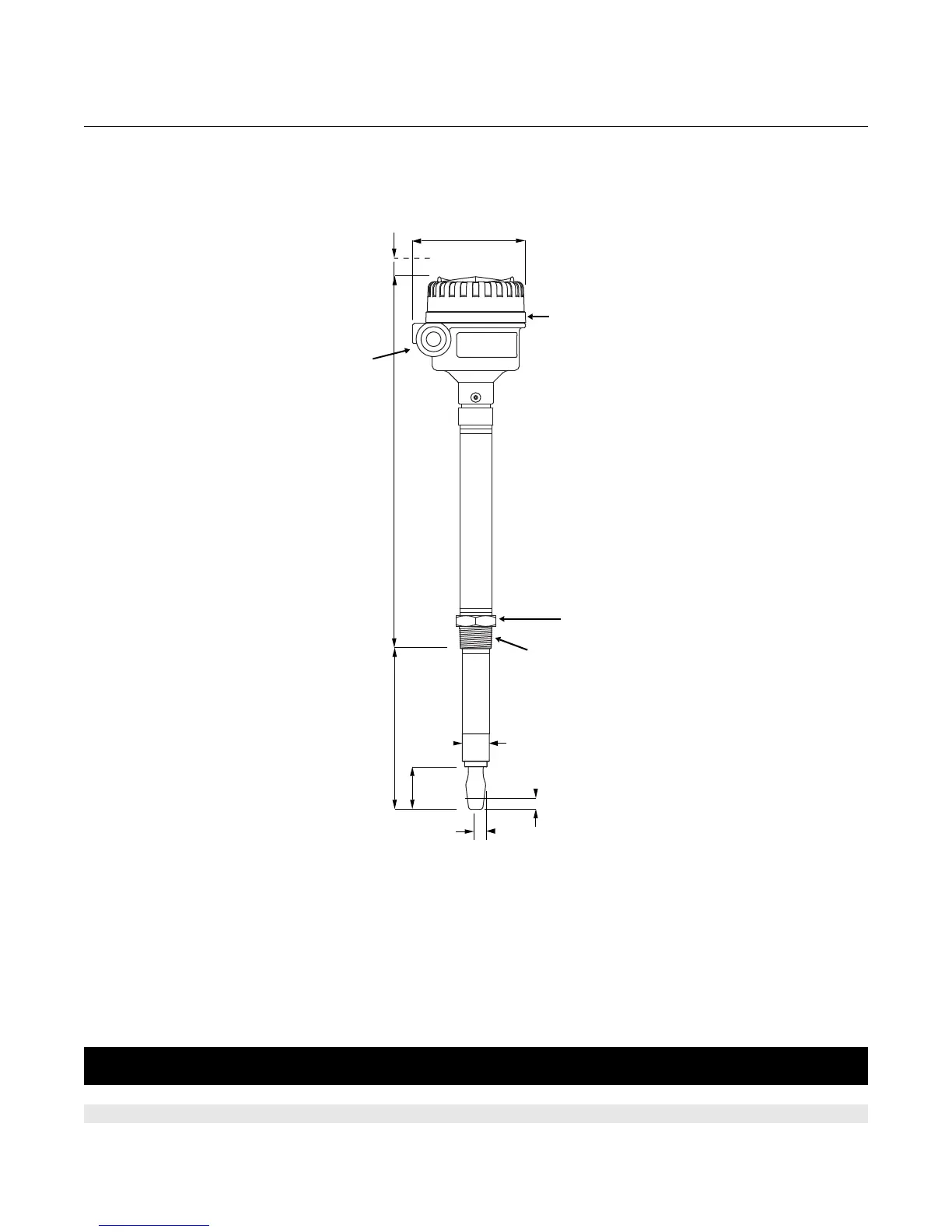

2130 Thread Mounting (Extended Length)
TABLE 1. Thread Mounting Fork Length
Process
Connection
Standard Length
Model Code A
Minimum Length
Model Code E (M)
Maximum Length
Model Code E (M)
(1)
(1) Maximum extended length of fork with hand-polished option is 39.4 in. (1000 mm).
3
/4-in. Thread
1.73 in. (44 mm) 3.8 in. (95 mm) 118.1 in. (3000 mm)
1-in. Thread 1.73 in. (44 mm) 3.7 in. (94 mm) 118.1 in. (3000 mm)
1.575 (40) A/F
Hexagon
Aluminum
or SST
Housing
3
/4-in. or 1-in.
Thread
E(M)
1.73
(44)
Cable Entry
M20x1.5 or
3
/4-in. NPT
Note: Dimensions are in inches (millimeters)
2130_METAL_HOUSING_EXTENDED_THREAD.EPS
0.51 (13)
Switchpoint (When
Mounted Horizontally)
0.51 (13)
Switchpoint (When
Mounted Vertically)
13.8
(350)
4.7 (120)
Allow 1.2 (30)
To Remove Lid
1.14 (29) for 1-in. Thread
0.9 (23) for
3
/4-in. Thread
