Reference Manual
00809-0100-4130, Rev AA
May 2009
2-7
Rosemount 2130

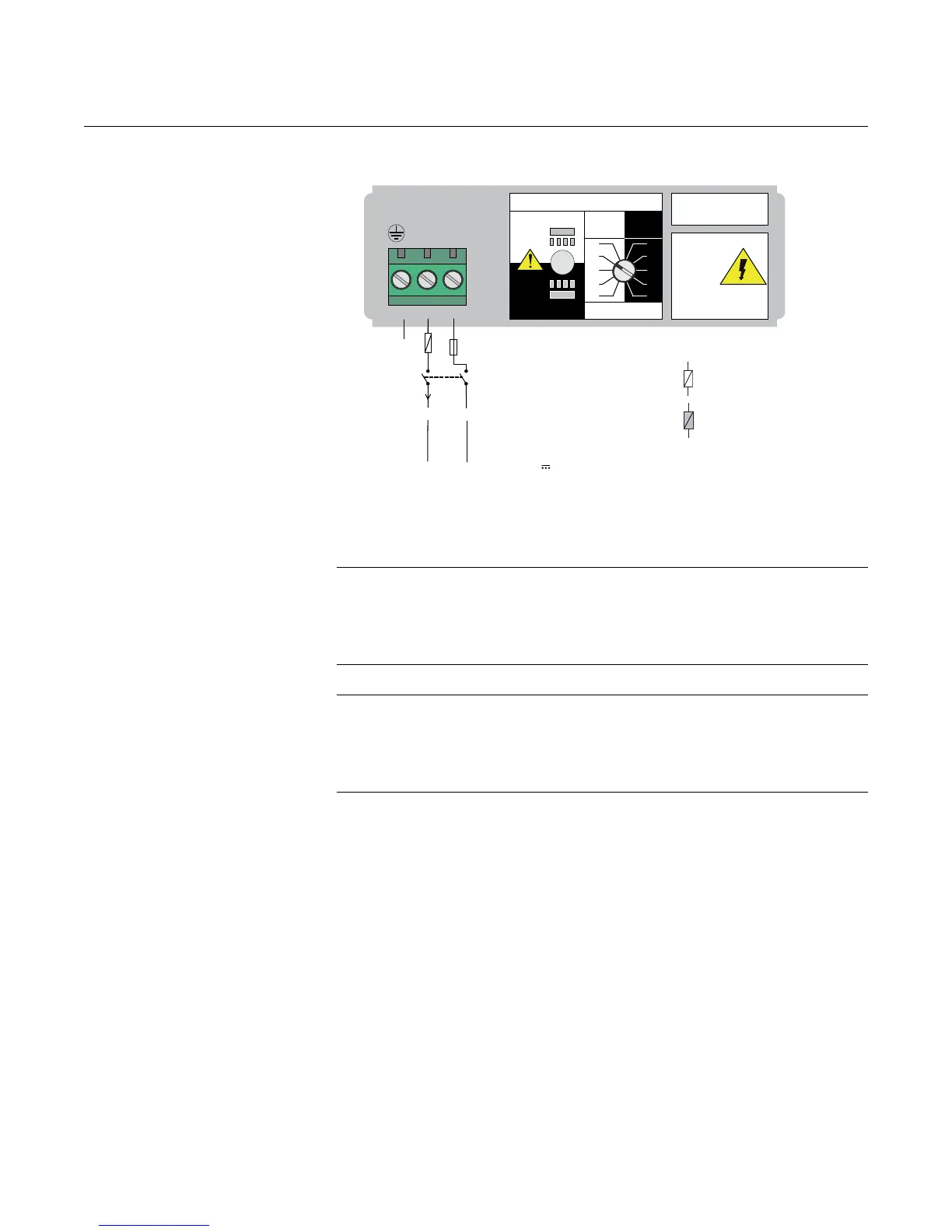

Direct Load Switching
Cassette
• Direct load switching (2-wire, Red label)
NOTE:
A DPST (Double Pole, Single Throw) on/off switch must be installed to safely
disconnect the power supply. Install the DPST switch as close as possible to
the Rosemount 2130. Keep the DPST switch free of obstructions and label
the DPST switch to indicate it is the supply disconnection device for the 2130.
RELAY CONNECTION WARNING:
The Rosemount 2130 requires a minimum current of 3 mA, which continues
to flow when the output is ‘off’. If selecting a relay to wire in series with the
2130, ensure the drop-out voltage of the relay is greater than the voltage
generated across the relay coil.
Direct Load
Switching
WARNING
Isolate Supply
Before Removing
OPERATION MODE
Dry On Mode
Dry
Wet
Wet On Mode
Dry
Wet
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
123
LINELOAD
PE
(Ground)
Neutral
Live
0V
+V
Fuse 2A(T)
R
I
L
R = External load (must be fitted)
U = 20 - 264V ~ (ac) (50/60Hz)
I
OFF
< 3mA
I
L
= 20 - 500mA
î = 5A, decreasing exponentionally to 0.5A after 100ms,
U = 20 - 60V (dc)
I
OFF
< 3mA
I
L
= 20 - 500mA
î =
DPST
suitable for tungsten lamp loads
5A, decreasing exponentionally to 0.5A after 100ms,
suitable for tungsten lamp loads
To Next Page
