Rosemount 2130 - Dimensional Drawings

Reference Manual
00809-0100-4130, Rev AA
May 2009
A-5
Rosemount 2130
DIMENSIONAL
DRAWINGS
2130 Thread Mounting (Standard Length). . . . . . . . . . . . . . . page A-5
2130 Thread Mounting (Extended Length) . . . . . . . . . . . . . . page A-6
2130 Flange Mounting (Standard Length) . . . . . . . . . . . . . . . page A-7
2130 Flange Mounting (Extended Length) . . . . . . . . . . . . . . page A-8
2130 Hygienic Fitting (Standard Length) . . . . . . . . . . . . . . . . page A-9
2130 Hygienic Fitting (Extended Length). . . . . . . . . . . . . . . . page A-10

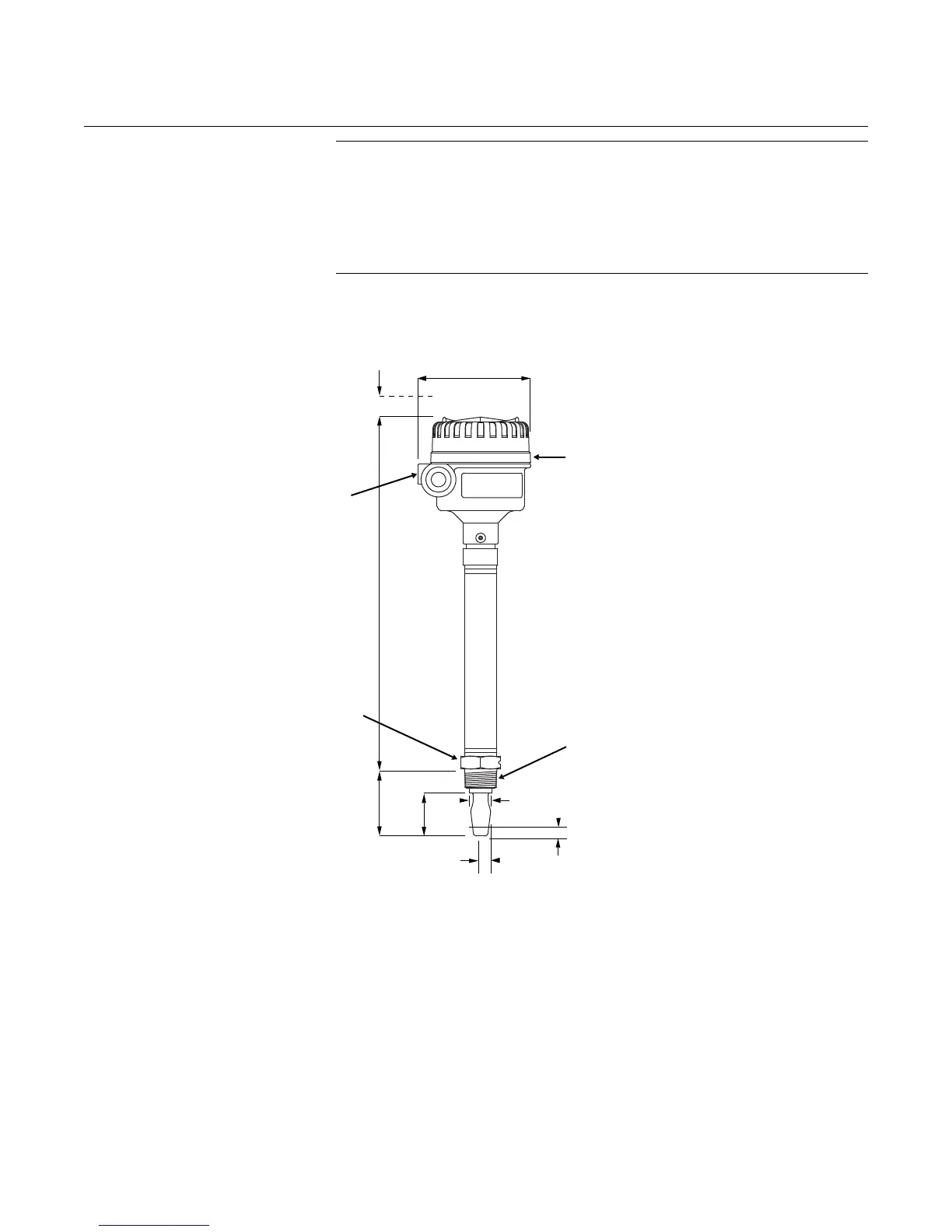

2130 Thread Mounting (Standard Length)
1.575 (40) A/F
Hexagon
Aluminum or
SST Housing
0.51 (13)
Switchpoint (When
Mounted Horizontally)
0.51 (13)
Switchpoint (When
Mounted Vertically)
3
/4-in. or 1-in.
Thread
13.8
(350)
4.7 (120)
0.9 (23) for
3
/4-in. Thread
1.14 (29) for 1-in. Thread
1.73
(44)
Cable Entry
M20x1.5 or
3
/4-in. NPT
Note: Dimensions are in inches (millimeters)
2130_METAL_HOUSING_STD_THREAD.EPS
2.8
(70)
Allow 1.2 (30)
To Remove Lid
