Rosemount 2130 - Mechanical Installation; Correct Fork Alignment

Reference Manual
00809-0100-4130, Rev AA
May 2009
Rosemount 2130
2-2
MECHANICAL
INSTALLATION

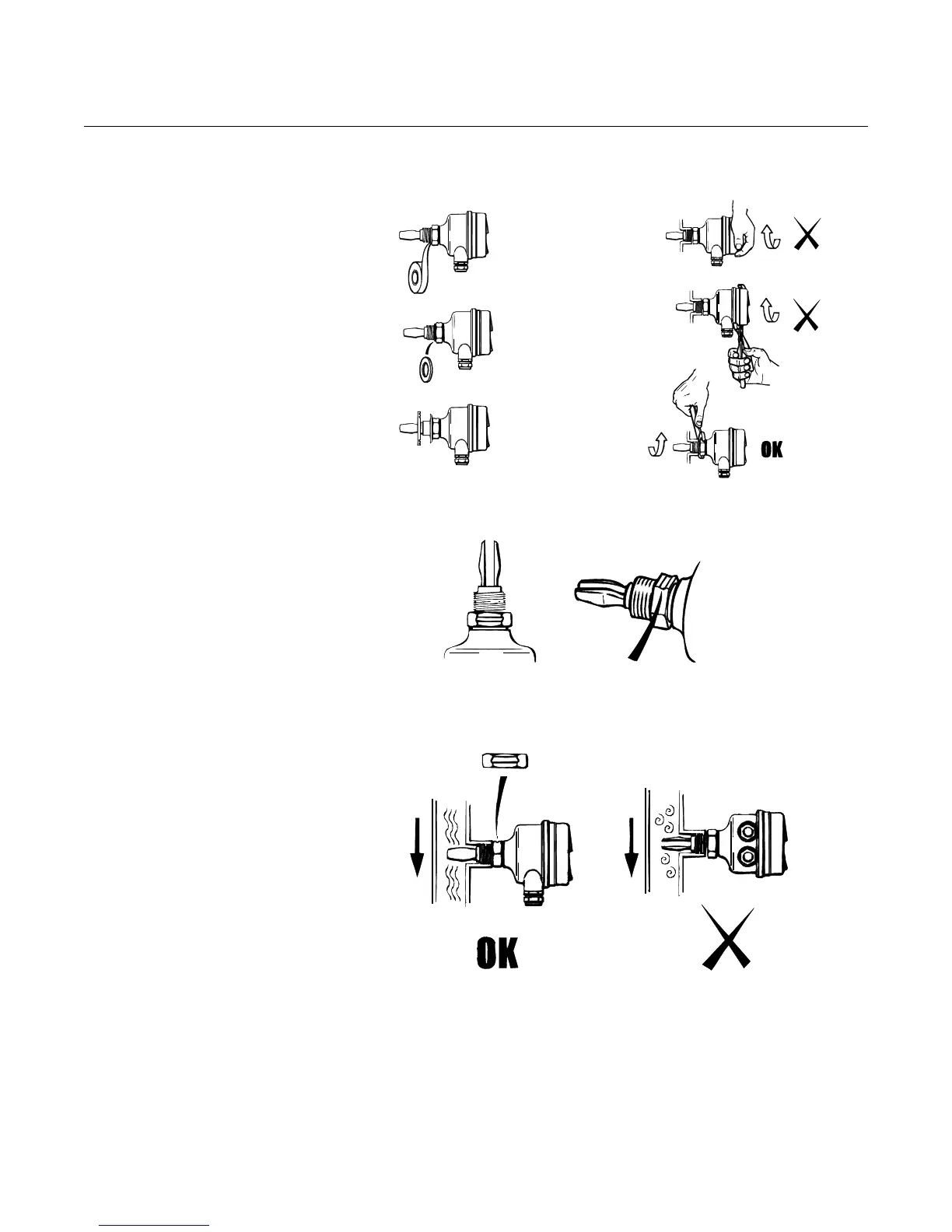

CORRECT FORK
ALIGNMENT
Ensure correct fork alignment.
Pipe Installation
Figure 2-1. Sealing Figure 2-2. Tighten the Switch
PTFE
(Teflon)
Gasket
Seal (supplied in
02100-1020-0001)
NPT,
BSPT
(R)
thread
BSPP
(G)
thread
Tri-
Clamp
2130/FIG3, FIG4.EPS
2130/FIG6.EPS
Alignment
groove
2130/FIG7.EPS
