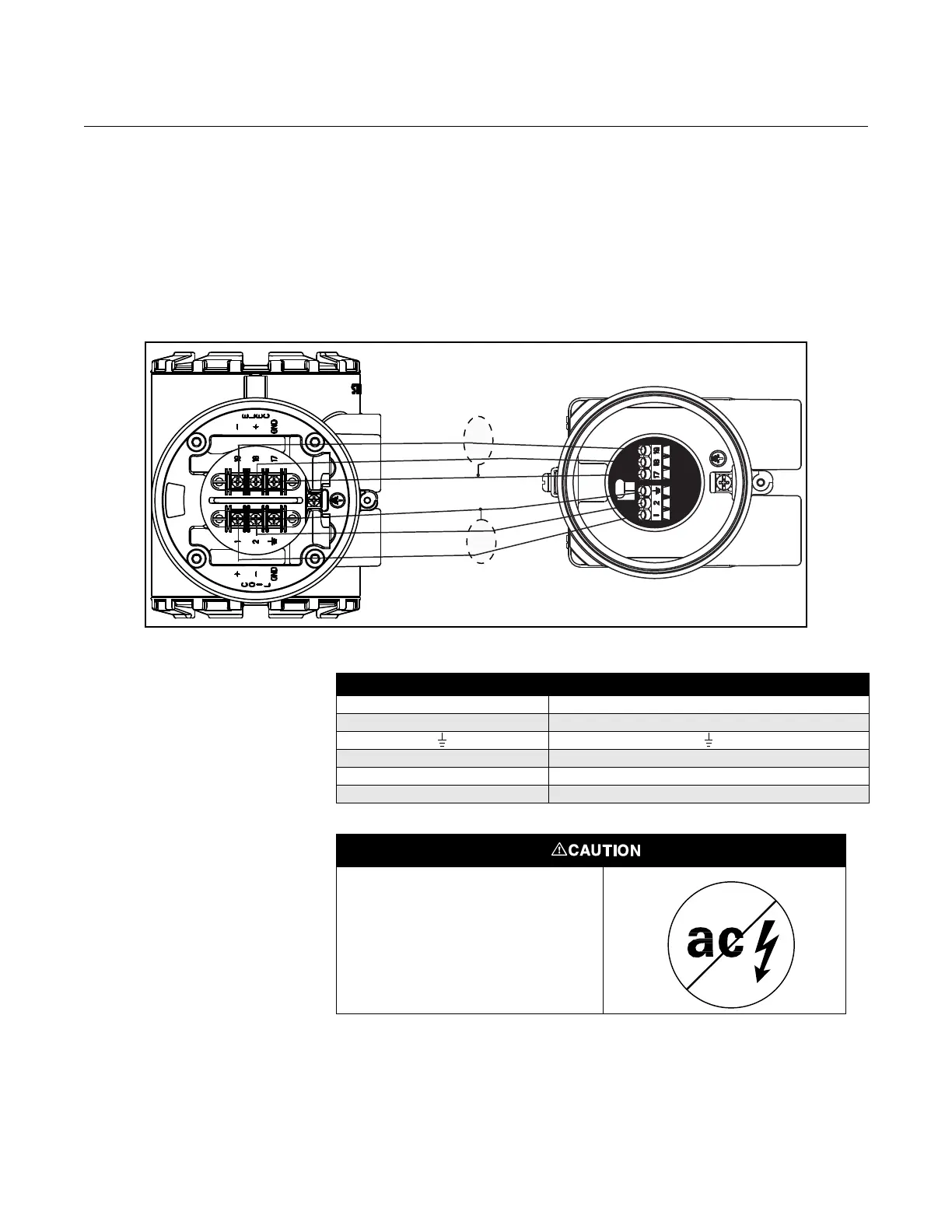

Connect coil drive and electrode cables as shown in Figure .
Figure E-1. Wiring Diagram to a
Rosemount 8732 Transmitter
Table E-2. Rosemount
8705/8707/8711/8721 Sensor
Wiring Connections
Rosemount 8732 Transmitters Rosemount 8705/8707/8711/8721 Sensors
11
2 2
17 17
18 18
19 19
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
