Reference Manual
00809-0100-4663, Rev BA
January 2010
Rosemount 8732
E-20
KENT SENSORS Connect coil drive and electrode cables as shown in Figure E-17.
Kent Sensor to
Rosemount 8732
Transmitter

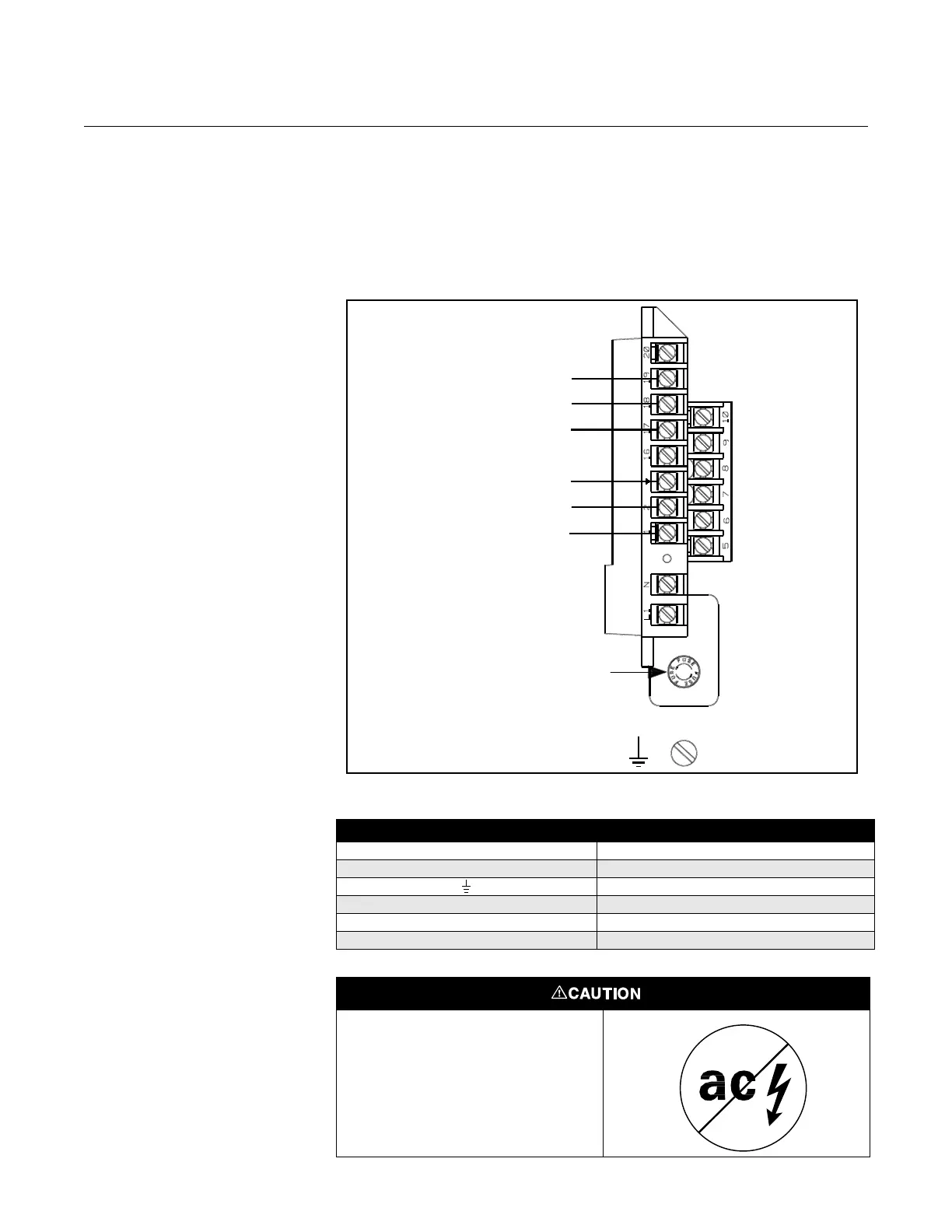

Figure E-17. Generic Wiring
Diagram for Kent Sensors and
Rosemount 8732
Table E-18. Kent Sensor
Wiring Connections
Coils
Electrodes
SCR OUT
ROSEMOUNT 8732
TRANSMITTER
KENT SENSORS
2
1
SIG2
SIG1
SCR OUT
Fuse
Rosemount 8732 Kent Sensors
11
2 2
SCR OUT
17 SCR OUT
18 SIG1
19 SIG2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
