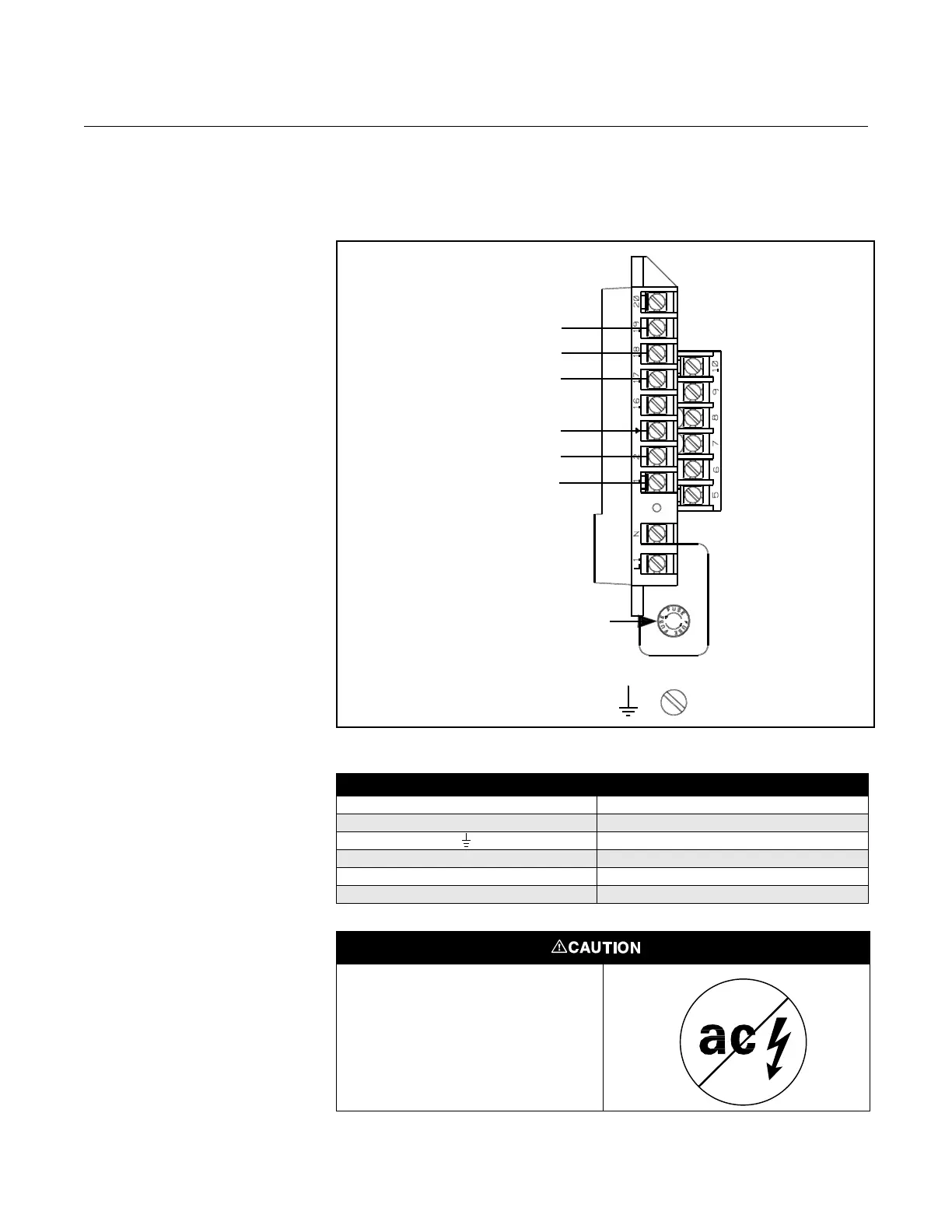

Connect coil drive and electrode cables as shown in Figure E-15.
Figure E-15. Generic Wiring
Diagram for Foxboro Sensors
and Rosemount 8732
Table E-16. Foxboro Sensor
Wiring Connections
Electrodes
Coils
Ground
ROSEMOUNT 8732
TRANSMITTER
FOXBORO
SENSOR
L2
L1
White
Black
Any Shield
Fuse
Rosemount 8732 Foxboro Sensors
1L1
2 L2
Chassis Ground
17 Any Shield
18 Black
19 White
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
