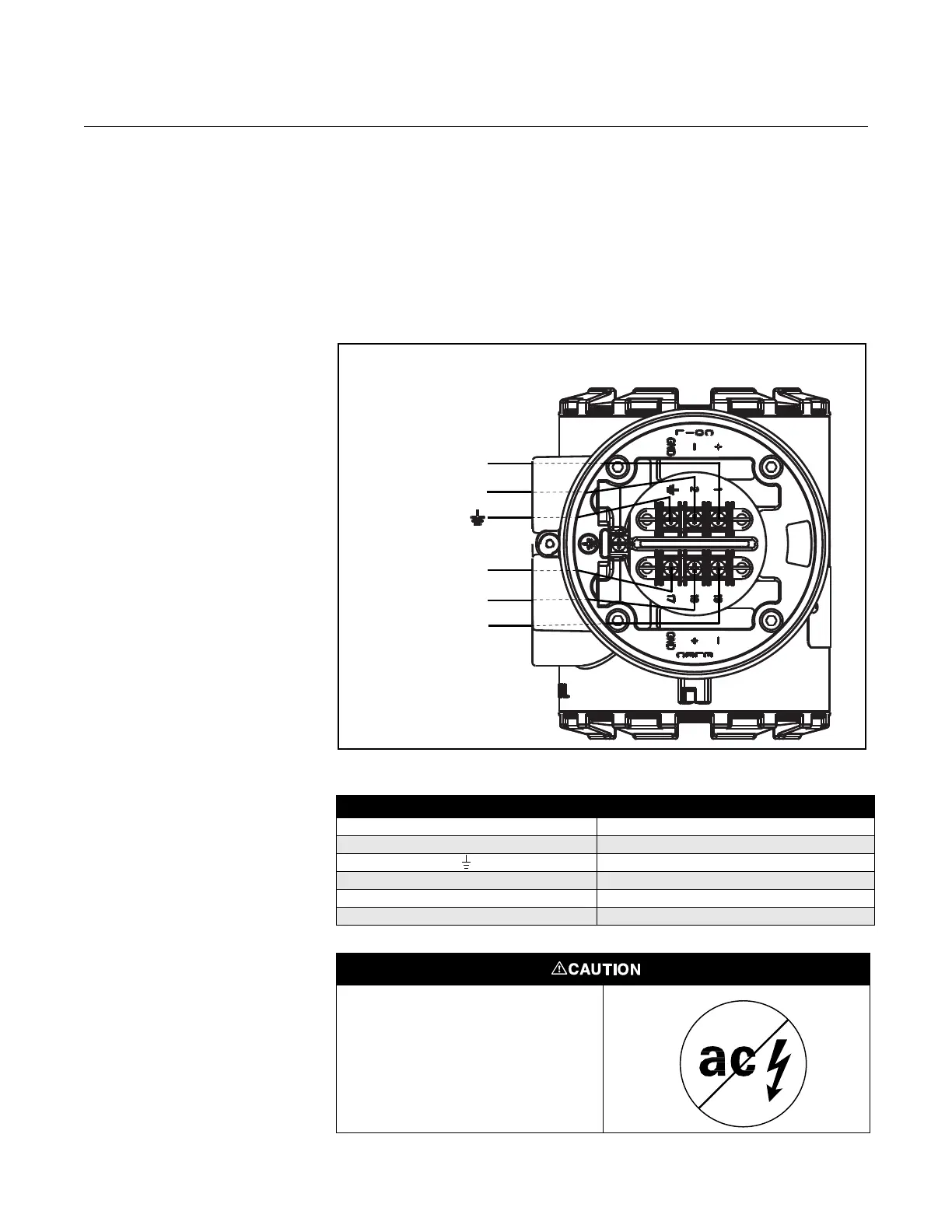

Connect coil drive and electrode cables as shown in Figure E-5.
Endress and Hauser
Sensor to
Rosemount 8732
Transmitter
Figure E-5. Wiring Diagram for
Endress and Hauser Sensors
and Rosemount 8732
Table E-6. Endress and Hauser
Sensor Wiring Connections
41
42
4
5
7
Electrodes
Coils
ROSEMOUNT 8732
TRANSMITTER
ENDRESS AND HAUSER
SENSORS
Rosemount 8732 Endress and Hauser Sensors
141
2 42
14
17 4
18 5
19 7
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
